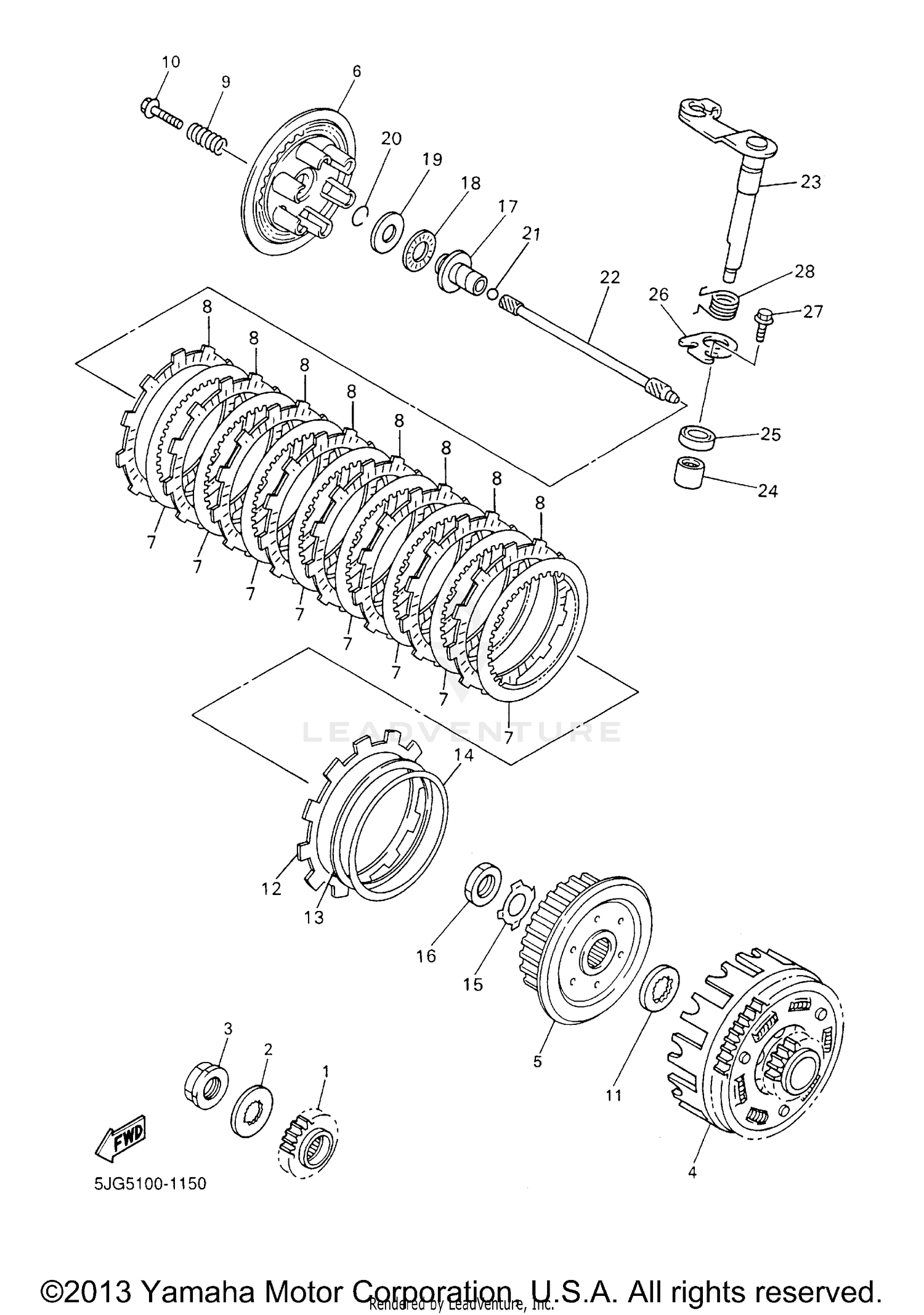

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
5JG-16111-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, LOCK
90215-21001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-20001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRIMARY DRIVEN GEAR COMP.
5JG-16150-10-00
|
$366.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOSS, CLUTCH
5JG-16371-10-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, PRESSURE 1
5JG-16351-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
5JG-16325-00-00
Superseded by 5JG-16325-10-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
PLATE, FRICTION
3XK-16321-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-237L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, WITH WASHER
90159-06092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, THRUST 1
2JN-16154-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, FRICTION
5JG-16321-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING.,CUSHION
5JG-16383-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, SEAT
5JG-16384-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, LOCK
90215-20231-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-20327-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 1
5JG-16356-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93340-21505-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-125L6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
93440-10085-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD, PUSH 2
5JG-16357-10-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PUSH LEVER COMP.
5JG-16381-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93317-11287-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-12224-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, SEAT
4JT-16384-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING, TORSION
90508-142B5-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
