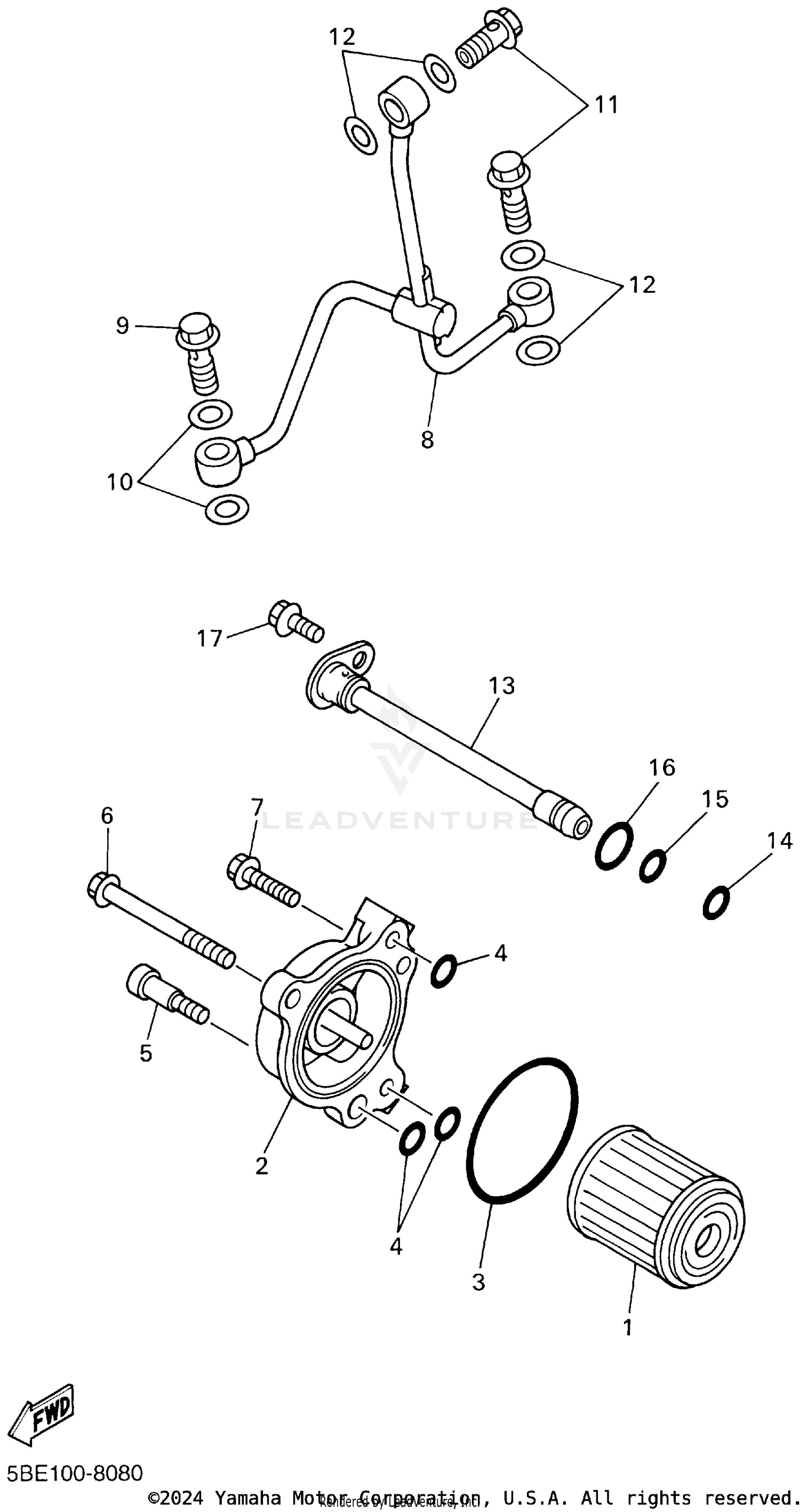

Oil Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELEMENT ASSY, OIL CLEANER
1UY-13440-02-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, OIL ELEMENT
5BE-13447-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-47675-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-07135-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-065G2-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95027-06065-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95027-06020-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, DELIVERY 1
5BE-13161-01-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, UNION
90401-10159-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-10188-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, UNION
90401-08038-00
Superseded by 90401-08006-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-08119-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, DELIVERY 2
5BE-13171-01-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-07003-00
Superseded by 93210-07540-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-09008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-12759-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-06012-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
