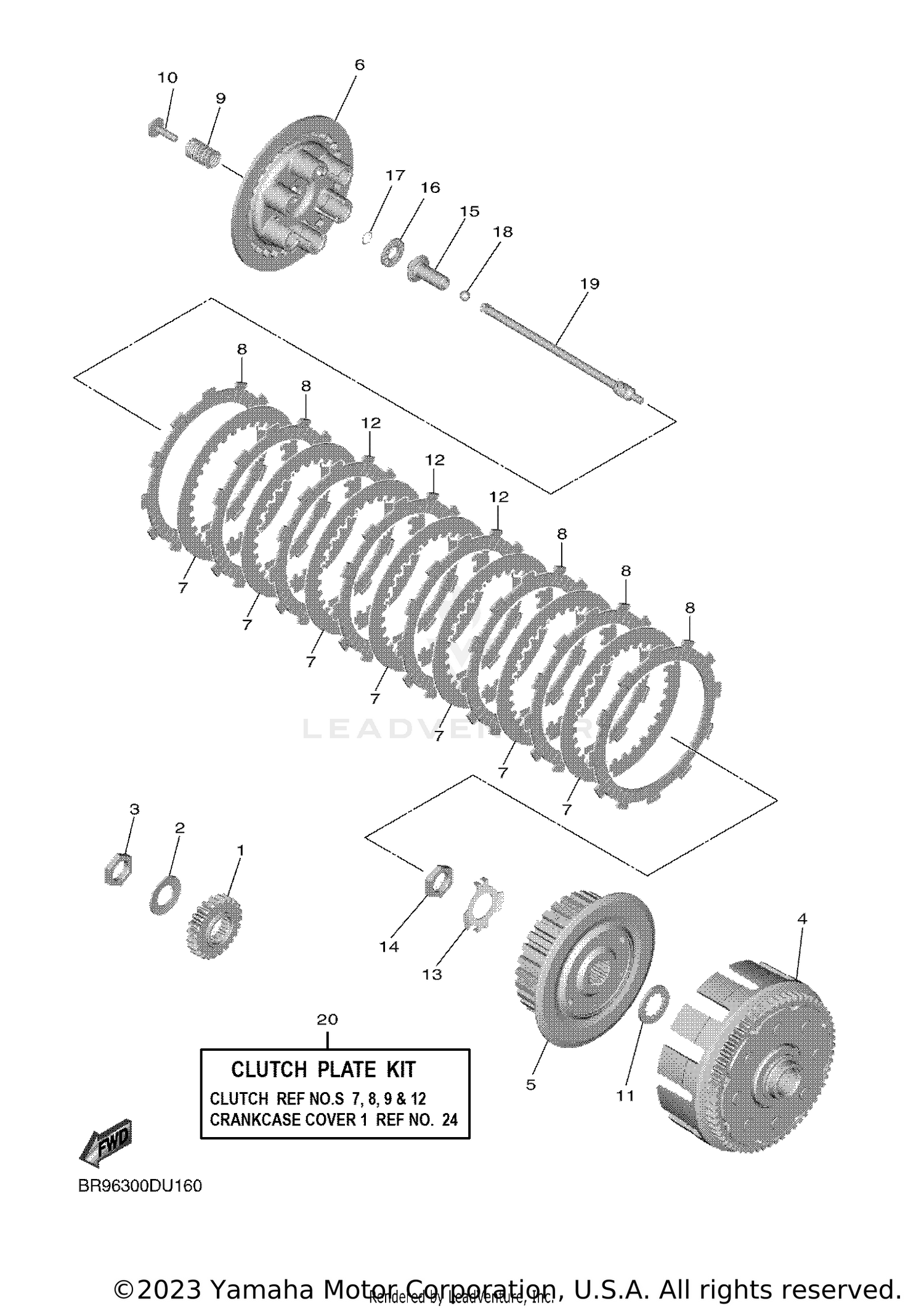

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
2S2-16111-60-00
|
$141.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, CONICAL SPRING
90208-20007-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90170-20211-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
PRIMARY DRIVEN GEAR COMP.
BR9-16150-00-00
|
$502.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOSS, CLUTCH
5TA-16371-20-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, PRESSURE 1
BR9-16351-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 1
BR9-16324-00-00
Superseded by BR9-16324-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#8
PLATE, FRICTION
5TA-16321-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-240A5-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, WITH WASHER
90159-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, THRUST 1
5XD-16154-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, FRICTION
5VY-16321-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, LOCK
90215-20005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90170-20327-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD, PUSH 1
BR9-16356-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93340-21209-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93440-10085-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH 2
1SL-16357-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLUTCH PLATE KIT
BR9-W001G-00-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
