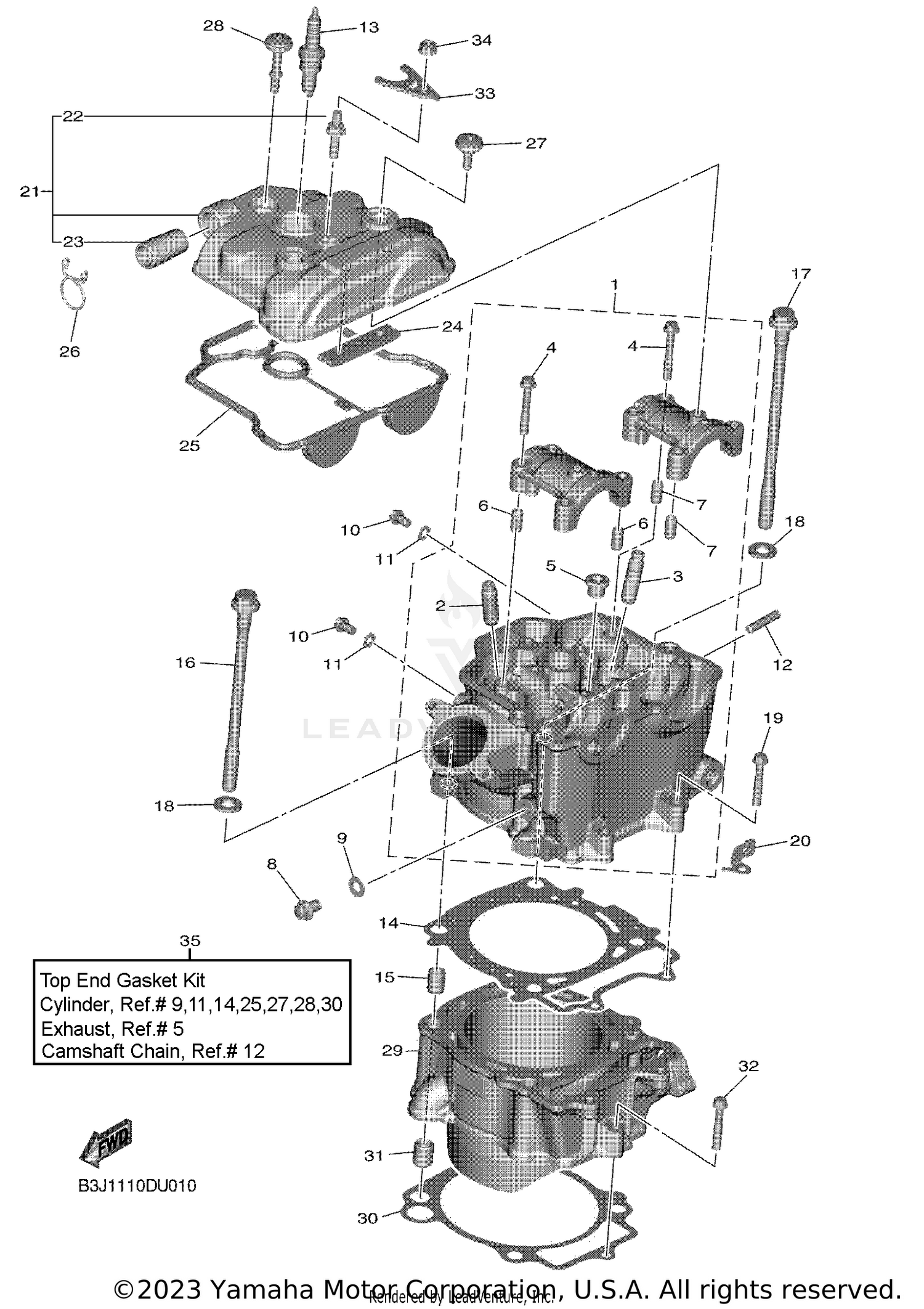

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
BR9-11102-00-00
|
$1,075.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5PS-11133-10-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
5PS-11134-10-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-06027-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, STRAIGHT SCREW
90340-12007-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
91808-16023-00
|
$7.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95022-08012-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-08119-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-06037-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
CPR9E-9 NGK SPLUG 10
CPR-9EA90-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
CPR8EA-9 NGK SPLUG
CPR-8EA90-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
GASKET, CYLINDER HEAD 1
BR9-11181-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL
93612-16254-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-10367-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-10163-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-10025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95022-06035-00
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
BR9-81128-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, CYLINDER HEAD
BR9-11190-10-00
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, STUD
90116-06048-00
Superseded by 90116-06049-00
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, BREATHER 2
341-11167-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUIDE, STOPPER 2
5BE-12241-00-00
Superseded by 5BE-12241-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET, HEAD COVER 1
33D-11193-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-20030-00
Superseded by 90467-20M15-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, COVER HEAD
5UM-1119E-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, COVER HEAD
33D-1119E-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CYLINDER 1
BR9-11311-00-00
|
$691.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET, CYLINDER
BR9-11351-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, DOWEL A
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95022-06035-00
|
$3.48 | ||
|
Unavailable |
|||
|
#33
HOLDER
BR9-11395-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, WITH WASHER
95702-06500-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET KIT
BR9-W0001-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
