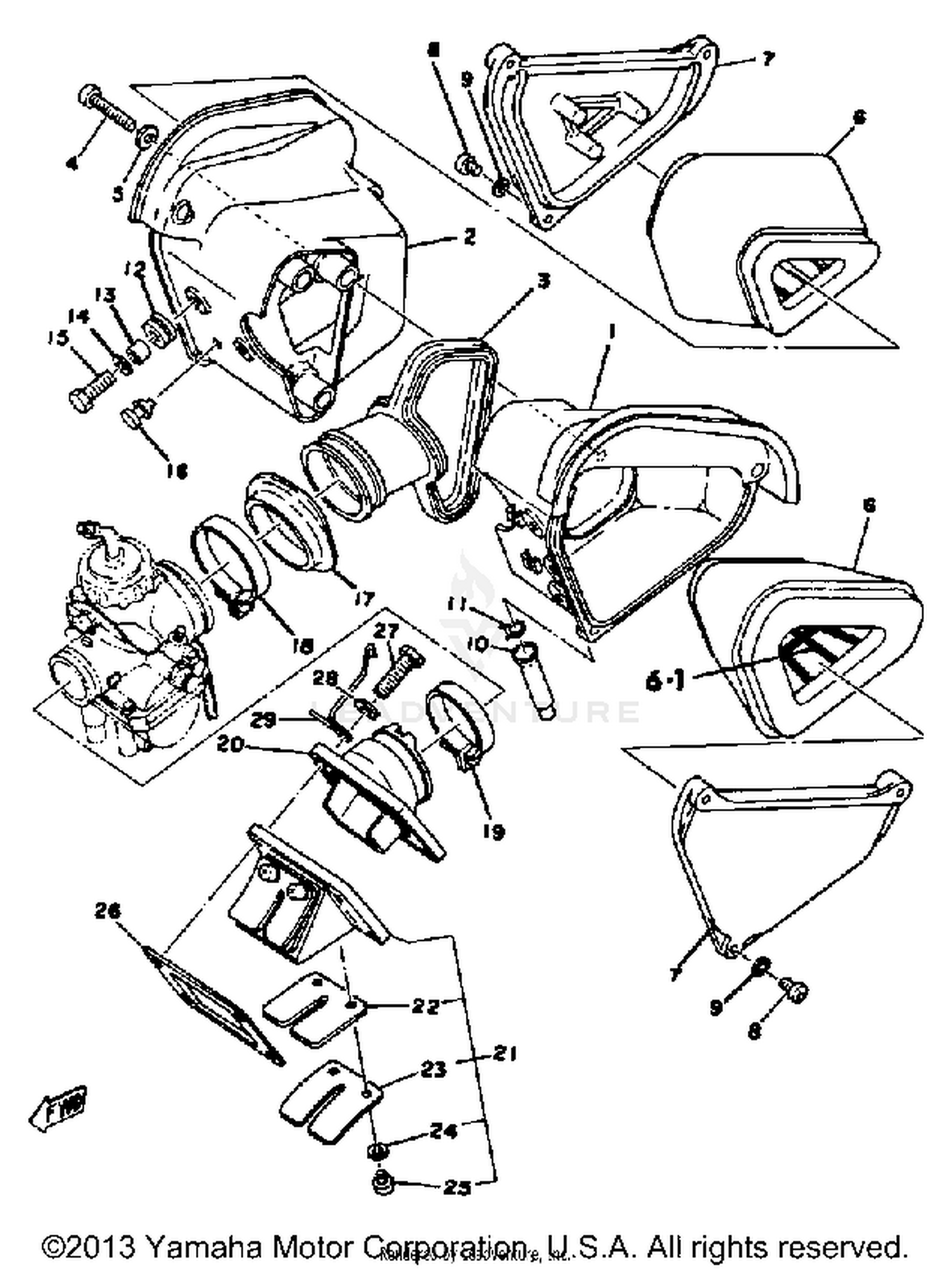

Intake Yz100 E - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, AIR CLEANER 1
2K5-14411-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#
GUIDE, ELEMENT
537-14458-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#2
CASE, AIR CLEANER 2
2K5-14421-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
JOINT, AIR CLNR 1
2K5-14453-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
ELEMENT, AIR CLNR (537-14450-00
537-14451-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#7
CAP, CLEANER CASE 1
537-14412-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL (509-14457-01)
509-14457-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#11
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-05169-00
|
$0.89 | ||
|
Unavailable |
|||
|
#17
COVER 1
537-14417-00-00
|
$10.32 | ||
|
Unavailable |
|||
|
#18
CLAMP, HOSE (308-14455-00)
90460-54062-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, CARBURETOR
537-13565-01-00
|
$73.99 | ||
|
Unavailable |
|||
|
#21
REED VALVE ASSEMBLY (885-13610-
10V-13610-01-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
REED, VALVE (1L8-13613-00-00)
10V-13613-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
STOPPER, REED VALVE (10V-12616-
1UA-13616-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#24
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, VALVE SEAT
3TT-13621-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Unavailable |
|||
|
#28
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
CLAMP
90462-20041-00
|
$1.74 | ||
|
Unavailable |
|||
