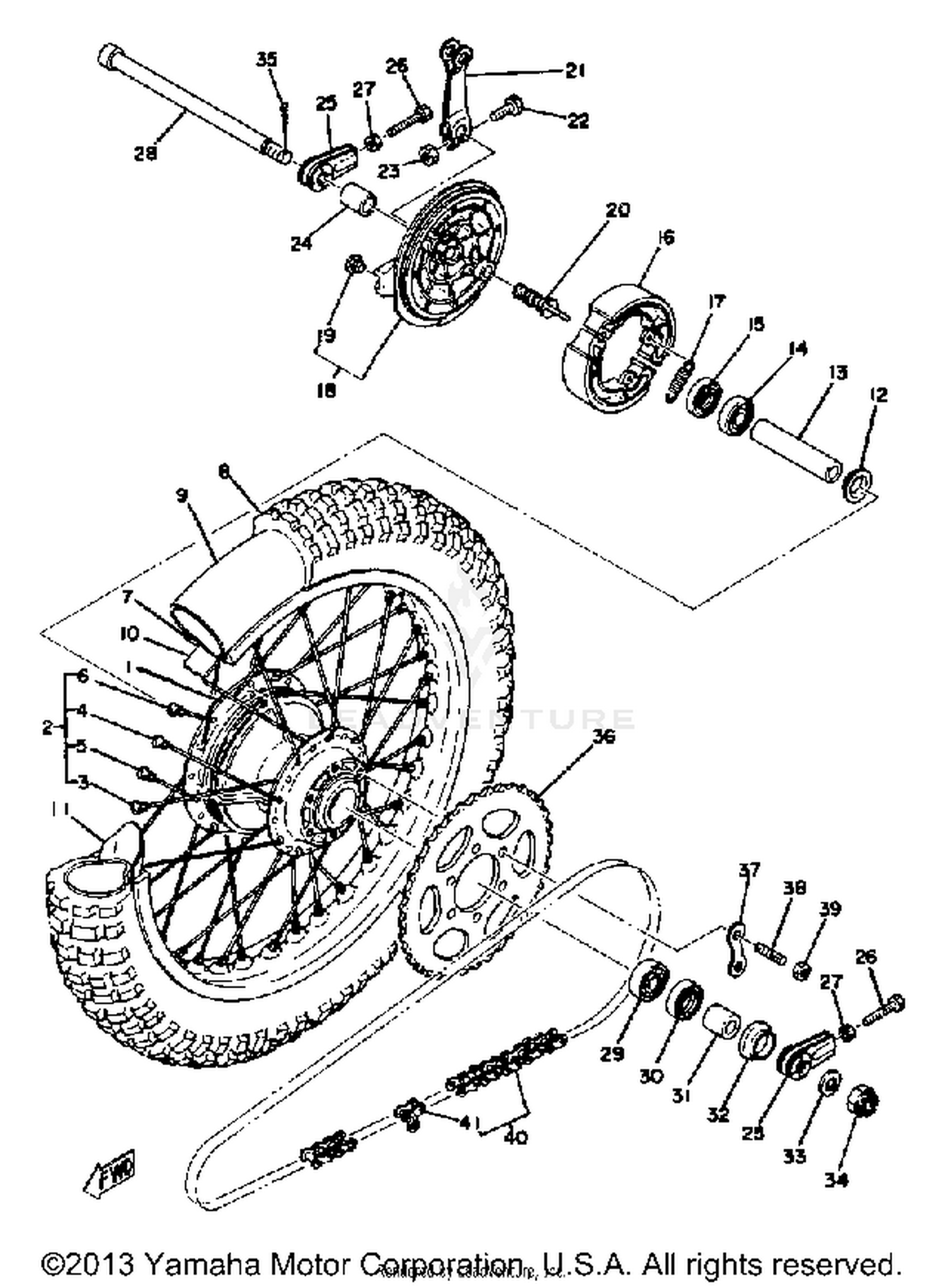

Rear Wheel Yz100 E - F Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
1W1-25311-00-98
|
$206.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
537-25304-01-00
|
$131.99 | ||
|
Unavailable |
|||
|
#3
SPOKE SET, INNER 2
537-25396-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 2
537-25397-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#5
SPOKE SET, INNER 1
537-25391-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#6
SPOKE SET, OUTER 1
537-25392-90-00
|
$4.04 | ||
|
Unavailable |
|||
|
#7
RIM 1.85X18
94418-18245-00
|
$274.99 | ||
|
Unavailable |
|||
|
#8
CS 350X18 C-755-1
94135-18551-00
|
$46.99 | ||
|
Unavailable |
|||
|
#9
TUBE (2.75-18)
94235-18085-00
Superseded by 94232-18113-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
UNAVAILABLE IN PRICE BOOK (537-
2X3-18043-00-00
|
|||
|
Unavailable |
|||
|
#12
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
90560-15312-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#17
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRAKE SHOE PLATE ASSEMBLY (2A6-
99999-02024-00
|
$106.99 | ||
|
Unavailable |
|||
|
#19
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
UNAVAILABLE IN PRICE BOOK
1E6-25155-00-00
|
|||
|
Unavailable |
|||
|
#22
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-15524-00
|
$6.99 | ||
|
Unavailable |
|||
|
#25
PULLER, CHAIN 1
537-25388-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#26
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
AXLE, WHEEL
537-25381-01-00
|
$18.44 | ||
|
Unavailable |
|||
|
#29
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-15523-00
|
$5.48 | ||
|
Unavailable |
|||
|
#32
COVER, HUB DUST
401-25367-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-15238-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPROCKET, DRIVN 41T
2K5-25441-00-XX
|
$84.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 43T (2K5-25443-
2K5-25443-00-XX
|
$85.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 45T
2K5-25445-00-XX
|
$43.99 | ||
|
Unavailable |
|||
|
#37
WASHER
1G8-25412-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, STUD
90116-10221-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#40
DID520DS-98L (DID520DS 98L)
9Y58E-20097-00
|
$68.99 | ||
|
Unavailable |
|||
|
#41
JOINT CHAIN
94680-11001-00
|
$8.49 | ||
|
Unavailable |
|||
