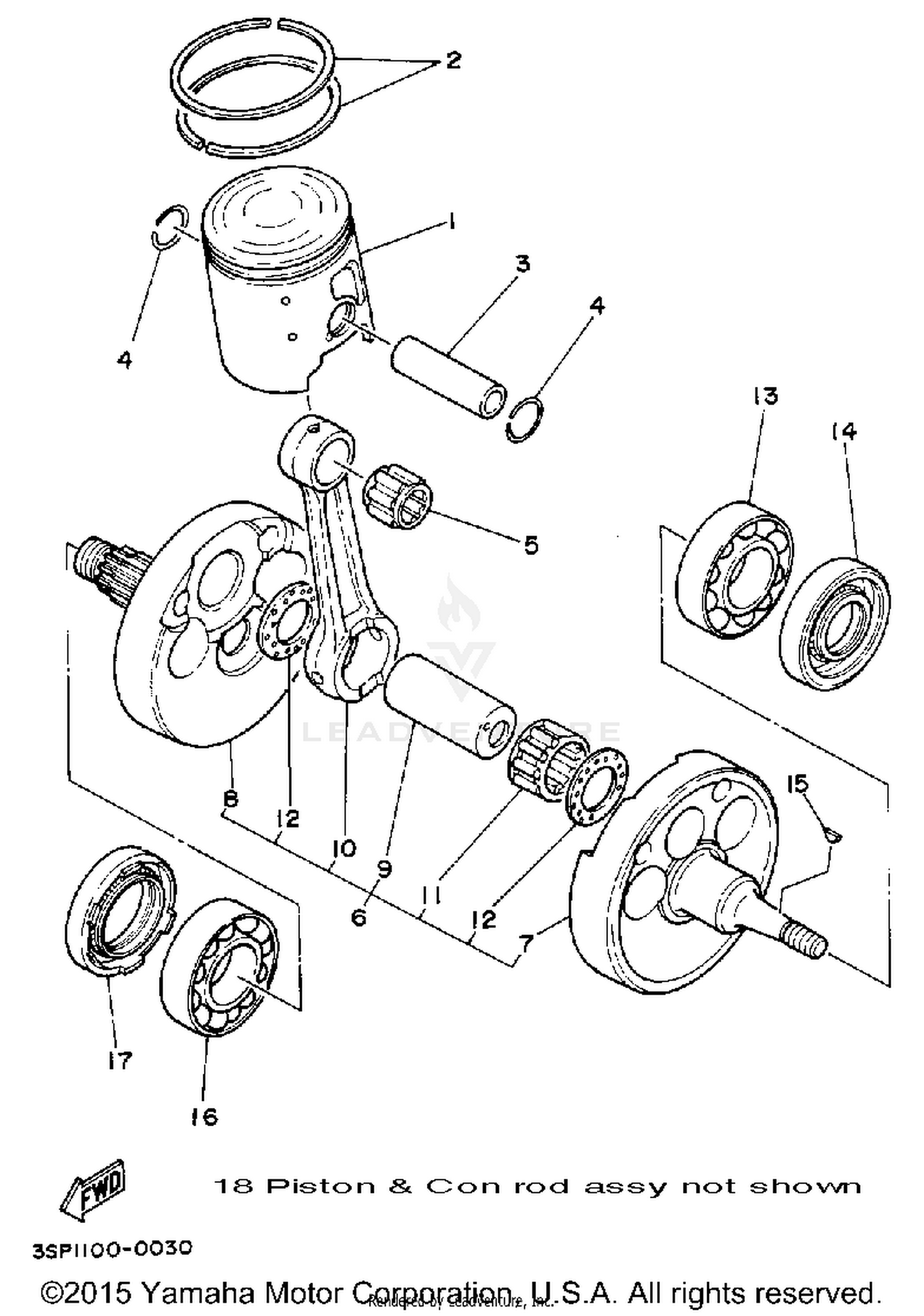

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON (STD)
3JE-11631-01-93
|
$119.99 | ||
|
Unavailable |
|||
|
#
PISTON (0.25MM O/S)
3JE-11635-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#
PISTON (0.50MM O/S)
3JE-11636-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#
PISTON (0.75MM O/S)
3JE-11637-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#
PISTON (STD)
3JE-11631-01-95
Superseded by 3JE-11631-01-93
|
$119.99 | ||
|
Unavailable |
|||
|
#2
PISTON RING SET (STD)
56A-11601-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.25MM O/S)
56A-11601-10-00
|
$38.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (0.50MM O/S)
56A-11601-20-00
|
$38.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (0.75MM O/S)
56A-11601-30-00
|
$38.99 | ||
|
Unavailable |
|||
|
#3
PIN, PISTON
2VM-11633-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93450-19052-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, CYLINDRICAL
93310-418E9-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT ASSEMBLY
3SP-11400-00-00
|
$423.99 | ||
|
Unavailable |
|||
|
#7
CRANK 1
3JE-11412-00-00
|
$454.99 | ||
|
Unavailable |
|||
|
#8
CRANK 2
3JE-11422-00-00
|
$193.99 | ||
|
Unavailable |
|||
|
#9
PIN, CRANK 1
3JE-11681-01-00
Superseded by 4SR-11681-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, CONNECTING
5X5-11651-01-00
Superseded by 5X5-11651-03-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CYLINDRICAL
93310-425T1-00
Superseded by 93310-425P2-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, (90209-25220)
90209-25085-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-37802-00
Superseded by 93306-37804-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-22363-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
KEY, WOODRUFF
90280-03017-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-37802-00
Superseded by 93306-37804-00
|
$74.99 | ||
|
Unavailable |
|||
|
#17
OIL SEAL
93103-40091-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON (0.25MM O/S)
3JE-11635-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#
PISTON (0.50MM O/S)
3JE-11636-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#
PISTON (0.75MM O/S)
3JE-11637-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#
PISTON ASSEMBLY (STD) (3JE-1163
3JE-11630-01-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON ASSEMBLY (0.50MM O/S) (3
3JE-11630-21-00
|
$228.99 | ||
|
Unavailable |
|||
|
#
PISTON KIT (3 0/S)
3JE-11630-31-00
|
$228.99 | ||
|
Unavailable |
|||
|
#
ROD, CONNECTING
5X5-11651-01-00
Superseded by 5X5-11651-03-00
|
$126.99 | ||
|
Unavailable |
|||
|
#
CIRCLIP
93450-19052-00
|
$6.99 | ||
|
Unavailable |
|||
|
#
PISTON (STD)
3JE-11631-01-93
|
$119.99 | ||
|
Unavailable |
|||
|
#
CONNECTING ROD ASSEMBLY (3SP-11
3SP-11650-02-00
|
$245.99 | ||
|
Unavailable |
|||
|
#
PIN, CRANK 1
3JE-11681-01-00
Superseded by 4SR-11681-00-00
|
$109.99 | ||
|
Unavailable |
|||
|
#
BEARING, CYLINDRICAL
93310-425T1-00
Superseded by 93310-425P2-00
|
$73.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (0.75MM O/S)
56A-11601-30-00
|
$38.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (0.50MM O/S)
56A-11601-20-00
|
$38.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (STD)
56A-11601-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#
WASHER, (90209-25220)
90209-25085-00
|
$11.99 | ||
|
Unavailable |
|||
|
#
BEARING, CYLINDRICAL
93310-418E9-00
|
$47.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (0.25MM O/S)
56A-11601-10-00
|
$38.99 | ||
|
Unavailable |
|||
|
#188
PISTON ASSEMBLY (0.25MM O/S) (3
3JE-11630-11-00
|
$228.99 | ||
|
Unavailable |
|||
