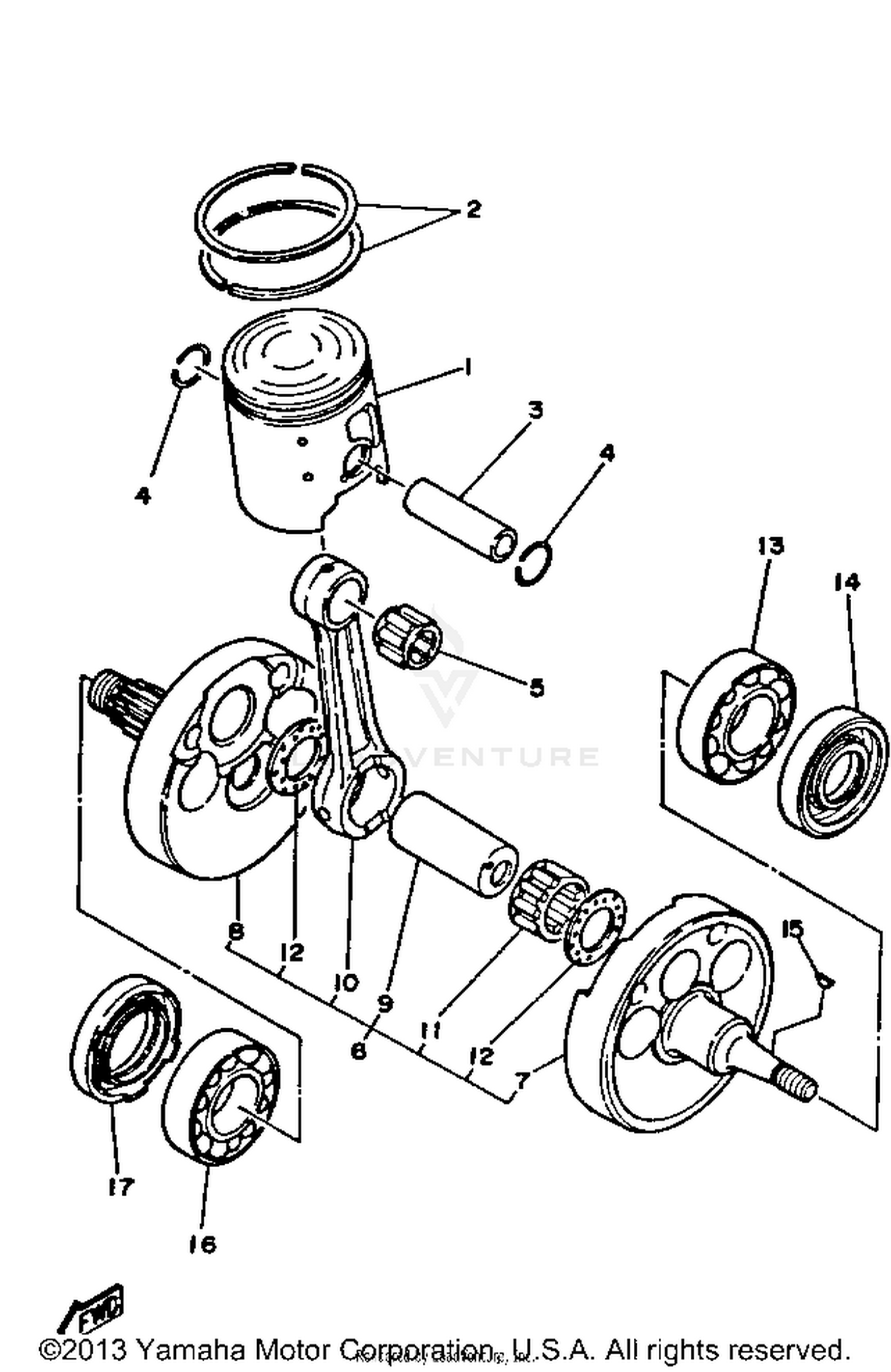

1991 Yamaha YZ250B1 CRANKSHAFT PISTON OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON STD
3XK-11631-00-A0
Superseded by 3XK-11631-01-A0
|
$129.99 | ||
|
Unavailable |
|||
|
#
PISTON STD
3XK-11631-00-B0
Superseded by 3XK-11631-01-B0
|
$120.99 | ||
|
Unavailable |
|||
|
#
PISTON STD
3XK-11631-00-C0
Superseded by 3XK-11631-01-C0
|
$73.99 | ||
|
Unavailable |
|||
|
#
PISTON STD
3XK-11631-00-D0
Superseded by 3XK-11631-01-D0
|
$120.99 | ||
|
Unavailable |
|||
|
#2
PISTON RING SET (STD)
3XK-11601-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#3
PIN, PISTON
2VM-11633-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93450-19052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, CYLINDRICAL
93310-418E9-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT ASSEMBLY (3XK-11400-
3XK-11400-01-00
|
$409.99 | ||
|
Unavailable |
|||
|
#7
CRANK 1
3XK-11412-00-00
Superseded by 3XK-11412-01-00
|
$336.99 | ||
|
Unavailable |
|||
|
#8
CRANK 2
3XK-11422-00-00
Superseded by 3XK-11422-01-00
|
$198.99 | ||
|
Unavailable |
|||
|
#9
PIN, CRANK 1
3JE-11681-01-00
Superseded by 4SR-11681-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, CONNECTING
5X5-11651-02-00
Superseded by 5X5-11651-03-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CYLINDRICAL
93310-425T1-00
Superseded by 93310-425P2-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPECIAL SHAPE
90209-25085-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93306-37802-00
Superseded by 93306-37804-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-22363-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
KEY, WOODRUFF
90280-03017-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING
93306-37802-00
Superseded by 93306-37804-00
|
$69.99 | ||
|
Unavailable |
|||
|
#17
OIL SEAL
93103-40091-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
