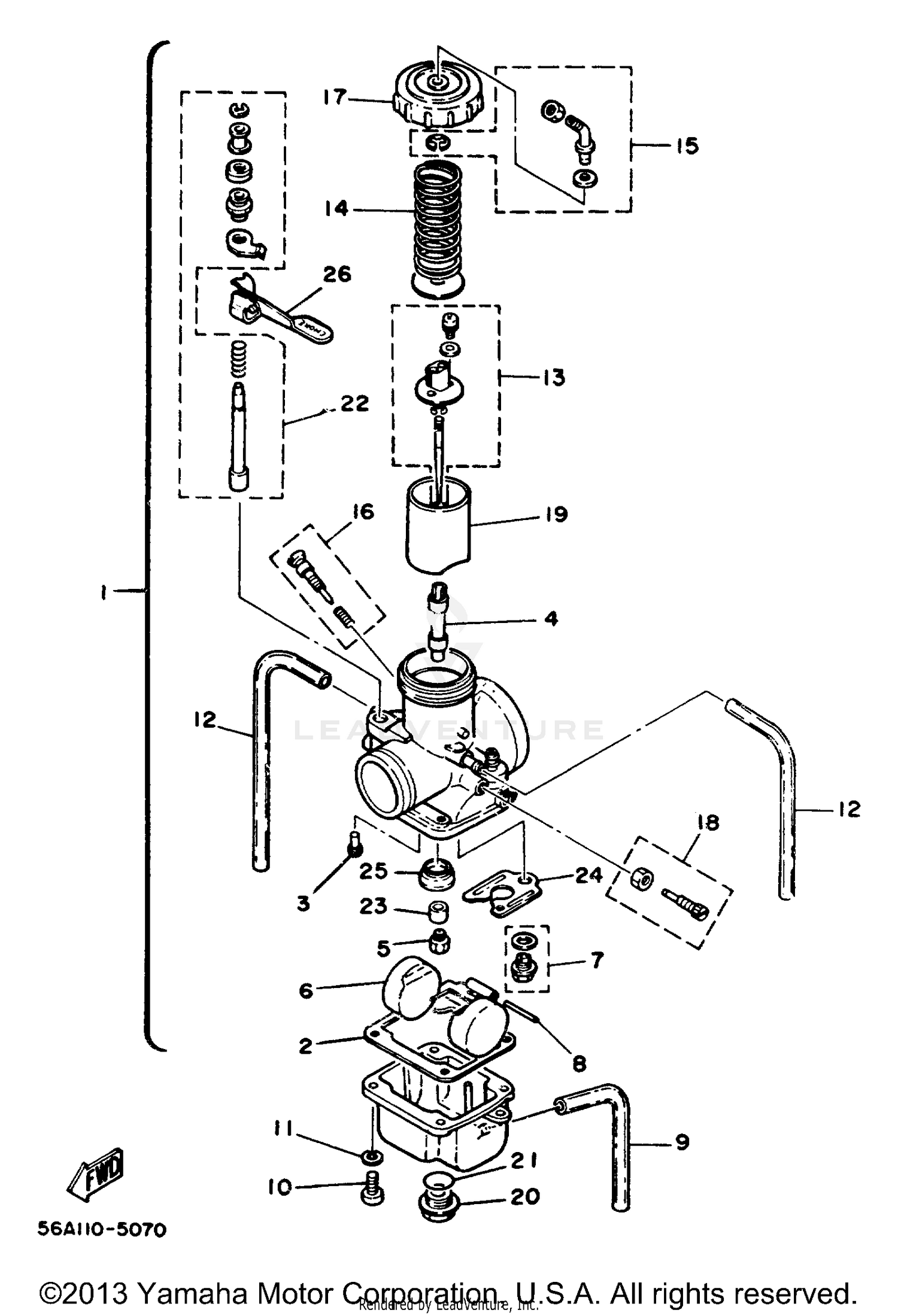

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
56A-14101-00-00
Superseded by 56A-14101-11-00
|
$236.99 | ||
|
Unavailable |
|||
|
#2
GASKET, FLOAT CHAMBER
363-14184-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, PILOT #55 (# 55)
193-14142-55-00
|
$4.55 | ||
|
Unavailable |
|||
|
#
JET, PILOT (65)
193-14142-65-00
|
$5.49 | ||
|
Unavailable |
|||
|
#
JET, PILOT (#60)
193-14142-60-00
|
$5.00 | ||
|
Unavailable |
|||
|
#4
NOZZLE, MAIN (250G)
510-14141-48-00
|
$40.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
510-14141-46-00
|
$24.99 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
510-14141-44-00
|
$51.99 | ||
|
Unavailable |
|||
|
#5
JET, MAIN (#300)
137-14143-60-A0
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#280)
137-14143-56-A0
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#290)
137-14143-58-A1
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
2N7-14185-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE VALVE SET
23X-14107-35-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, FLOAT
537-14186-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
3Y3-14196-00-00
Superseded by 88R-14987-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE
310-14197-00-00
Superseded by 89A-14987-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE SET
23X-1490J-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#14
SPRING, THROTTLE VALVE
431-14131-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#15
CABLE ADJUST SCREW SET
23X-14106-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
AIR SCREW SET
23X-14104-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
TOP, MIXING CHAMBER
5Y9-14158-00-00
|
$92.33 | ||
|
Unavailable |
|||
|
#18
THROTTLE SCREW SET
23X-14103-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE, THROTTLE 1
2X8-14112-25-00
|
$102.99 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
2X8-14112-35-00
|
$184.99 | ||
|
Unavailable |
|||
|
#
VALVE, THROTTLE 1
2X8-14112-30-00
|
$135.99 | ||
|
Unavailable |
|||
|
#20
PLUG, SCREW
510-14115-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#21
O-RING
558-14147-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
STARTER SET
26A-1410A-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#23
WASHER, MAIN JET
5X5-14153-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#24
PLATE
3R4-14146-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#25
SETTER, NEEDLE JET
509-14145-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#26
COVER, PLUNGER CAP (1W3-14173
1W3-14175-00-00
|
$18.49 | ||
|
Unavailable |
|||
