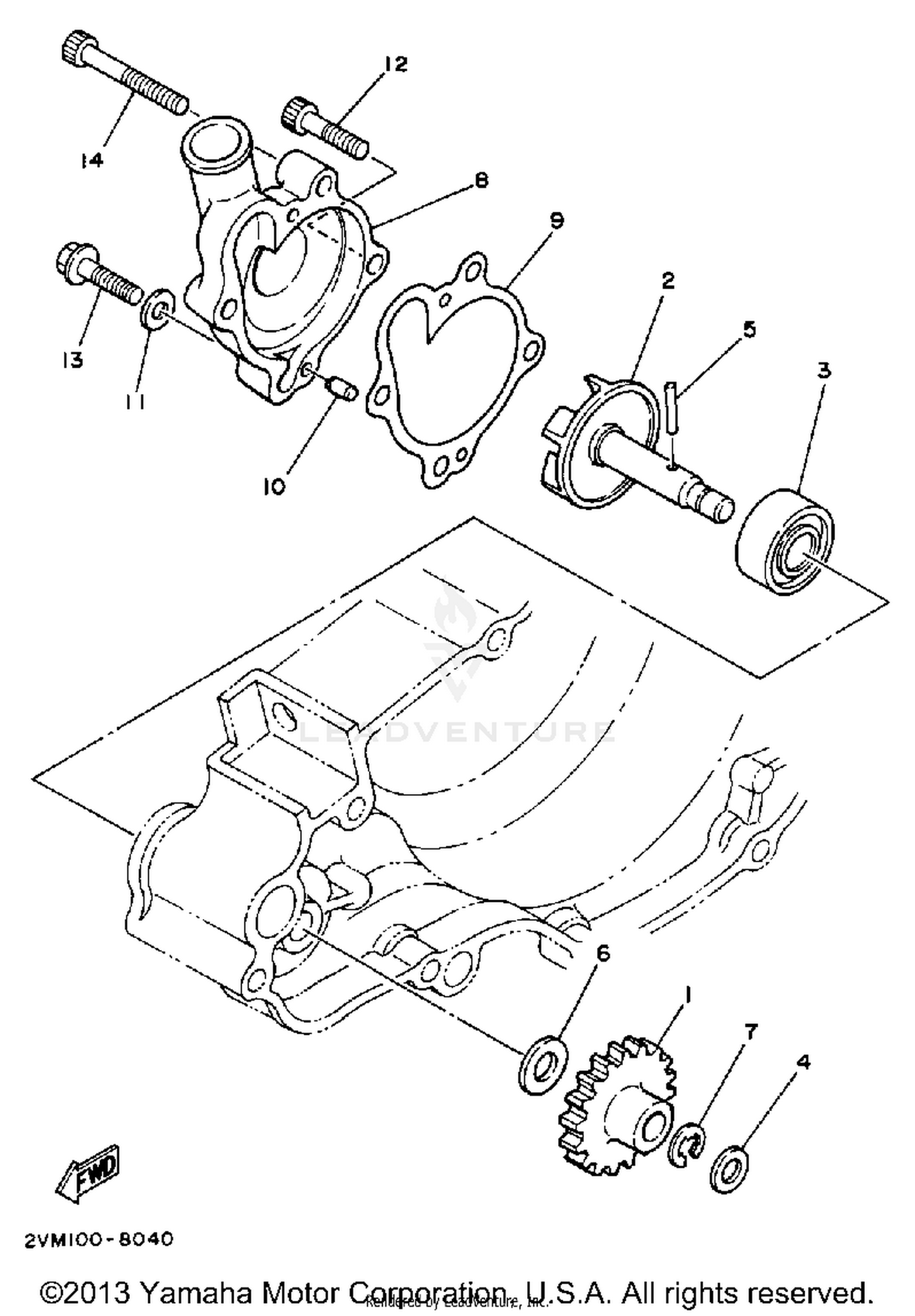

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IMPELLER SHAFT
2VM-12459-00-00
Superseded by 4SR-12459-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#2
IMPELLER SHAFT ASSEMBLY
2VM-12450-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93103-10168-00
Superseded by 93103-10011-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08759-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
93603-22028-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-08784-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-06600-00
Superseded by 99001-06600-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, HOUSING
2VM-12422-00-00
|
$93.99 | ||
|
Unavailable |
|||
|
#9
GASKET, HOUSING COVER 2
2VM-12428-00-00
Superseded by 2VM-12428-11-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93604-10011-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-06166-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95816-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91316-06065-00
Superseded by 91317-06065-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
