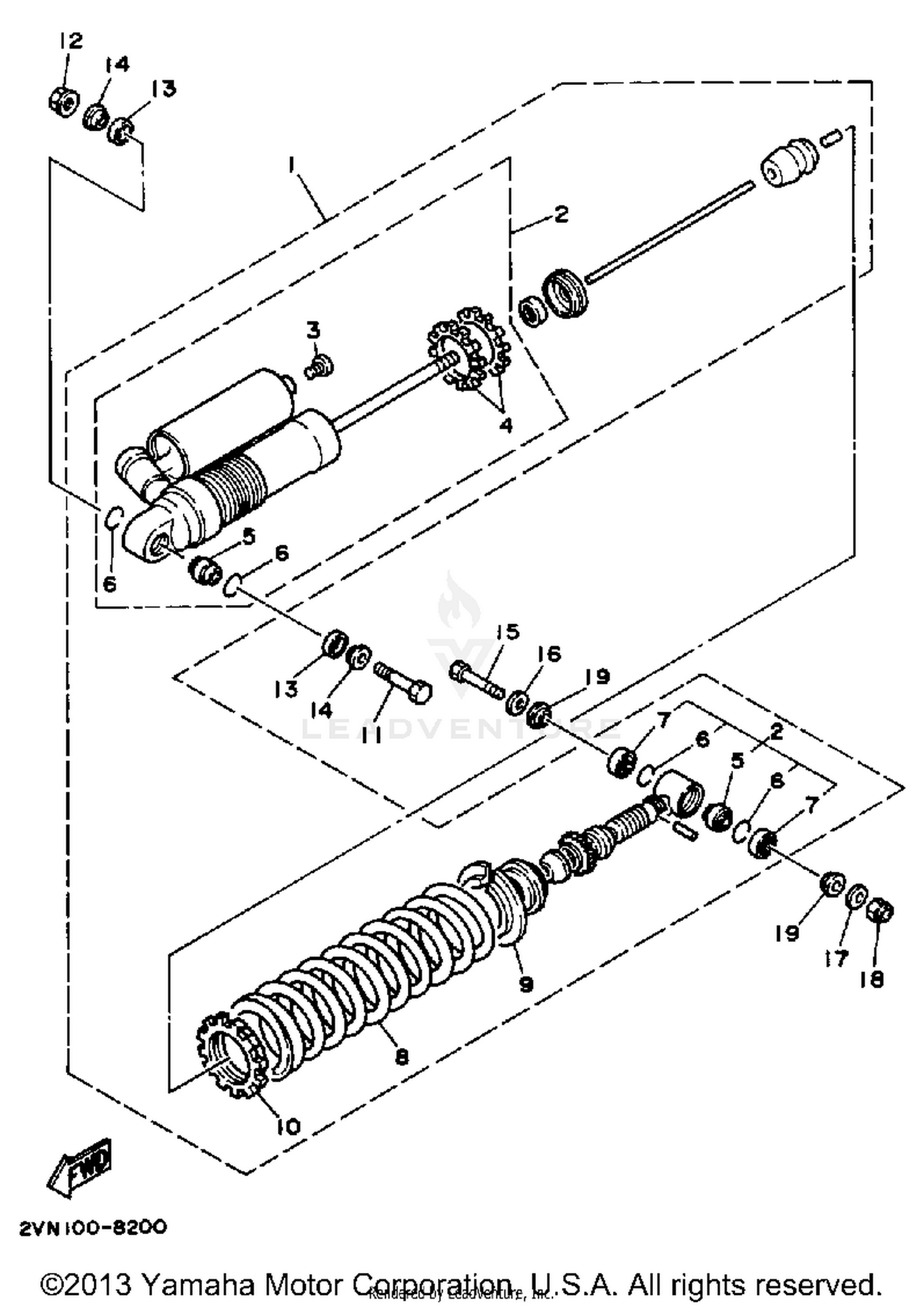

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHK/ABS ASSEMBLY, REAR
2WH-22210-00-6W
|
$644.99 | ||
|
Unavailable |
|||
|
#2
SHK/ABS ASSEMBLY, REAR
2WH-22201-00-00
Superseded by 2WH-22210-00-6W
|
$644.99 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, HOLD
1LX-22225-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#5
BEARING (93399-99934-00)
93399-99934-00
Superseded by 93399-999T3-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93104-18077-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING (5.50) (BLACK-BLUE)
1LV-22212-00-6W
|
$157.99 | ||
|
Unavailable |
|||
|
#
SPRING (5.75)
1LV-22212-20-6W
|
$125.99 | ||
|
Unavailable |
|||
|
#9
GUIDE, SPRING 1
2VN-22214-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#10
SEAT, SPRING LOWER
1LX-22223-00-00
|
$53.99 | ||
|
Unavailable |
|||
|
#11
BOLT
90109-10704-00
|
$11.49 | ||
|
Unavailable |
|||
|
#12
NUT, SELF-LOCKING
90185-10115-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER
23X-22211-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-127G8-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-10700-00
|
$15.49 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-120E6-00
Superseded by 90201-12027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-126H8-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
