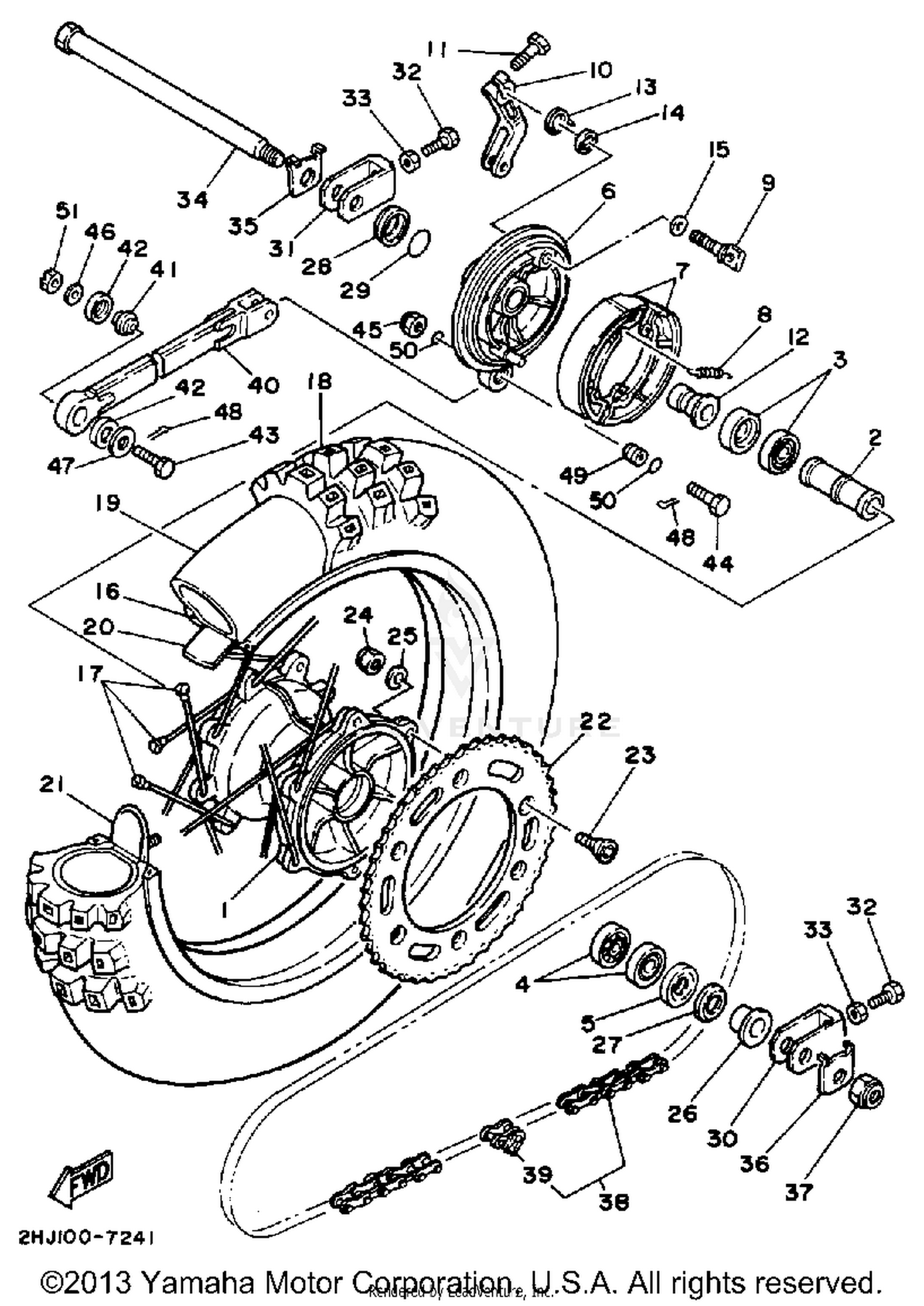

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
57H-25311-00-98
|
$706.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-20226-00
|
$17.99 | ||
|
Unavailable |
|||
|
#3
BEARING
93306-00418-00
Superseded by 93306-00444-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-28023-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BRAKE SHOE
40T-25321-00-98
|
$155.99 | ||
|
Unavailable |
|||
|
#7
BRAKE SHOE KIT
40T-W2536-00-00
Superseded by 3GW-W253A-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAMSHAFT
1E6-25151-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#10
LEVER, CAMSHAFT
5X6-25355-00-00
|
$105.99 | ||
|
Unavailable |
|||
|
#11
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-200H1-00
|
$19.99 | ||
|
Unavailable |
|||
|
#13
SPRING, TORSION
90508-29641-00
|
$6.99 | ||
|
Unavailable |
|||
|
#14
OIL SEAL
93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM, CAMSHAFT
148-25353-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIM 2.50
94425-18454-00
|
$267.99 | ||
|
Unavailable |
|||
|
#17
SPOKE SET, REAR
57H-25304-00-00
|
$139.99 | ||
|
Unavailable |
|||
|
#18
110/100-18 M22 BS
94111-187H3-00
|
$155.99 | ||
|
Unavailable |
|||
|
#19
TUBE (110-140/80-100-18 M/C)
94213-18232-00
Superseded by 94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, RIM (2.50-18)
94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, BEAD
2X5-25394-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#22
SPROCKET, DRIVEN (49T) (2HH-254
3R4-25449-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 48T
3R4-25448-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVEN 50T
3R4-25450-01-XX
|
$56.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 44T
39W-25444-00-00
|
$61.90 | ||
|
Unavailable |
|||
|
#
SPROCKET,DRIVN 45T
39W-25445-00-00
Superseded by 39W-25445-01-00
|
$190.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRIVN 46T
39W-25446-00-00
|
$65.52 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
30W-25452-00-00
|
|||
|
Unavailable |
|||
|
#23
BOLT
90109-08706-00
Superseded by 90109-081G2-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-081A6-00
Superseded by 90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-200H2-00
Superseded by 90387-2000C-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, HUB DUST
4V4-25367-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, PLATE
23X-25327-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#29
O-RING
93210-31114-00
Superseded by 93210-31MJ5-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
PULLER, CHAIN 2
56A-25388-01-00
Superseded by 57H-25389-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#31
PULLER, CHAIN 2
57H-25389-01-00
|
$84.99 | ||
|
Unavailable |
|||
|
#32
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
AXLE, WHEEL
23X-25381-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE (90201-210G3)
90209-21243-00
|
$18.99 | ||
|
Unavailable |
|||
|
#36
WASHER, PLATE (90201-180G2)
90209-18244-00
|
$14.99 | ||
|
Unavailable |
|||
|
#37
NUT, SELF-LOCKING
90185-18104-00
Superseded by 90185-18009-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CHAIN (DID 520D 112L)
94585-20112-00
Superseded by 9Y581-92111-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
JOINT,CHAIN (DID 520DM-RJ)
94685-20001-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#40
BAR, TENSION
23X-25371-00-00
|
$256.99 | ||
|
Unavailable |
|||
|
#41
BEARING,SPECIAL
93399-99910-00
Superseded by 23X-253N4-09-00
|
$36.99 | ||
|
Unavailable |
|||
|
#42
OIL SEAL
93112-19006-00
|
$8.99 | ||
|
Unavailable |
|||
|
#43
BOLT, WITH HOLE
90102-08062-00
|
$7.58 | ||
|
Unavailable |
|||
|
#44
BOLT
90109-08370-00
|
$9.49 | ||
|
Unavailable |
|||
|
#45
NUT, SELF-LOCKING
95601-08200-00
Superseded by 90185-08169-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, PLATE
90201-08107-00
Superseded by 90201-086A3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
COLLAR
90387-083F0-00
|
$8.99 | ||
|
Unavailable |
|||
|
#50
O-RING
93210-14167-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
NUT, SLOTTED
95301-08900-00
Superseded by 95307-08900-00
|
$2.10 | ||
|
Unavailable |
|||
