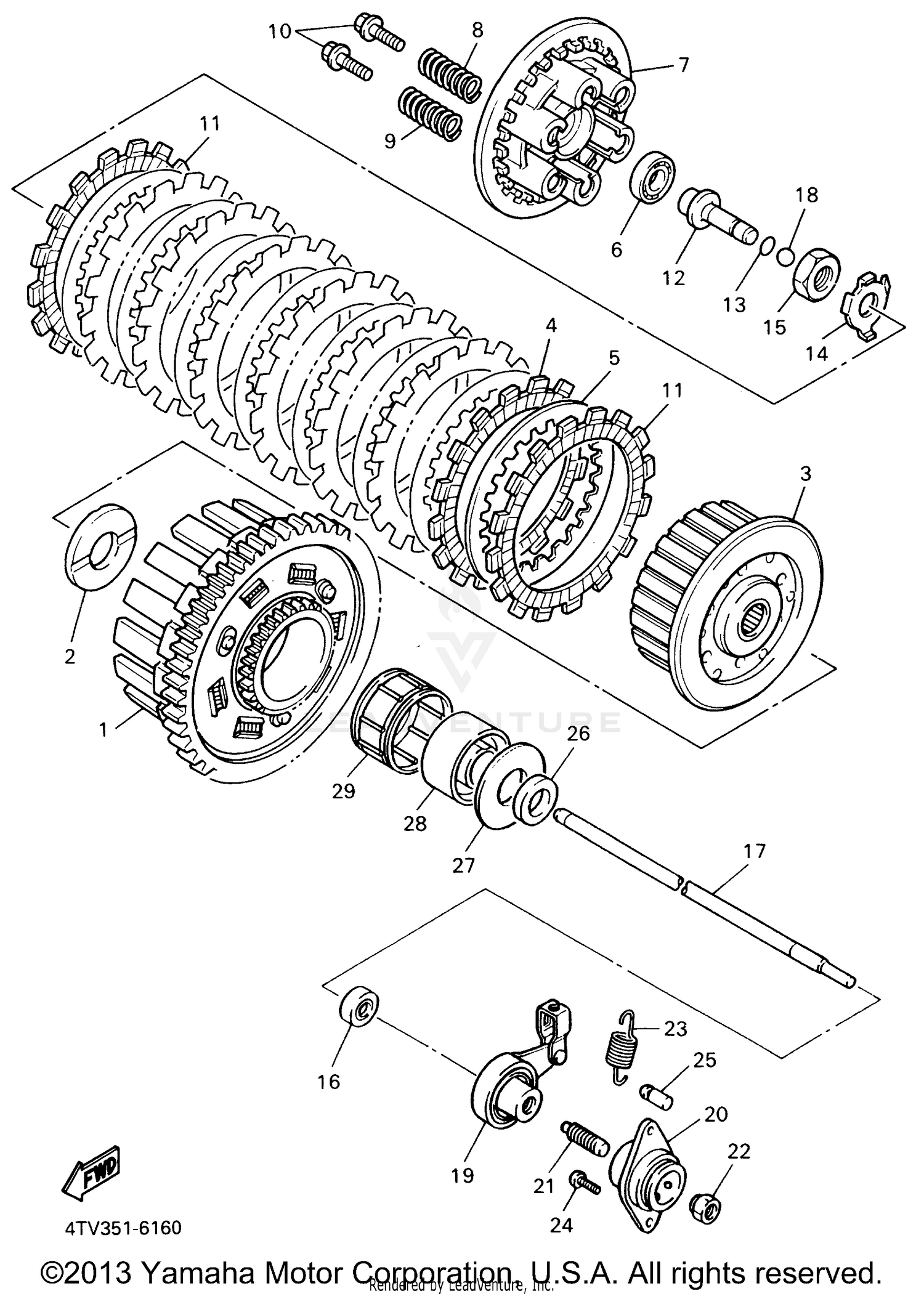

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
4JH-16150-00-00
|
$493.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
1WG-16154-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
4JH-16371-01-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, FRICTION
4JH-16321-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, CLUTCH 1
1LX-16324-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-00105-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, PRESSURE 1
4JH-16351-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-23346-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-224J9-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, WITH WASHER
90159-06092-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, FRICTION
3JD-16321-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, PUSH 1
4JH-16356-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-48364-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, LOCK
90215-18225-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90170-18221-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (SD07 8-21-5.5 HS)
93109-08058-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, PUSH 2
4JH-16357-00-00
Superseded by 4JH-16357-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL
93505-16006-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PUSH LEVER ASSY
4JH-16340-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BALL SCREW HOUSING ASSY
1WG-16304-00-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SET
90113-08021-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SPECIAL SHAPE
90179-08179-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, TENSION
90506-11488-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98517-05010-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOOK, SPRING
132-16346-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-212R3-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE, THRUST 2
1WG-16164-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER 1
1WG-16181-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING
93310-345R8-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
