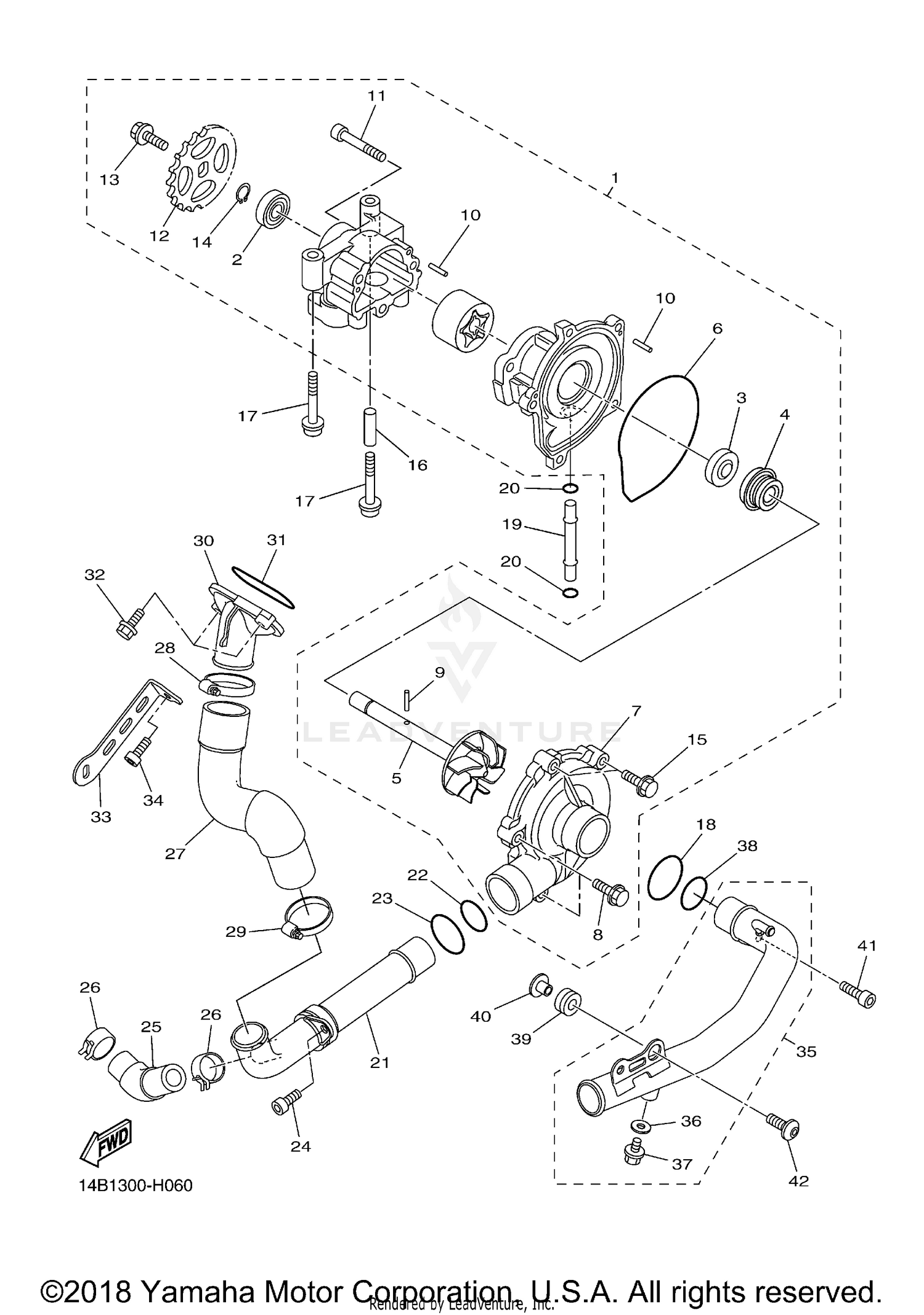

2012 Yamaha YZF R1 WORLD GP 50TH ANNIVERSARY WATER PUMP OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY
14B-12420-00-00
Superseded by 14B-12420-01-00
|
$544.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL
14B-13338-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
4C8-12438-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IMPELLER SHAFT ASSY
14B-12450-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
4XV-12439-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, HOUSING
14B-12422-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95022-06025-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93603-17070-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93603-12007-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91312-06045-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET, DRIVEN
14B-13355-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-06066-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
99009-12400-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95022-06020-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
91808-30031-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-06167-00
Superseded by 90110-06166-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93210-357A2-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE 5
4XV-12485-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
93210-06667-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE 1
14B-12481-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
93210-235A1-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-27370-00
Superseded by 93210-27778-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE 5
14B-12588-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-200A0-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE 1
14B-12576-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE CLAMP ASSY
90450-38040-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE CLAMP ASSY
90450-35001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
JOINT 1
14B-12469-10-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
93210-46044-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (SMALL HEAD)
95024-06025-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY 1
14B-12637-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
91314-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE 4
14B-12484-00-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, HEXAGON
90153-06002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING
93210-235A1-00
|
$5.99 | ||
|
Unavailable |
|||
|
#39
GROMMET
90480-12010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-06112-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
90110-06182-00
Superseded by 91317-06012-00
|
$6.99 | ||
|
Unavailable |
|||
|
#42
SCREW
90149-06022-00
Superseded by 90149-06302-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
