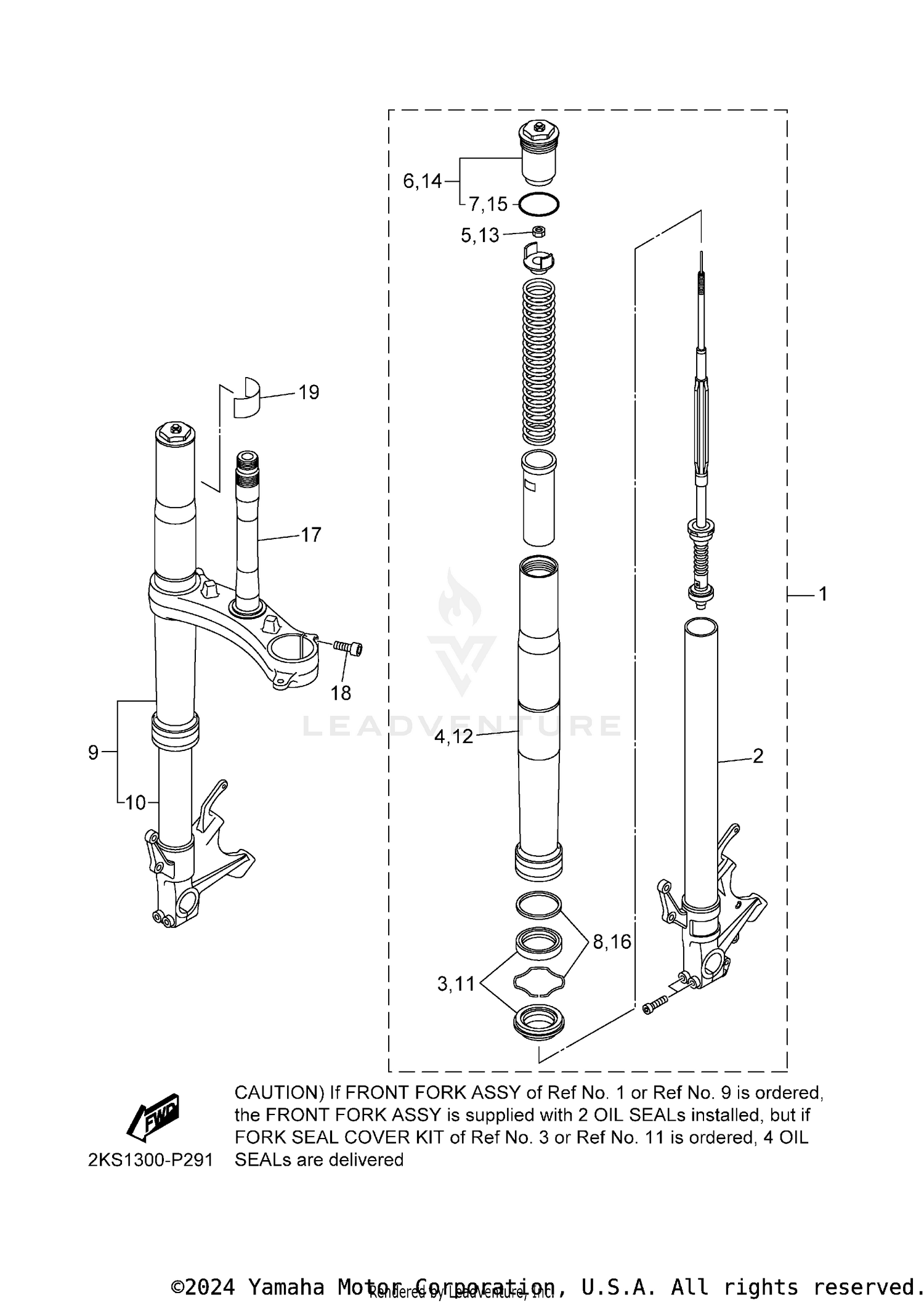

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
2KS-23102-00-00
|
$2,041.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INNER TUBE COMP. 1
2KS-23110-00-00
|
$699.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK SEAL COVER KIT
2KS-231E0-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OUTER TUBE COMP.
2KS-23106-00-00
|
$641.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90170-12060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CAP
2KS-23111-00-00
|
$398.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-41N50-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
FRONT FORK ASSY (R.H)
2KS-23103-00-00
|
$1,922.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
INNER TUBE COMP. 2
2KS-23120-00-00
|
$489.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FORK SEAL COVER KIT
2KS-231E0-00-00
|
$127.99 | ||
|
Unavailable |
|||
|
#11
OUTER TUBE COMP.
2KS-23106-00-00
|
$641.99 | ||
|
Unavailable |
|||
|
#12
NUT
90170-12060-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
BOLT, CAP
2KS-23111-00-00
|
$398.99 | ||
|
Unavailable |
|||
|
#14
O-RING
93210-41N50-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
UNDER BRACKET COMP.
2CR-23340-00-00
|
$518.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
PROTECTOR
5PW-23472-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
