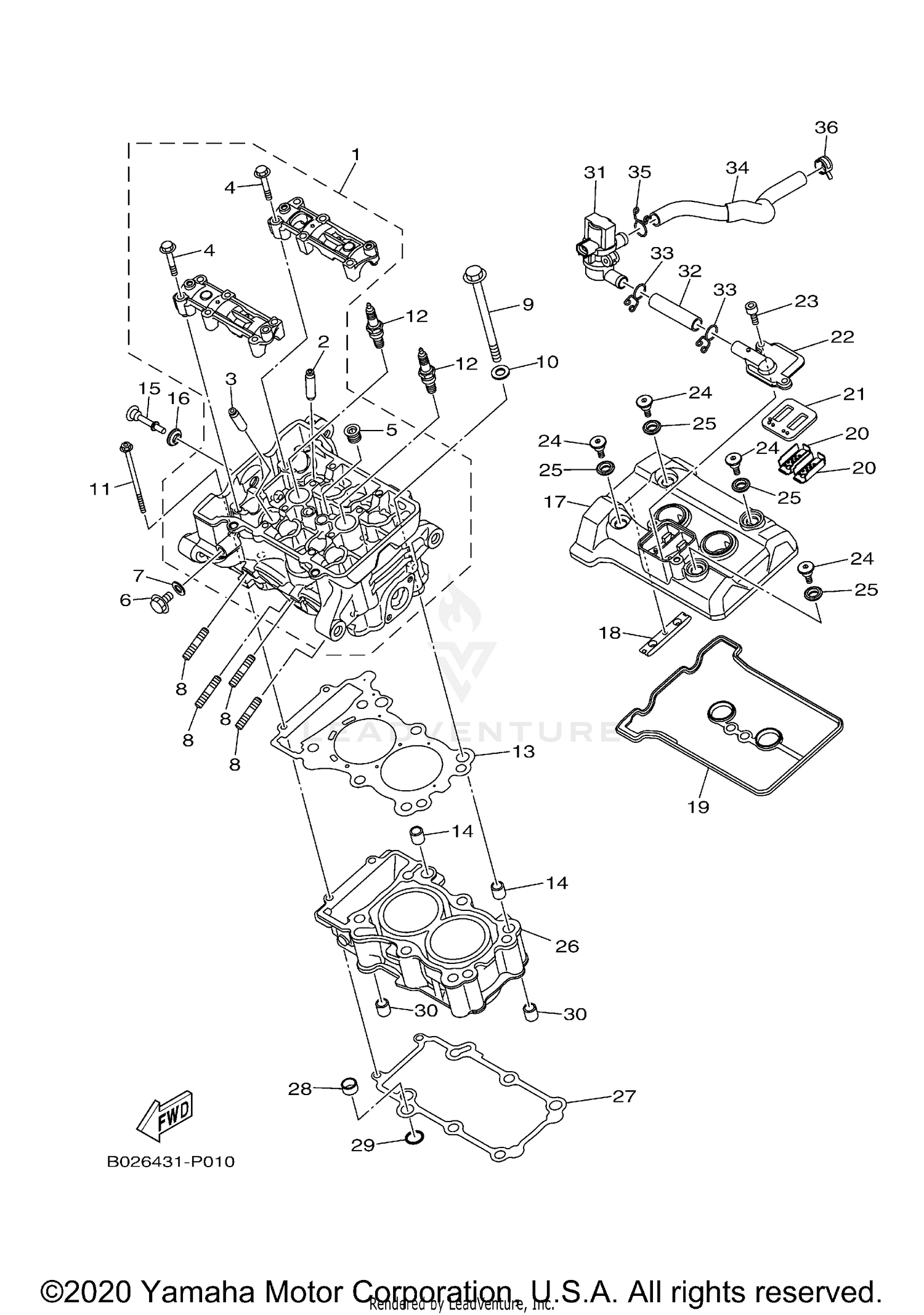

2020 Yamaha YZF R3 MONSTER ENERGY YAMAHA MOTOGP EDITION CYLINDER HEAD OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
2MS-E1102-10-00
Superseded by 2MS-E1102-11-00
|
$451.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE 1
2MS-E1133-10-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 1
1WD-E1133-10-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-06027-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, STRAIGHT SCREW
90340-18002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95022-08012-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-08119-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
95612-08625-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, CYLINDER HOLDING 1
2MS-11361-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10845-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-06870-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, SPARK (NGK CR8E)
CR8-E0000-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#13
GASKET, CYLINDER HEAD 1
2MS-E1181-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL A
99530-14016-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-06898-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, MOUNT 1
1WD-E111G-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CYLINDER HEAD 1
1WD-E1191-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, STOPPER 2
1WD-E2241-00-00
Superseded by 1WD-E2241-01-00
|
$4.20 | ||
|
Unavailable |
|||
|
#19
GASKET, HEAD COVER 1
1WD-E1193-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE
5VY-1482K-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
REED VALVE ASSY
1WD-E4890-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, CASE
1WD-E4899-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
91332-06020-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-06899-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER, MOUNT 1
1WD-E111G-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#26
CYLINDER 1
2MS-E1311-10-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET, CYLINDER
1WD-E1351-00-00
Superseded by B1X-E1351-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#28
PIPE, WATER
5NL-12564-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-16716-00
Superseded by 93210-16772-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, DOWEL A
99530-14016-00
|
$3.60 | ||
|
Unavailable |
|||
|
#31
AIR CUT VALVE ASSY
1WD-E4840-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE, BEND 1
1WD-E4881-00-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
90467-16801-00
Superseded by 90467-15M14-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOSE, BEND 2
1WD-E4882-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-16801-00
Superseded by 90467-15M14-00
|
$3.20 | ||
|
Unavailable |
|||
|
#36
CLIP
90467-16800-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
