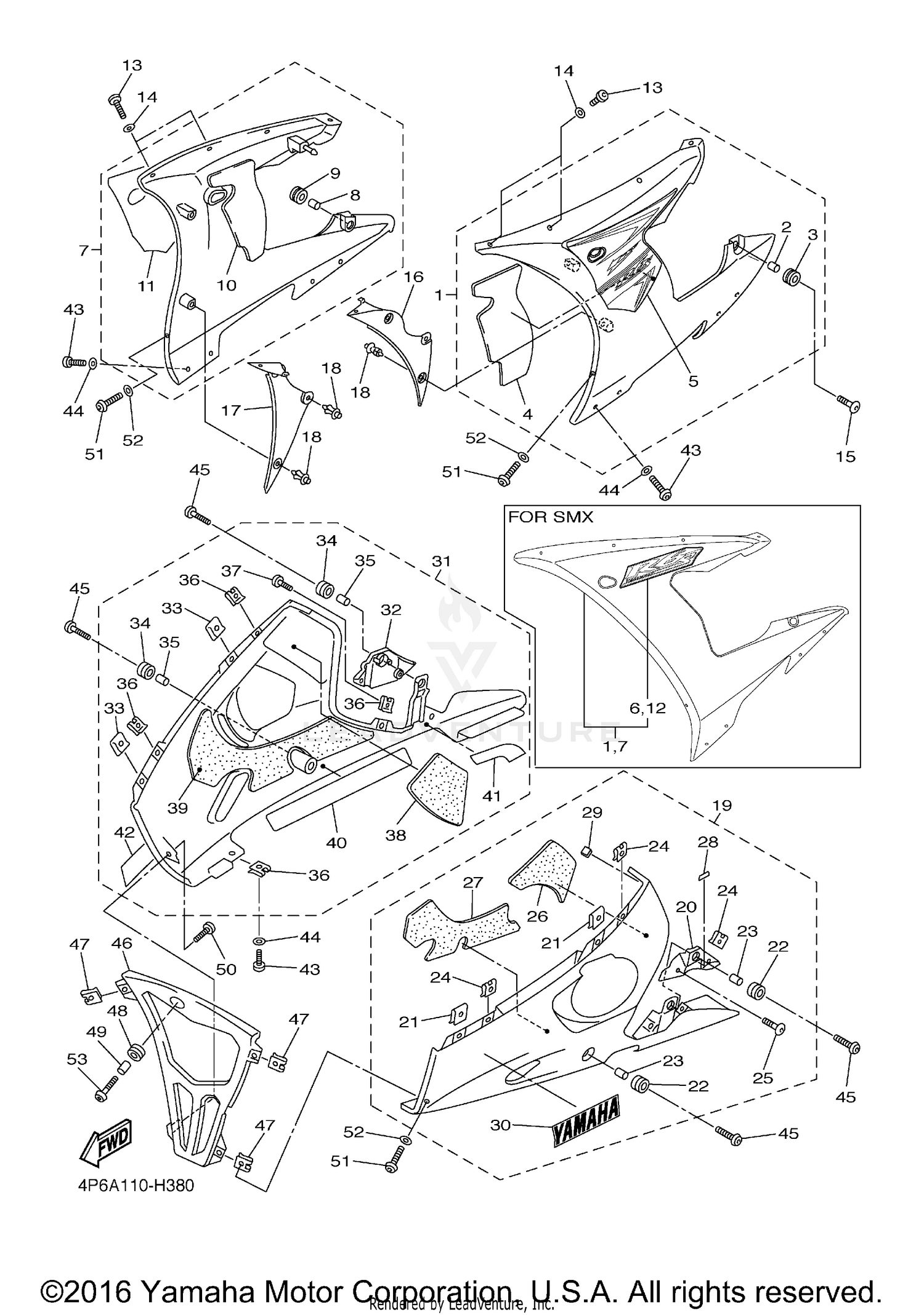

2009 Yamaha YZF R6S COWLING 2 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL ASSEMBLY 1
5SL-Y283U-S0-P1
|
$330.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PANEL ASSEMBLY 1
5SL-Y283U-T0-P0
|
$330.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06057-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-14003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 1
5SL-2836T-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRAPHIC 1
4P6-28391-20-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
EMBLEM
4P6-28315-50-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL ASSEMBLY 2
5SL-Y283V-T0-P0
|
$330.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PANEL ASSEMBLY 2
5SL-Y283V-S0-P1
|
$394.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-06057-00
|
$7.49 | ||
|
Unavailable |
|||
|
#9
GROMMET
90480-14003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
DAMPER, LOCATING 2
5SL-2836U-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRAPHIC 2
4P6-28392-20-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
EMBLEM
4P6-28315-50-00
|
$19.49 | ||
|
Unavailable |
|||
|
#13
BOLT, HEX. SOCKET BUTTON
90111-05003-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. SOCKET BUTTON
90111-06040-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PANEL, INNER 1
5SL-2836K-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PANEL, INNER 2
5SL-2836L-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RIVET
90269-06008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER ASSY, UNDER
5SL-Y2808-F0-P4
|
$391.67 | ||
|
Unavailable |
|||
|
#
COVER ASSY, UNDER
5SL-Y2808-E0-P4
|
$287.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER 3
5SL-2843J-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-14003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
COLLAR
90387-06057-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
NUT, SPRING
90183-05061-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER 3
5SL-2834E-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER 5
5SL-2837J-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, DAMPER
1HX-27415-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER
5SL-21649-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
EMBLEM, YAMAHA
4P6-2153E-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#
EMBLEM, YAMAHA
4P6-2153E-20-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER ASSY 2, UNDER
5SL-Y2809-E0-P4
|
$287.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER ASSY 2, UNDER
5SL-Y2809-F0-P4
|
$358.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER 4
5SL-2844J-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, SPRING
90183-05024-00
Superseded by 90183-051A0-00
|
$3.55 | ||
|
Unavailable |
|||
|
#34
GROMMET
90480-14003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
COLLAR
90387-06057-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
NUT, SPRING
90183-05061-00
|
$4.99 | ||
|
Unavailable |
|||
|
#37
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$5.99 | ||
|
Unavailable |
|||
|
#38
DAMPER
5SL-2834F-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
DAMPER 6
5SL-2837K-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SEAT 1
5SL-2838G-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SEAT 2
5SL-2848K-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#42
EMBLEM, YAMAHA
4P6-2153E-20-00
|
$13.49 | ||
|
Unavailable |
|||
|
#
EMBLEM, YAMAHA
4P6-2153E-10-00
|
$13.49 | ||
|
Unavailable |
|||
|
#43
BOLT, HEX. SOCKET BUTTON
90111-05003-00
|
$6.99 | ||
|
Unavailable |
|||
|
#44
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#45
BOLT, HEX. SOCKET BUTTON
90111-06040-00
|
$3.99 | ||
|
Unavailable |
|||
|
#46
PANEL, INNER 3
5SL-2836M-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT, SPRING
90183-05061-00
|
$4.99 | ||
|
Unavailable |
|||
|
#48
GROMMET
90480-14003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#49
COLLAR
90387-06057-00
|
$7.49 | ||
|
Unavailable |
|||
|
#50
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, HEX. SOCKET BUTTON
90111-05003-00
|
$6.99 | ||
|
Unavailable |
|||
|
#52
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#53
BOLT, HEX. SOCKET BUTTON
90111-06040-00
|
$3.99 | ||
|
Unavailable |
|||
