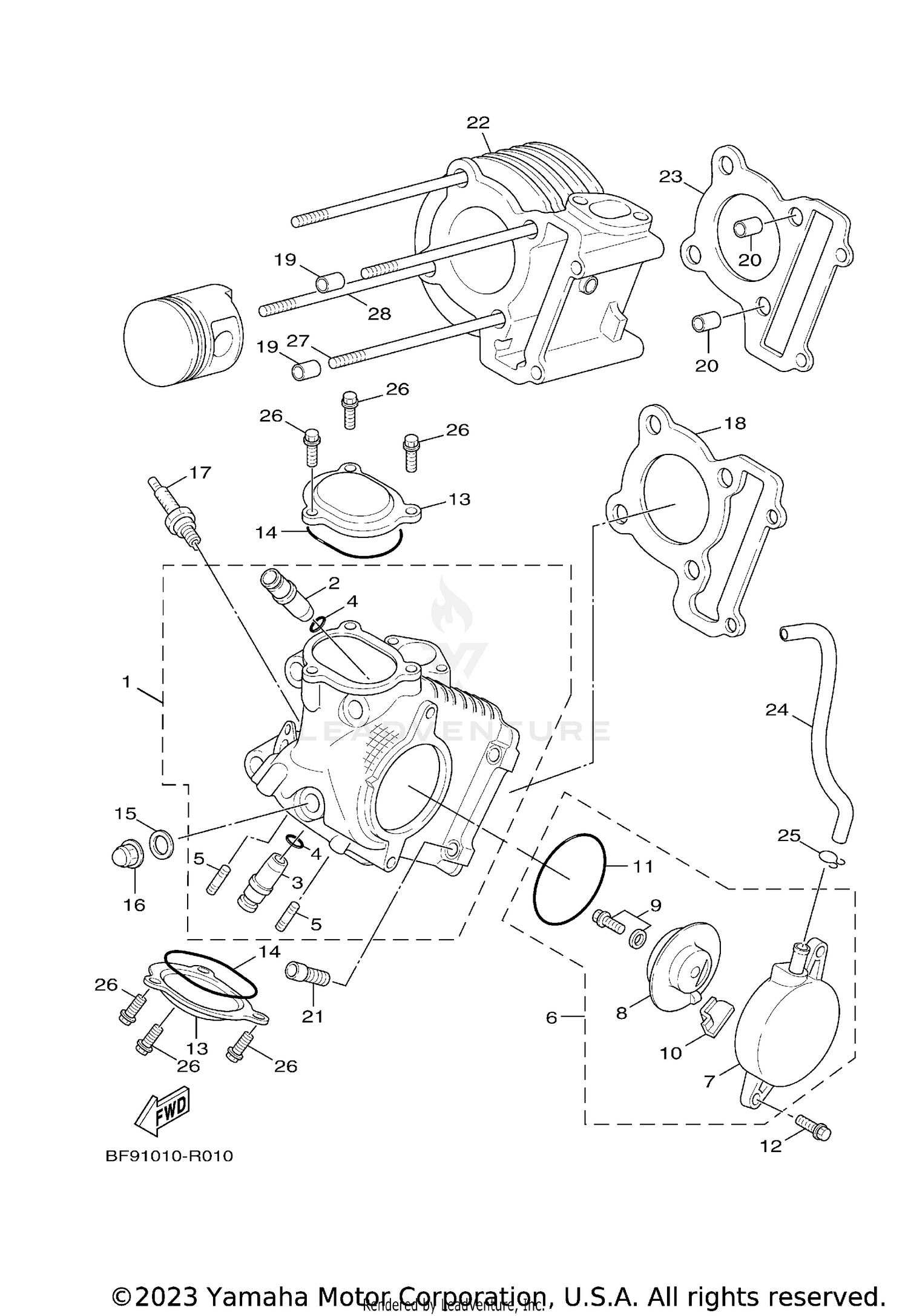

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
2JS-E1102-00-00
|
$176.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 1
5ML-11133-10-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE 2
5ML-11134-10-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-09802-00
Superseded by 93210-09418-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, STUD
90116-08806-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
BREATHER ASSY
5ML-E1160-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, CYLINDER HEAD SIDE 3
5ML-E1185-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, BREATHER
5ML-E1165-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
97517-06512-00
|
$0.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, LABYRINTH
4CW-E1155-00-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-71803-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95027-06020-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, CYLINDER HEAD SIDE 2
5ML-E1186-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93210-54008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08609-00
Superseded by 90201-080L7-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CROWN
90176-08816-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
CR7E NGK SPLUG 4PK
94700-00881-00
Superseded by CR7-E0000-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
GASKET, CYLINDER HEAD 1
5ML-E1181-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL
91810-14807-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, DOWEL
91810-14807-00
|
$1.50 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. SOCKET HEAD
91317-06100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CYLINDER 1
5ML-E1311-20-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, CYLINDER
5ML-E1351-20-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE
2JS-E4987-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-13042-00
Superseded by 90467-13M13-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, STUD 1
5ML-E1391-00-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, STUD 2
5ML-E1392-00-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
