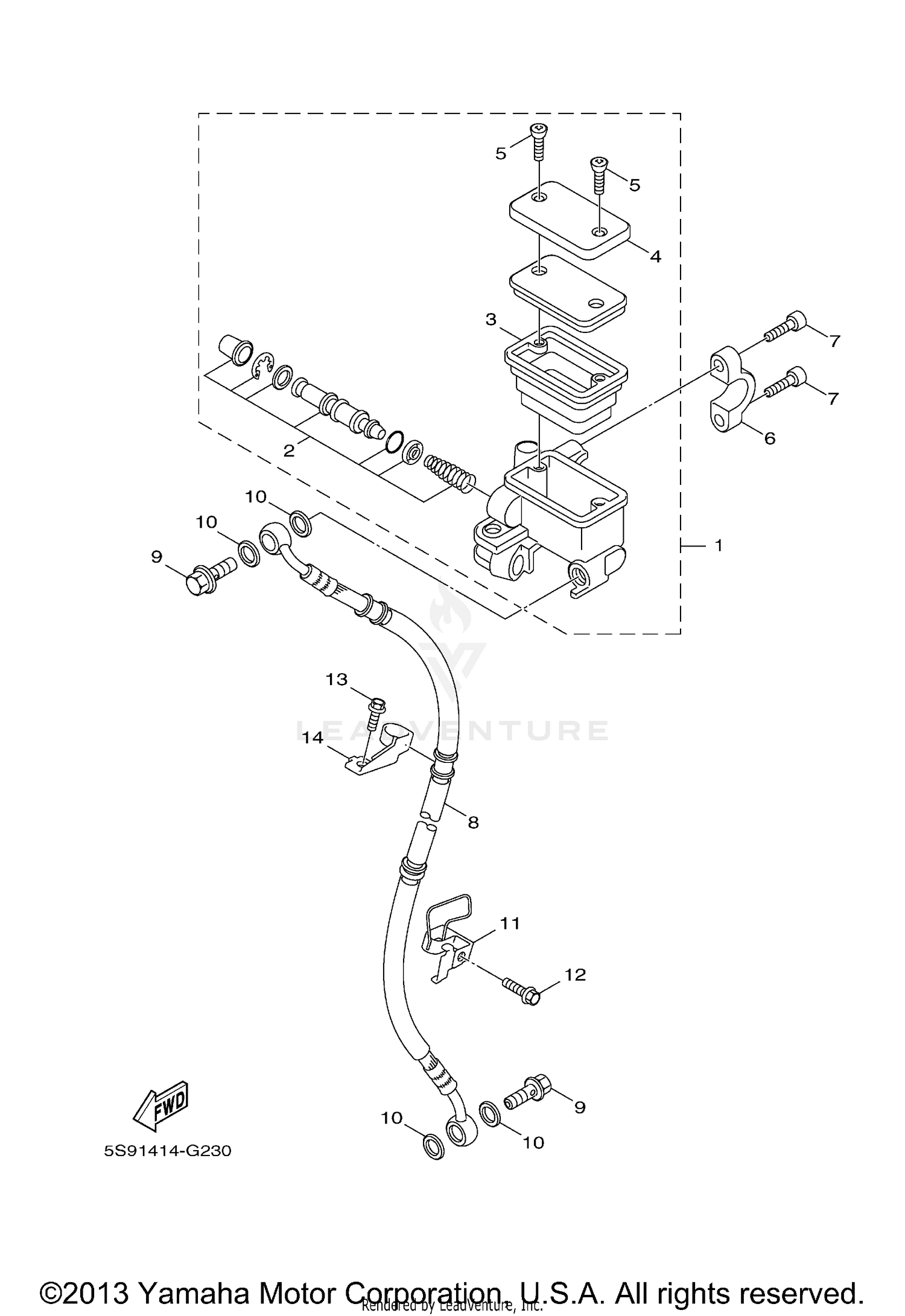

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
32S-F5870-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
5S9-W0041-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIAPHRAGM, RESERVOIR
5S9-F5854-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR
5S9-F5852-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FLAT HEAD
98707-04012-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
5S9-F5867-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, BRAKE 1
5S9-F5872-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, UNION
90401-10805-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER, BRAKE HOSE 1
5S9-F5875-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, BRAKE HOSE 2
5S9-F5876-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95807-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Unavailable |
|||
