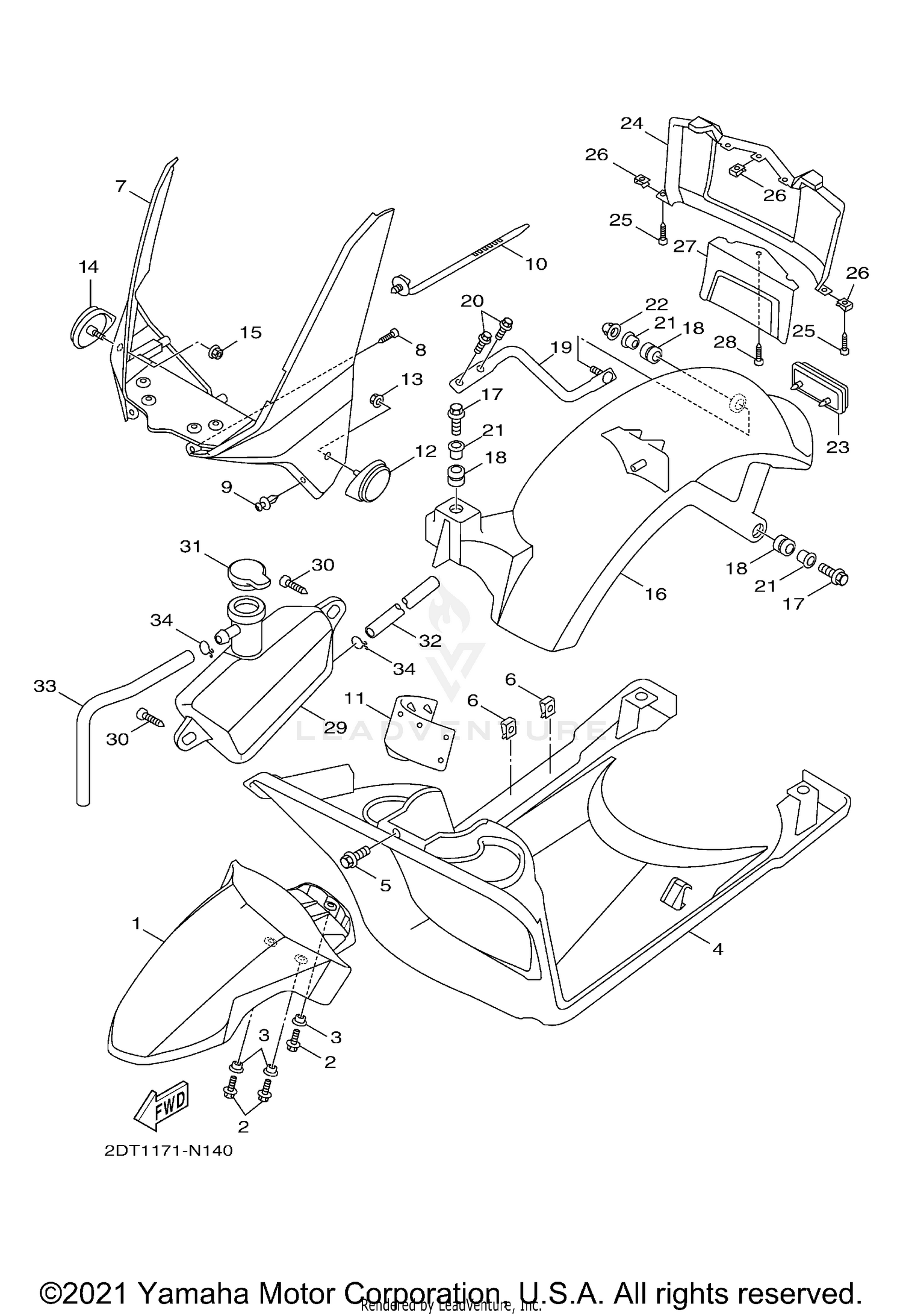

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
1CD-F1511-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT
1CD-F1511-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, WITH WASHER
90119-06821-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-068F8-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, INNER
1VC-F1552-10-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, INNER
1VC-F1552-20-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WITH WASHER
90119-06821-00
|
$1.60 | ||
|
Unavailable |
|||
|
#6
NUT, SPRING
90183-05816-00
Superseded by 90183-05827-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOLE, FENDER
1CD-F1519-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOLE, FENDER
1CD-F1519-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET
90269-06808-00
|
$1.50 | ||
|
Unavailable |
|||
|
#10
CLAMP
90464-30802-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP
1VC-F151B-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
REFLECTOR ASSY
1CD-H5110-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
FRONT REFLECTOR ASSY 2
1CD-H5120-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Unavailable |
|||
|
#16
FENDER, REAR
3B3-F1611-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-12237-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
STAY, FENDER 1
3B3-F1613-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-087L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CROWN
90176-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PANEL, SIDE
3B3-H5150-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUARD, MUD
1CD-F1629-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SPRING
90183-05816-00
Superseded by 90183-05827-00
|
$1.45 | ||
|
Unavailable |
|||
|
#27
GUARD, DRESS
1CD-F162S-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
TAPPING SCREW
90169-05800-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
TANK, RECOVERY
3B3-F1871-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$2.05 | ||
|
Unavailable |
|||
|
#31
CAP
5CA-F1815-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE 1
1CD-F1816-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIPE, OVERFLOW
5ST-F1877-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
