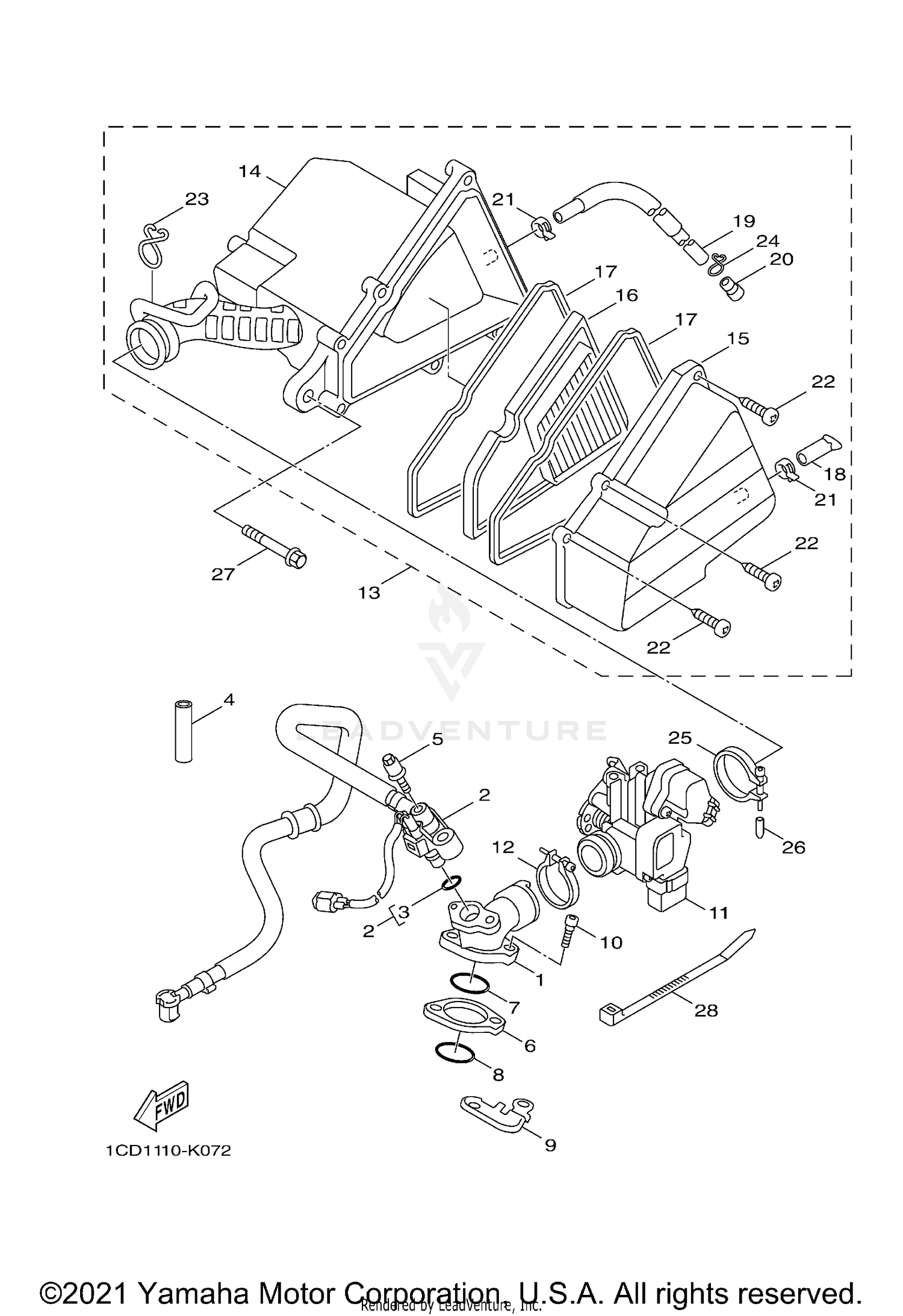

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MANIFOLD
13P-E3585-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE INLET ASSEMBLY
1CD-13930-00-00
|
$332.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
5CA-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR
1CD-E442F-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90109-06834-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT
3B3-E3595-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING(MF1)
93210-22803-00
Superseded by 93210-223A2-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING(MF1)
93210-22803-00
Superseded by 93210-223A2-00
|
$4.05 | ||
|
Unavailable |
|||
|
#9
PLATE
1CD-E4255-00-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
THROTTLE BODY ASSY
3B3-E3750-01-00
|
$276.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND
3B3-E3575-00-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
AIR CLEANER ASSY.
1CD-E4410-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
AIR CLEANER CASE COMP.
1CD-WE441-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ELEMENT, AIR CLEANER
3B3-WE442-01-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
ELEMENT, AIR CLEANER
3B3-E4451-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL
3B3-E4467-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE, DRAIN 2
3B3-E443G-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE, DRAIN 3
3B3-E443H-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, DRAIN
3B3-E4191-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-12804-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING
97707-50025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-16829-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-10803-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND
13P-E3474-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP
1CD-E4169-00-00
|
$0.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,FLANGE
95827-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-26800-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
