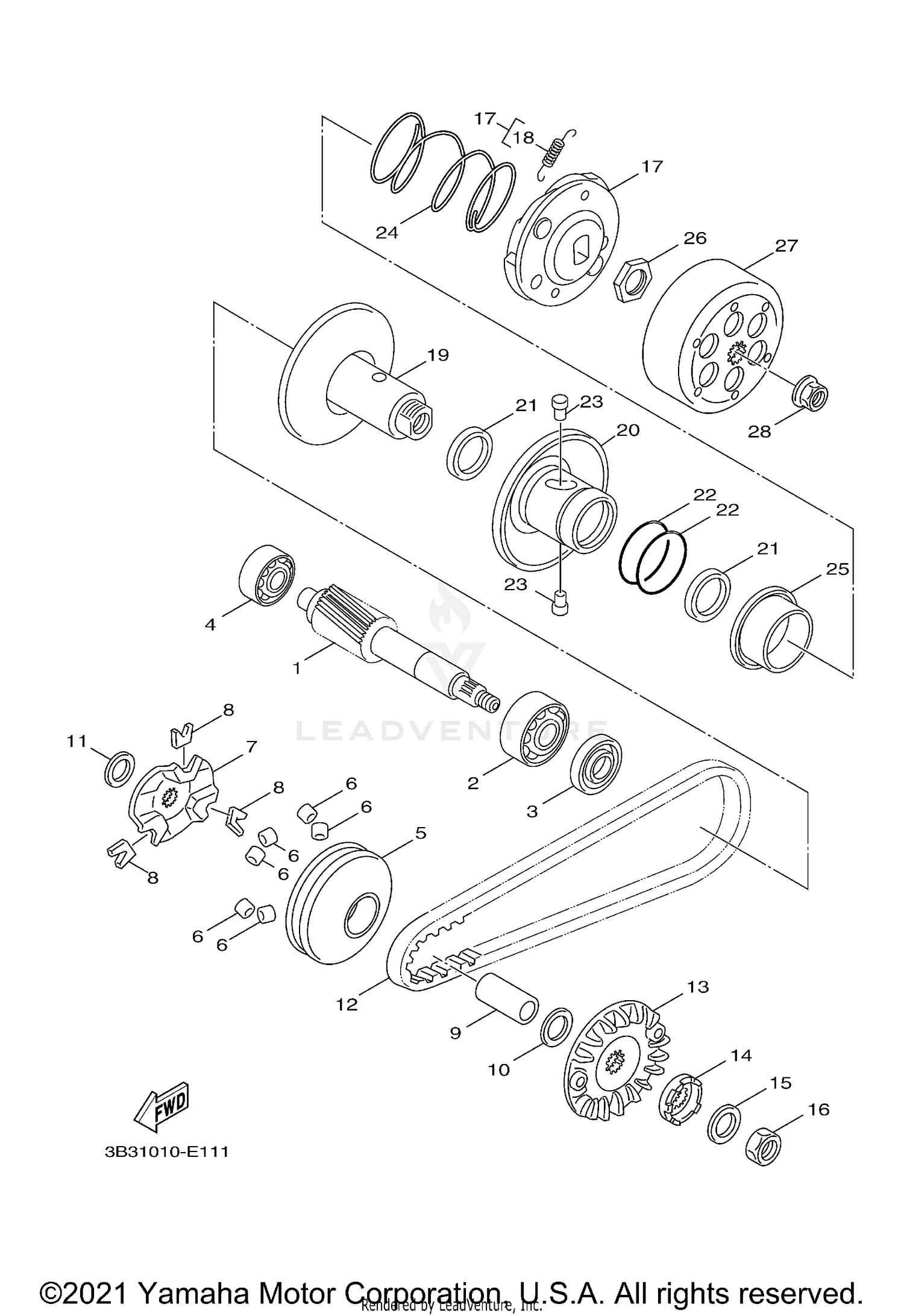

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
3B3-E6111-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-203YA-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-17806-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-200Y1-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
PRIMARY SLIDING SHEAVE COMP.
3XY-E7620-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WEIGHT
10B-E7632-00-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM
5ST-E7623-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
SLIDER
5ST-E7653-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-13804-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-13802-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-13801-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
V-BELT
3B3-E7641-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHEAVE, PRIMARY FIXED
5ST-E7611-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLUTCH, ONE WAY
3KJ-15657-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CONICAL SPRING
90208-10012-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-10219-00
Superseded by 90170-10011-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLUTCH CARRIER ASSY
3B3-E6620-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, CLUTCH WEIGHT 1
3B3-E6626-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
SECONDARY FIXED SHEAVE COMP.
3B3-E7660-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SECONDARY SLIDING SHEAVE
3B3-E7670-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL
3B3-E7465-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
5TL-E7465-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, GUIDE
5SU-E7664-00-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, COMPRESSION
5ST-E7683-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAT, SECONDARY SPRING
5SU-E7684-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
5SU-E7668-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLUTCH HOUSING COMP.
3B3-E6611-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-10609-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
