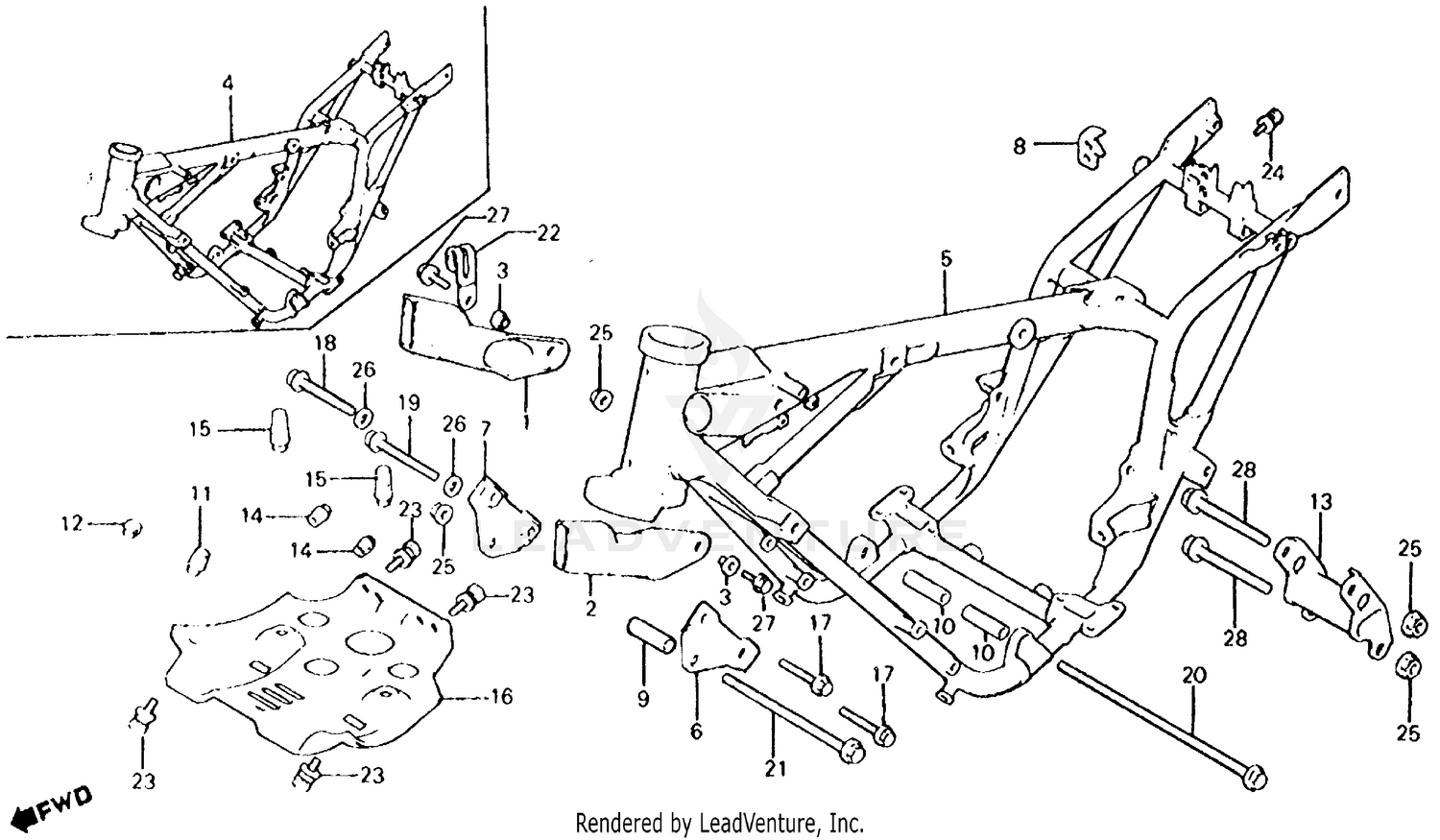

Frame 81-82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, R. (NOT AVAILABLE)
17215-961-000
|
$23.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, L. (NOT AVAILABLE)
17216-961-000
|
$21.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, RR. TURN SIGNAL
33601-428-000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
FRAME *R109* (PASSION RED)
50100-961-020ZA
|
$2,051.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, ENGINE HANGER *R109* (PASSION RED) (NOT AVAILABLE)
50155-961-000ZA
|
$14.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET B *R109* (PASSION RED) (NOT AVAILABLE)
50156-961-000ZA
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, SEAT LOCK (NOT AVAILABLE)
50223-961-000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR A, ENGINE MOUNTING (NOT AVAILABLE)
50251-961-000
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR B, ENGINE MOUNTING
50252-961-000
|
$12.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER A, STOPPER
50352-428-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER B, STOPPER
50354-428-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, RR. ENGINE *R109* (PASSION RED) (NOT AVAILABLE)
50354-961-000ZA
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER C, STOPPER
50355-434-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER D, STOPPER
50361-961-000
|
$4.69 | ||
|
Unavailable |
|||
|
#16
GUARD, ENGINE (NOT AVAILABLE)
50365-961-000
|
$112.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (8X35) (NOT AVAILABLE)
90003-961-000
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (8X56) (NOT AVAILABLE)
90004-961-000
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEAD (8X70)
90017-935-000
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, ENGINE HANGER (10X320) (NOT AVAILABLE)
90152-961-000
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, ENGINE HANGER (10X220) (NOT AVAILABLE)
90153-961-000
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, WIRE
91405-671-000
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-WASHER (8X12)
93481-08012-00
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT-WASHER (6X12)
93402-06012-08
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT-WASHER (6X12)
93412-06012-08
Superseded by 93402-06012-08
|
$1.62 | ||
|
Unavailable |
|||
|
#24
BOLT-WASHER (6X12)
93492-06012-08
Superseded by 93402-06012-08
|
$1.62 | ||
|
Unavailable |
|||
|
#25
NUT, FLANGE (10MM)
94050-10000
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN (8MM)
94101-08000
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X10)
95700-06010-08
|
$1.60 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (10X100)
95700-10100-00
Superseded by 95701-10100-00
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (10X100)
95701-10100-00
|
$3.16 | ||
|
Unavailable |
|||
