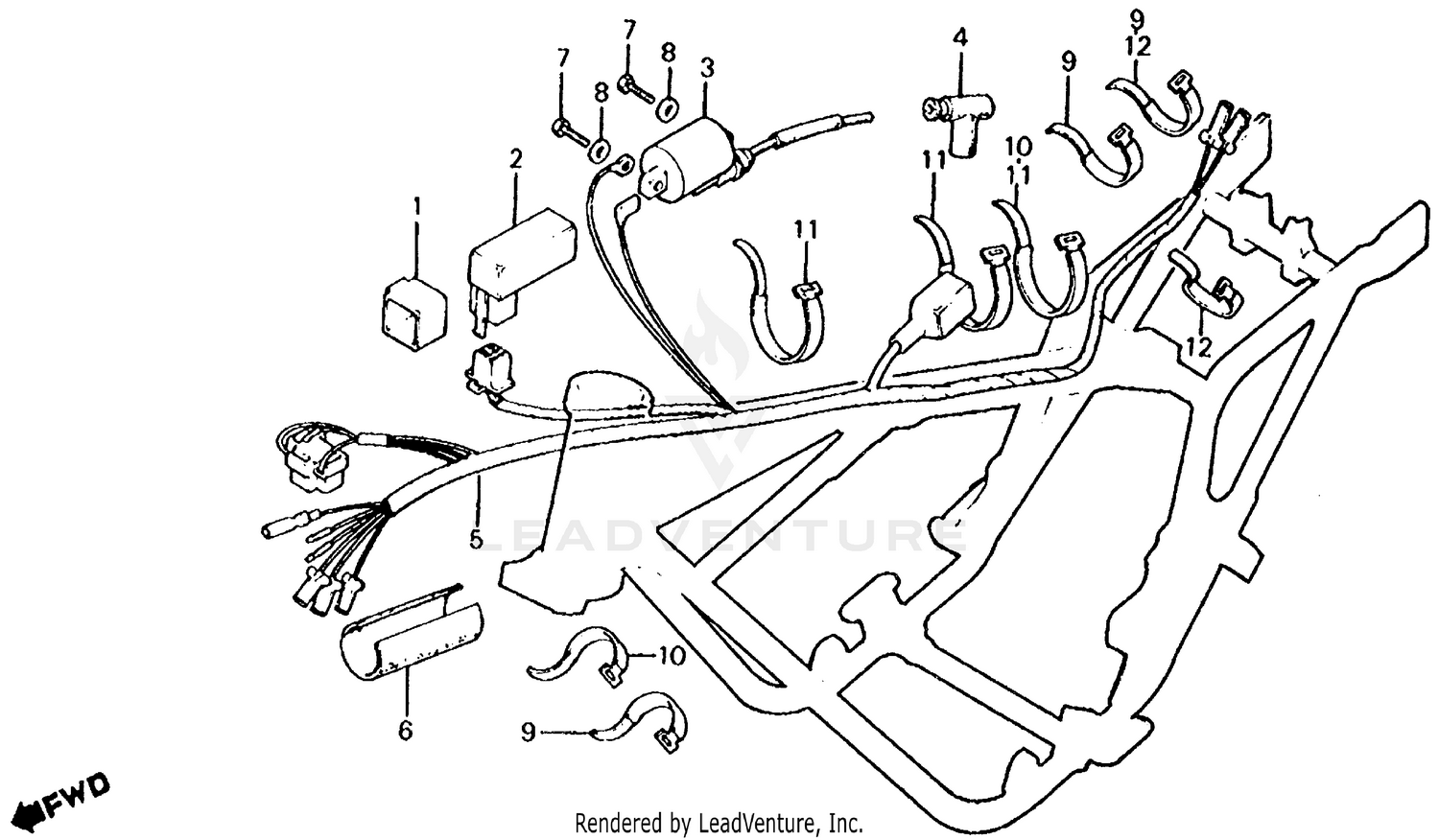

Wire Harness 81-82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
30401-961-000
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30410-961-003
|
$94.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
COIL ASSY., IGNITION
30500-GA7-405
|
$71.01 | ||
|
Unavailable |
|||
|
#3
COIL ASSY., IGNITION
30500-961-000
Superseded by 30500-GA7-405
|
$71.01 | ||
|
Unavailable |
|||
|
#3
COIL ASSY., IGNITION
30500-964-000
Superseded by 30500-GA7-405
|
$71.01 | ||
|
Unavailable |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-KA5-771
|
$35.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY., NOISE SUPPRESSOR
30700-169-721
Superseded by 30700-KA5-771
|
$35.45 | ||
|
Unavailable |
|||
|
#5
WIRE HARNESS (NOT AVAILABLE)
32100-961-010
|
$46.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, CONNECTOR (NOT AVAILABLE)
32103-961-010
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. (5X16) (SOURCE: VINTAGE PARTS INC.)
92000-05016-0H
Superseded by 92101-05016-0H
|
$0.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. (5X16) (SOURCE: VINTAGE PARTS INC.)
92101-05016-0H
|
$0.47 | ||
|
Unavailable |
|||
|
#8
WASHER, PLAIN (5MM)
94101-05800
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND B1, WIRE
32161-404-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
|
$2.53 | ||
|
Unavailable |
|||
|
#10
BAND A2, CABLE
95014-61200
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND A3, WIRE
95014-61300
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND B2, CABLE HARNESS
95014-62200
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
