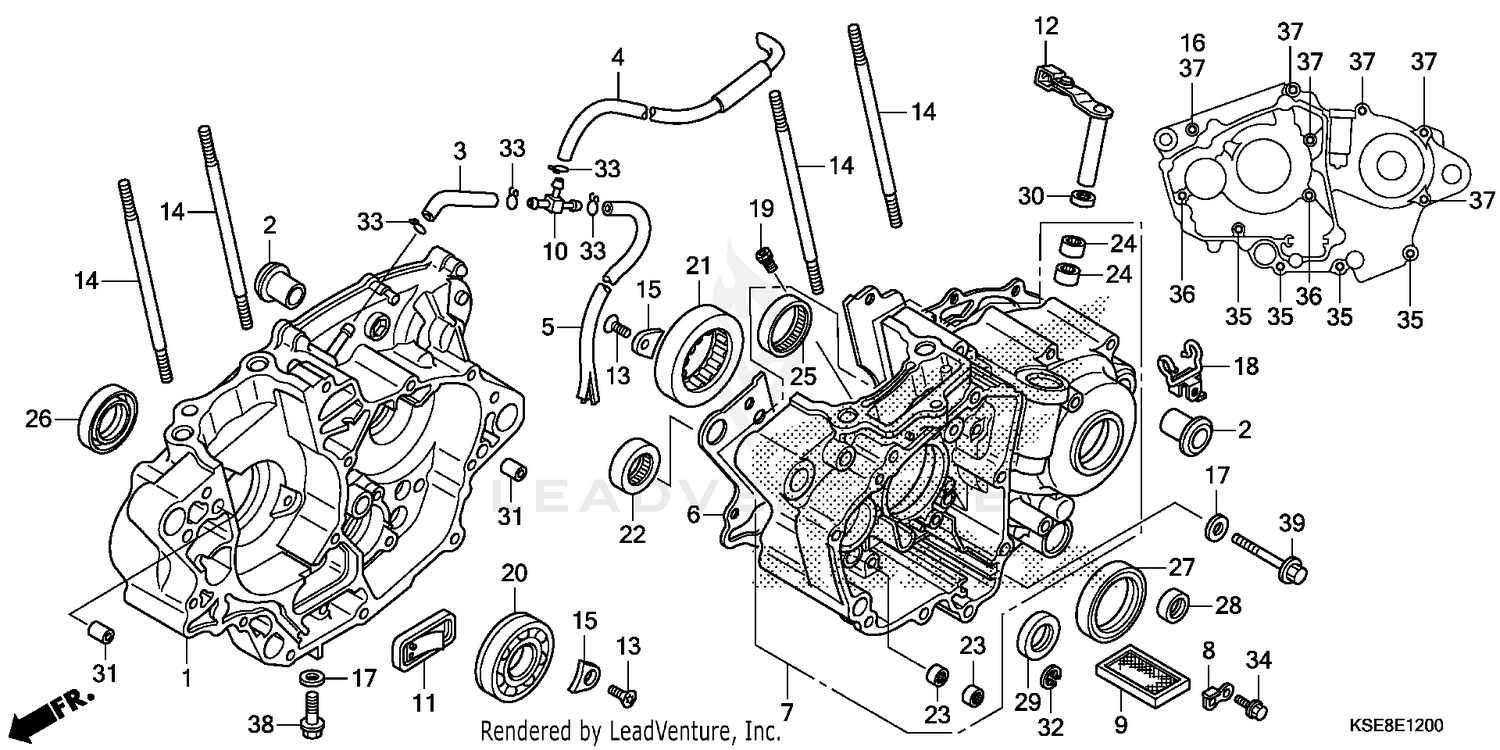

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-KSE-670
|
$374.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, ENGINE HANGER
11104-KSE-670
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE A, BREATHER
11105-KSE-670
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE B, BREATHER
11106-KSE-670
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE C, BREATHER
11107-KSE-670
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CRANKCASE
11191-KSE-671
Superseded by 11191-KSE-672
|
$19.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
CRANKCASE, L.
11200-KSE-A70
|
$396.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CAM CHAIN GUIDE
11206-KRN-670
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREEN, OIL FILTER
15421-KK0-000
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT, THREE WAY
16961-MCT-010
|
$13.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE, REED
18601-MBW-003
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, CLUTCH LIFTER
22810-KSE-670
|
$42.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, SPECIAL FLAT (6X17)
90001-MEN-850
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD (9X116)
90031-KSE-600
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, BEARING HOLDER
90441-KRN-670
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SEALING (8MM)
90474-333-000
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE, TUBE
90610-MEB-670
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
JET, OIL (#80)
90901-MCF-000
|
$13.01 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, SPECIAL RADIAL BALL (63/22) (NTN)
91001-KSE-671
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, SPECIAL ROLLER (NTN)
91002-KSE-671
|
$50.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, ROLLER (18X29X14) (NTN)
91004-KSE-671
|
$16.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (9MM) (NTN)
91006-HA0-003
|
$15.43 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, NEEDLE (1010) (TOYO)
91021-148-004
|
$26.88 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, SHELL (33X38X8) (TOYO)
91022-KA4-740
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL (32X48X7.5) (ARAI)
91201-KSE-671
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL (38X52X7) (ARAI)
91201-MEB-671
|
$15.23 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL (14X22X5) (NOK)
91203-KA4-771
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (18X30X5) (ARAI)
91203-KSE-671
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (10X17X3) (NOK)
91204-KSE-671
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP (INNER) (30MM)
94520-30100
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP, TUBE (B10)
95002-02100
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X45)
96001-06045-00
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X55)
96001-06055-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X70)
96001-06070-00
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (8X35)
96300-08035-00
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (8X80)
96300-08080-00
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
