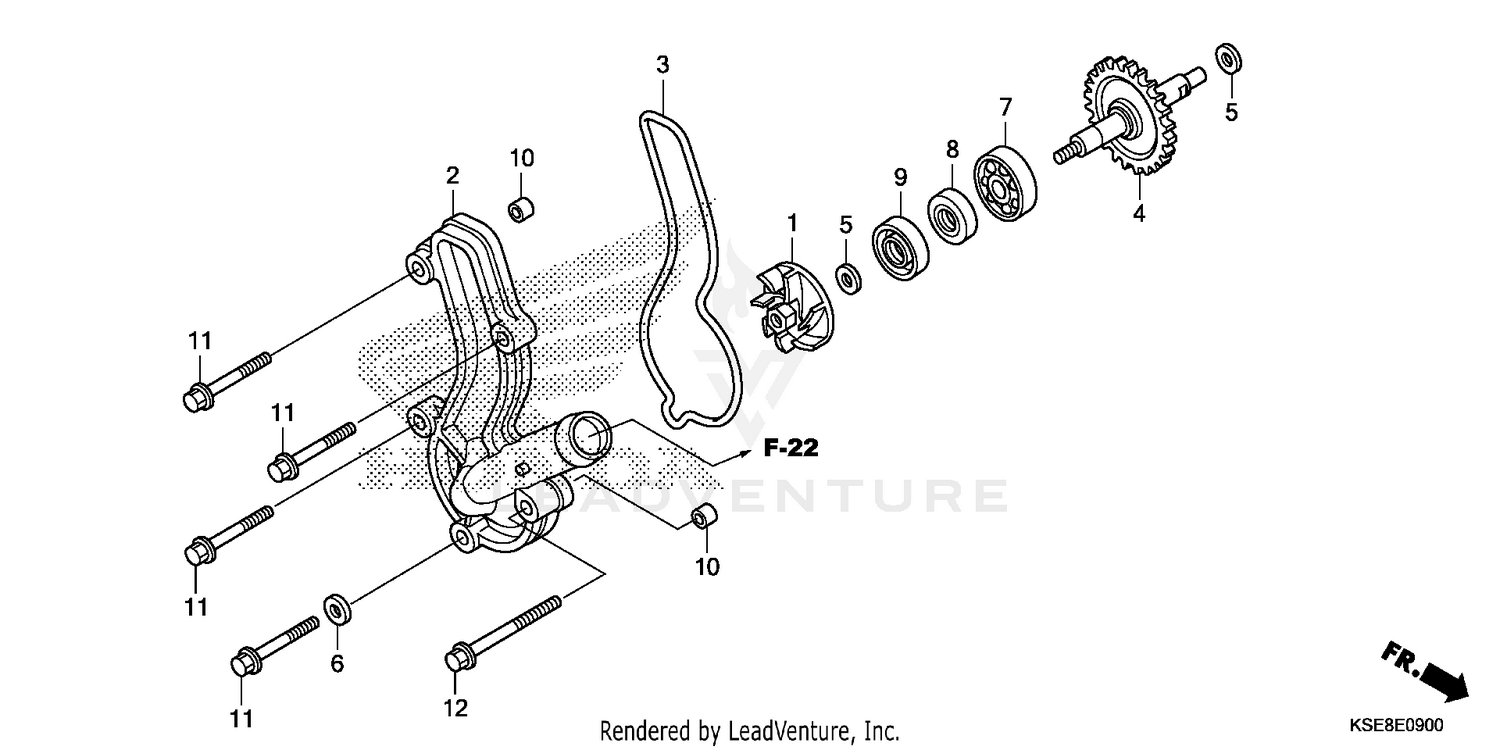

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IMPELLER, WATER PUMP
19215-KSE-670
|
$50.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, WATER PUMP
19221-KSE-670
|
$93.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, WATER PUMP
19226-KSE-670
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, WATER PUMP (24T)
19240-KSE-670
|
$129.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SEALING (7MM)
90447-KE1-000
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, RADIAL BALL (12X28X7) (TOYO)
91001-KA4-003
|
$19.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL (12X22X5)
91201-148-003
Superseded by 91201-965-000
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL (12X22X5)
91201-965-000
|
$4.87 | ||
|
Unavailable |
|||
|
#9
SEAL, WATER PUMP
91211-KSE-671
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL (8X7)
91320-KE1-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X28)
96001-06028-00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X35) (Honda Code 2112209)
96001-06035-00
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
