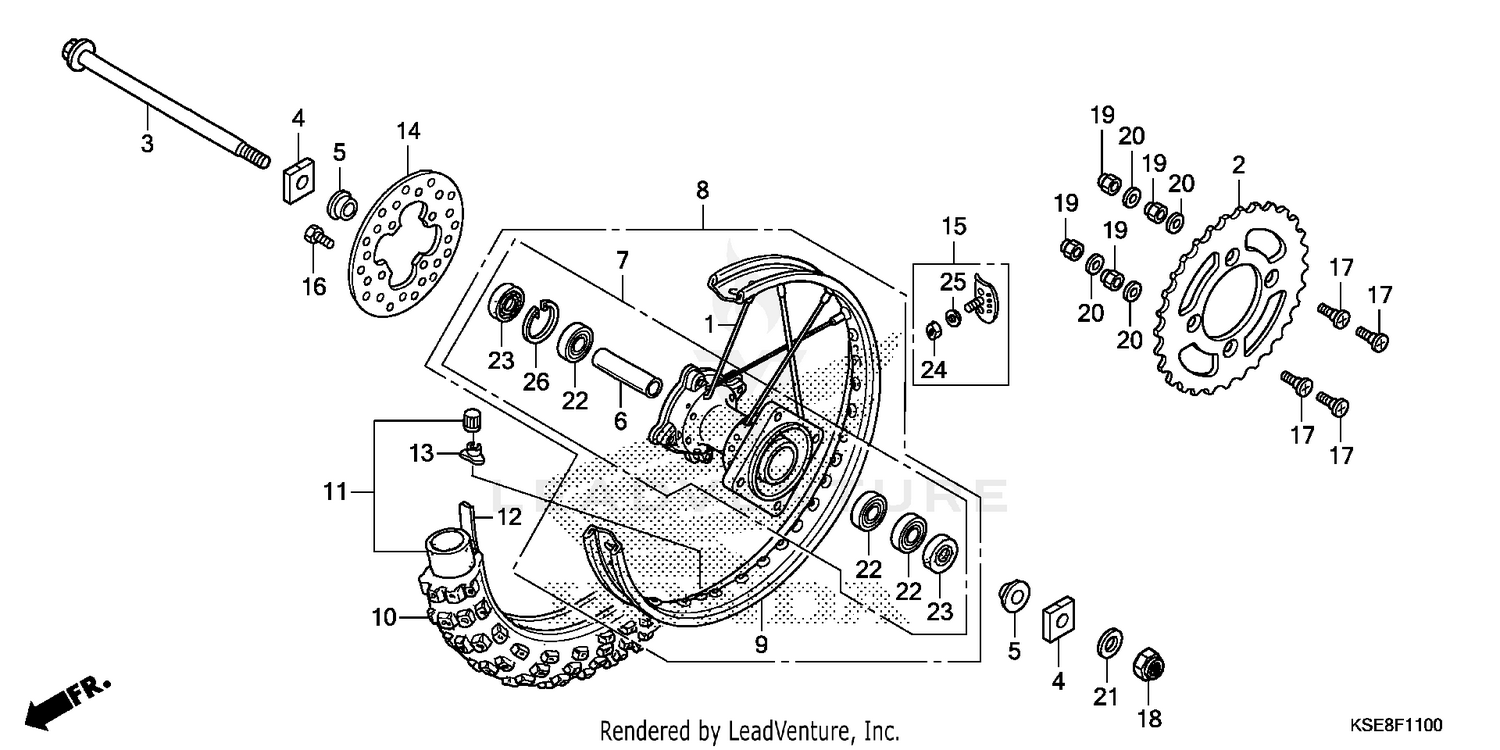

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET, RR.
06420-KSE-840
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL (56T) (SUNSTAR)
41201-GBF-K10
|
$146.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL (55T) (SUNSTAR)
41201-GBF-860
|
$204.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (56T)
41201-KSE-840
|
$63.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL (57T) (SUNSTAR)
41202-GBF-860
|
$167.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-KSE-000
|
$31.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RR. AXLE
42305-KSE-000
|
$20.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. WHEEL SIDE
42311-KSE-000
|
$18.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, RR. WHEEL DISTANCE
42620-KSE-000
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
HUB SUB-ASSY., RR.
42635-KSE-670
|
$233.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB-ASSY., RR.
42650-KSE-840
|
$607.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIM, RR. WHEEL
42701-KSE-841
|
$269.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
TIRE (90/100-16 52M)
42711-KSE-F61
Superseded by 42711-KSE-F62
|
$86.96 | ||
|
Unavailable |
|||
|
#11
TUBE, TIRE (90/100-16) (DUNLOP)
42712-GBF-861
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLAP, TIRE (1.85X16) (DUNLOP)
42713-GBF-861
|
$6.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, VALVE
42714-KA3-710
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#14
DISK, RR. BRAKE
43351-KSE-000
|
$176.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, BEAD (1.85) STOPPER, BEAD (1.85B)
42715-KA2-680
|
$37.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, DISK (6X17)
90105-KAE-870
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, FLAT (8X31)
90125-KA4-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U (16MM)
90305-GW2-711
|
$18.97 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U (8MM) (FUSE RASHI)
90309-ML3-791
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (8MM)
90465-MC4-000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (16MM)
90501-GBM-750
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6003)
91051-KSE-003
|
$13.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (23X35X7)
91205-VM6-003
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEX. (8MM)
94001-08000-0S
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING (8MM)
94111-08000
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP (INNER) (35MM)
94520-35000
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
