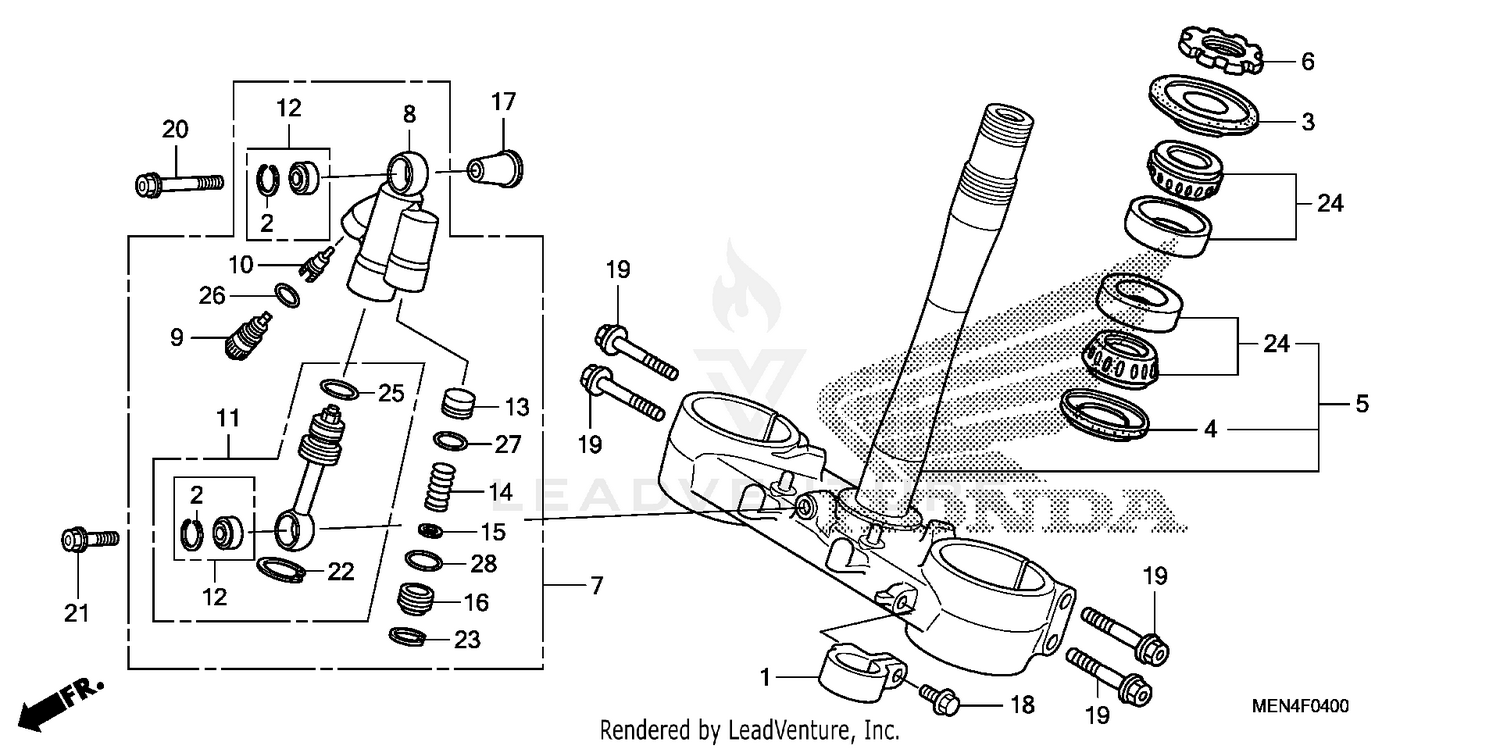

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, FR. BRAKE HOSE
45468-MEN-A30
|
$15.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING, STOPPER
52487-MEN-A11
|
$11.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
DUST SEAL, STEERING HEAD (ARAI)
53214-KZ3-861
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
DUST SEAL, STEERING HEAD (ARAI)
53214-KZ4-701
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
STEM SUB-ASSY., STEERING
53219-MEN-A30
|
$535.66 | ||
|
Available to order. Add to View Price |
|||
|
#6
THREAD, STEERING HEAD TOP
53229-KZ4-J30
|
$21.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER ASSY., STEERING
53700-MEN-A31
|
$395.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, DAMPER
53701-KRN-A31
|
$144.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, PLUG
53711-MEN-A11
|
$35.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIECE, ADJUST
53712-MEN-A11
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PISTON
53721-KRN-A31
|
$194.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
53731-MEN-A11
|
$96.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON, FREE
53754-MEN-A11
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, RETURN
53755-MEN-A11
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
53756-MEN-A11
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP, END
53757-MEN-A11
|
$9.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, STEERING DAMPER
53782-MEN-A10
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16)
90106-MJ0-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X45)
90107-KZ4-J40
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (7X51.5)
90124-MEN-A10
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (7X25)
90125-MEN-A10
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP (23.5)
90651-MEN-A11
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP (17.3)
90652-MEN-A11
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, HEAD PIPE
91051-MEN-A31
|
$33.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (18.8X1.9)
91258-KZ3-B01
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (9.5X1.5)
91351-MEN-A11
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (11X1.9)
91352-MEN-A11
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (13.5X1.5)
91353-MEN-A11
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
