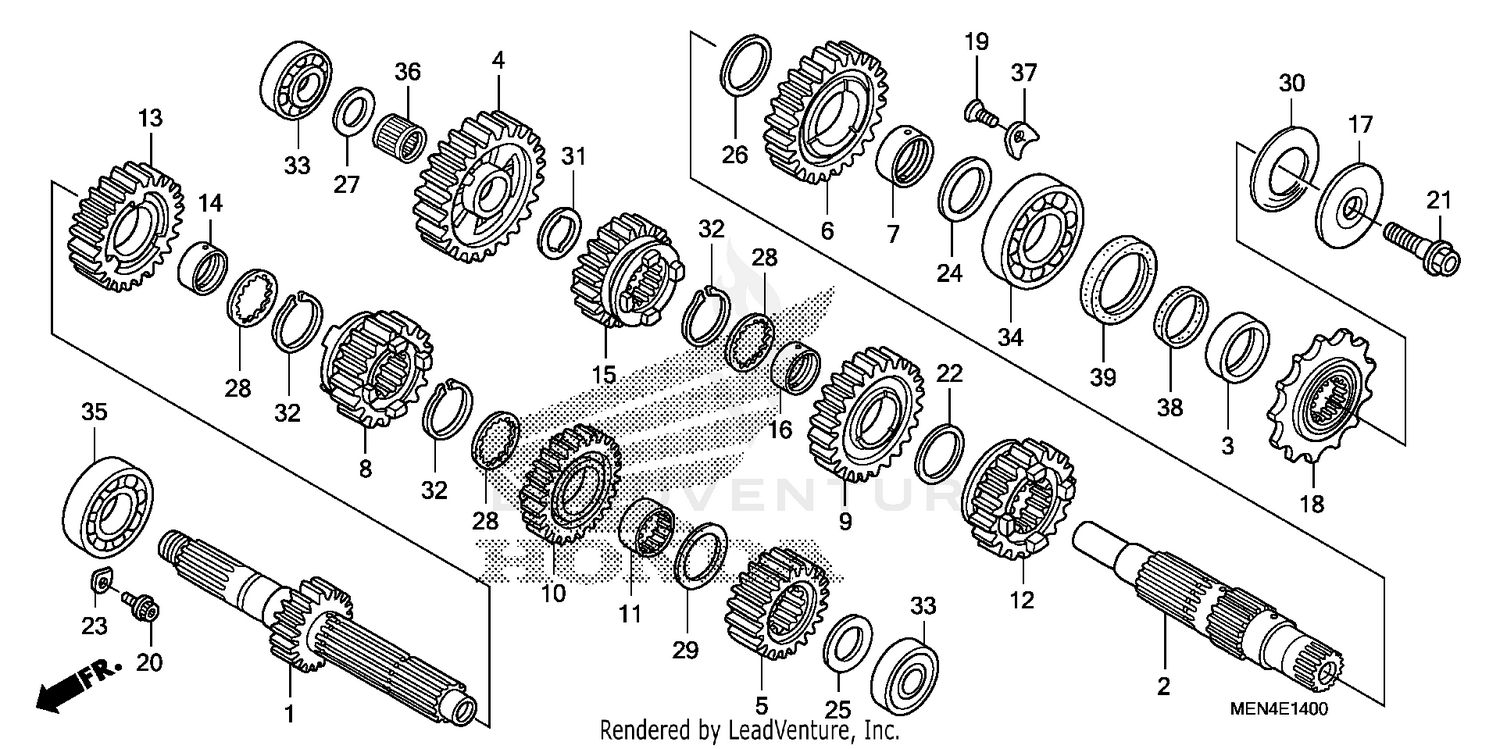

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (15T)
23210-MEN-A30
|
$152.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
COUNTERSHAFT
23220-MEN-A30
|
$163.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, COUNTERSHAFT
23225-MEN-730
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT LOW (27T)
23411-MEN-A30
|
$117.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND (17T)
23421-MEN-A31
|
$56.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (25T)
23431-MEN-A32
|
$117.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, COUNTERSHAFT SECOND GEAR
23432-MEN-A30
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, MAINSHAFT THIRD (17T)
23441-MEN-A30
|
$121.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT THIRD (21T)
23451-MEN-A30
|
$100.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT FOURTH (20T)
23461-MEN-A31
|
$112.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, MAINSHAFT FOURTH GEAR
23462-MEY-670
|
$14.34 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT FOURTH (21T)
23471-MEN-A30
|
$109.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FIFTH (22T)
23481-MEN-A30
|
$111.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (25X28X10)
23482-MEN-A00
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (20T)
23491-MEN-A30
|
$114.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR (25X28X11)
23492-KY2-000
|
$24.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, DRIVE SPROCKET
23802-KSC-670
|
$17.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPROCKET, DRIVE (13T)
23802-MEN-730
|
$45.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, SPECIAL FLAT (6X12)
90003-KRN-670
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE SOCKET (6X14)
90071-MF5-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, UBS (8X33)
90112-413-000
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (25X32X1.0)
90401-HP1-670
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, BEARING HOLDER
90441-KA4-700
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (25.1X36X1.5)
90445-ML3-871
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (17.2MM)
90446-KA4-740
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, THRUST (27.2X35)
90446-ML3-870
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, THRUST (17.2MM)
90446-357-000
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, THRUST INVOLUTE (25X31X1.5)
90451-MEY-670
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER C, THRUST (25MM)
90459-357-000
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING (24MM)
90501-KSC-670
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, THRUST (19MM)
90554-KA5-680
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP (OUTER) (25MM)
90602-259-010
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6203U)
91001-KSK-671
|
$13.01 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (24X56X14) (TOYO)
91001-ML3-873
|
$21.92 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, RADIAL BALL SPECIAL (6205U)
91003-MEN-A31
|
$19.10 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, NEEDLE (19X22X9.8)
91007-MEN-731
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLATE, COUNTERSHAFT BEARING
91012-KA3-710
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#38
D-RING (23.75MM) (ARAI)
91201-ML3-873
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#39
OIL SEAL (31X40X7) (ARAI)
91207-ML3-871
|
$12.35 | ||
|
Available to order. Add to View Price |
|||
