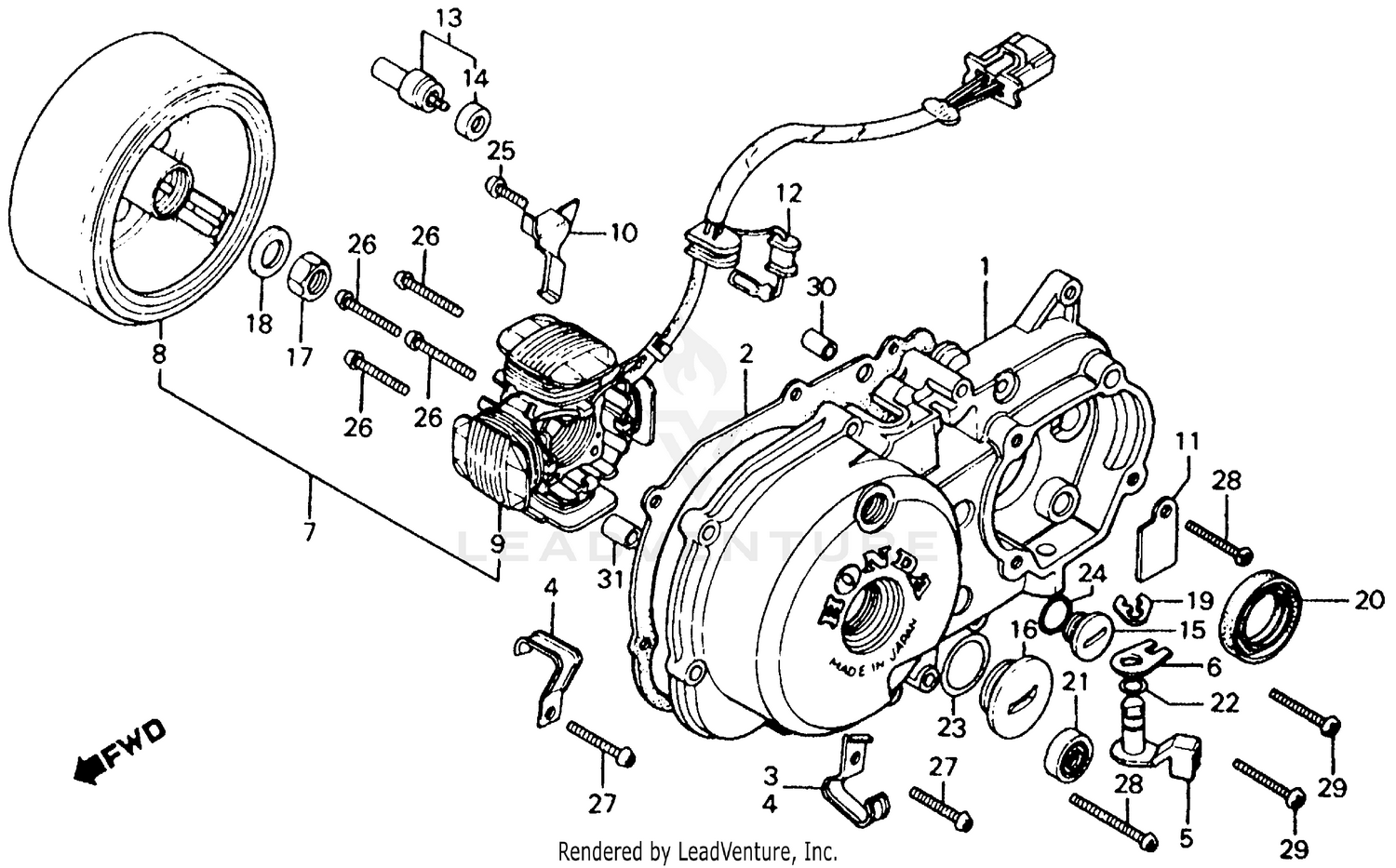

Left Crankcase Cover + Alternator 81-86 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-459-772
Superseded by 11341-459-880
|
$146.08 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, L. CRANKCASE
11341-459-880
|
$146.08 | ||
|
Unavailable |
|||
|
#2
GASKET, L.
11395-459-307
Superseded by 11395-459-963
|
$17.90 | ||
|
Unavailable |
|||
|
#2
GASKET, L.
11395-459-771
Superseded by 11395-459-963
|
$17.90 | ||
|
Unavailable |
|||
|
#2
GASKET, L.
11395-459-961
Superseded by 11395-459-963
|
$17.90 | ||
|
Unavailable |
|||
|
#4
CLAMP (NOT AVAILABLE)
16237-102-770
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, SUB-CHANGE (NOT AVAILABLE)
24821-053-030
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM, SUB-CHANGE
24831-053-010
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
ALTERNATOR ASSY.
31100-459-711
|
$324.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLYWHEEL (NIPPON)
31110-459-711
Superseded by 31110-459-911
|
$242.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLYWHEEL (NIPPON)
31110-459-911
|
$242.41 | ||
|
Unavailable |
|||
|
#9
STATOR
31120-459-711
|
$144.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)
32961-459-770
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PROTECTOR, NEUTRAL SWITCH CABLE
32980-459-770
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)
32981-121-003
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
CONTACT ASSY., NEUTRAL SWITCH
35750-071-030
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER, NEUTRAL SWITCH
35752-071-330
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, ALTERNATOR
90084-428-000
Superseded by 90084-471-000
|
$11.65 | ||
|
Unavailable |
|||
|
#15
CAP, ALTERNATOR
90084-471-000
|
$11.65 | ||
|
Unavailable |
|||
|
#16
CAP (30MM)
90087-428-000
Superseded by 90087-KF9-900
|
$16.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT (14MM)
90241-459-000
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN (14MM)
90487-459-000
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP (8.6MM)
90601-053-010
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (31X43X8)
91202-459-771
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (11.6X24X10) (ARAI)
91203-001-000
Superseded by 91208-KB4-671
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (11.6X24X10) (ARAI)
91203-001-020
Superseded by 91208-KB4-671
|
$4.87 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (11.6X24X10) (ARAI)
91204-035-000
Superseded by 91208-KB4-671
|
$4.87 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (11.6X24X10) (ARAI)
91204-035-003
Superseded by 91208-KB4-671
|
$4.87 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (11.6X24X10) (ARAI)
91204-121-000
Superseded by 91208-KB4-671
|
$4.87 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (11.6X24X10) (ARAI)
91204-121-005
Superseded by 91208-KB4-671
|
$4.87 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (11.6X23X10) (ARAI)
91208-KB4-671
|
$4.87 | ||
|
Unavailable |
|||
|
#22
O-RING (7.5X15)
91301-053-000
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (7.5X1.5)
91302-HB3-004
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (27.4X2.4) (ARAI)
91302-567-003
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (27.4X2.4) (ARAI)
91304-MG7-003
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (13.8X2.5)
91303-MG7-003
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (13.8X2.5)
91303-377-000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (13.8X2.5)
91303-426-000
Superseded by 91303-MG7-003
|
$3.75 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN (5X12)
93500-05012-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (5X32)
93500-05032-0A
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (6X25)
93500-06025
Superseded by 93500-06025-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (6X25)
93500-06025-0A
|
$1.20 | ||
|
Unavailable |
|||
|
#28
SCREW, PAN (6X35)
93500-06035-0A
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (6X40)
93500-06040-0A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN A, DOWEL (8X12)
94301-08120
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN A, DOWEL (10X14)
94301-10140
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN A, DOWEL (10X14)
90703-HC4-000
Superseded by 94301-10140
|
$2.47 | ||
|
Unavailable |
|||
