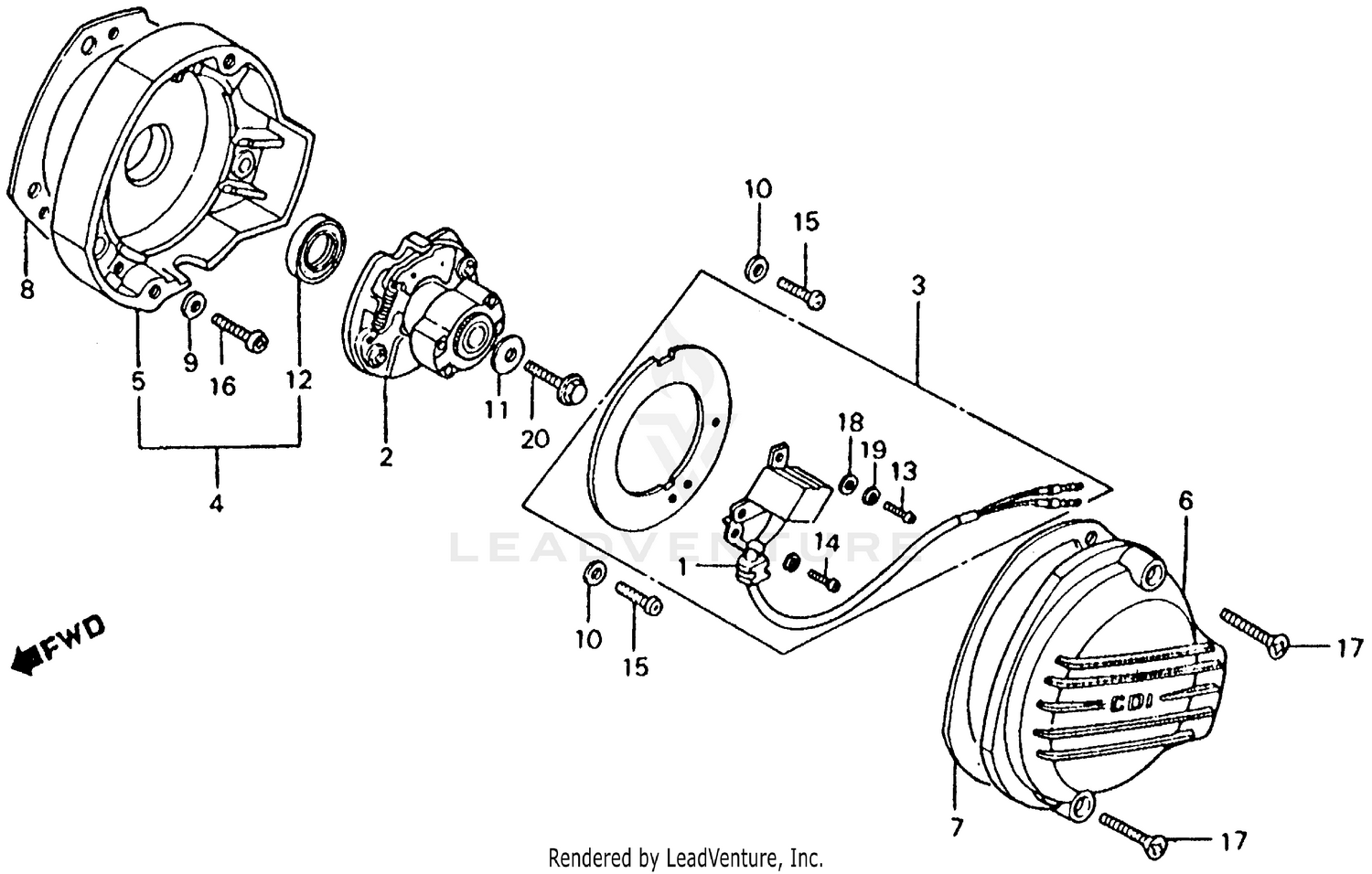

Spark Advancer + Pulse Generator 82-86 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, PRIMARY WIRE
30201-437-300
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
ADVANCER ASSY., SPARK
30220-459-751
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GENERATOR ASSY., PULSE
30300-459-710
Superseded by 30300-459-711
|
$39.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
GENERATOR ASSY., PULSE
30300-459-711
|
$39.51 | ||
|
Unavailable |
|||
|
#4
BASE ASSY., PULSE GENERATOR (NOT AVAILABLE)
30360-121-740
|
$39.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
BASE, PULSE GENERATOR (NOT AVAILABLE)
30361-121-740
|
$26.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, PULSE GENERATOR (NOT AVAILABLE)
30371-121-740
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
30391-121-306
Superseded by 30391-121-631
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
30391-121-630
Superseded by 30391-121-631
|
$2.59 | ||
|
Unavailable |
|||
|
#7
GASKET
30391-121-740
Superseded by 30391-121-631
|
$2.59 | ||
|
Unavailable |
|||
|
#8
GASKET, POINT BASE
30392-121-306
Superseded by 30392-121-631
|
$1.64 | ||
|
Unavailable |
|||
|
#8
GASKET, POINT BASE
30392-121-630
Superseded by 30392-121-631
|
$1.64 | ||
|
Unavailable |
|||
|
#8
GASKET, POINT BASE
30392-121-690
Superseded by 30392-121-631
|
$1.64 | ||
|
Unavailable |
|||
|
#9
WASHER, SEALING (6MM)
90441-028-010
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (5MM)
90482-028-000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPARK ADVANCER SETTING
90486-028-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (13X22X5)
30362-028-000
Superseded by 91201-028-005
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (13X22X5)
91201-028-000
Superseded by 91201-028-005
|
$9.74 | ||
|
Unavailable |
|||
|
#12
OIL SEAL (13X22X5)
91201-028-003
Superseded by 91201-028-005
|
$9.74 | ||
|
Unavailable |
|||
|
#12
OIL SEAL (13X22X5)
91201-028-005
|
$9.74 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN (4X6)
93500-04006-0H
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN (4X6)
93500-04006-1H
Superseded by 93500-04006-0H
|
$0.90 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN (4X8)
93500-04008-0H
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN (4X8)
93500-04008-1H
Superseded by 93500-04008-0H
|
$0.90 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN (5X10)
93500-05010-0A
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X16)
93500-06016
Superseded by 93500-06016-0A
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (6X16)
93500-06016-0A
|
$1.15 | ||
|
Unavailable |
|||
|
#17
SCREW, OVAL (5X22)
93700-05022-0B
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN (4MM)
94101-04800
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING (4MM)
94111-04800
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X25)
95700-06025-00
Superseded by 95701-06025-00
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.79 | ||
|
Unavailable |
|||
