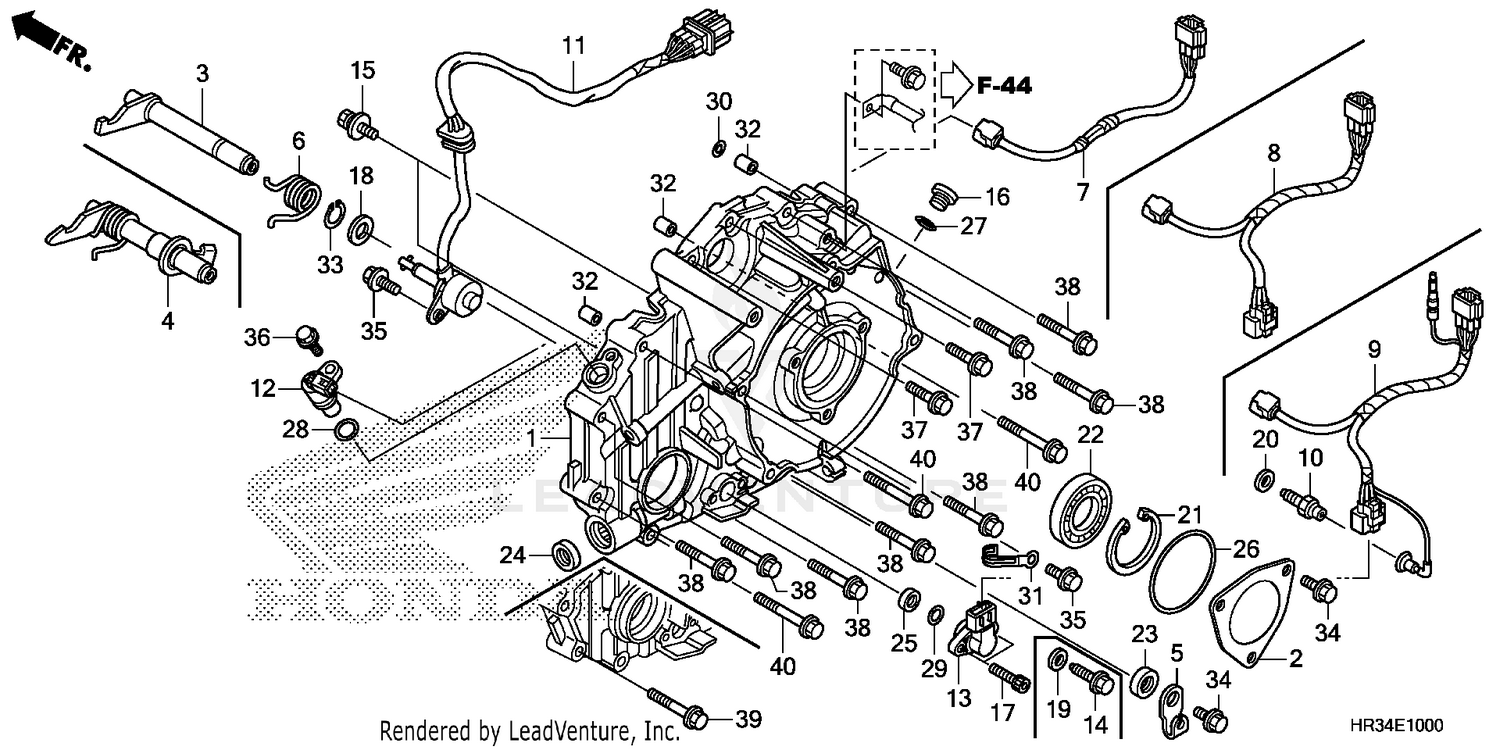

2014 Honda FOURTRAX RANCHER 4X4 AUTOMATIC DCT REAR CRANKCASE COVER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER ASSY., RR. CRANKCASE
11400-HR3-A20
Superseded by 11400-HR3-A21
|
$263.35 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER ASSY., RR. CRANKCASE
11400-HR3-A21
|
$263.35 | ||
|
Unavailable |
|||
|
#2
CAP, RR. COVER
11342-HP5-600
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT A, REVERSE STOPPER
24860-HP5-000
|
$23.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
LEVER, REVERSE STOPPER
24865-HP5-600
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, REVERSE STOPPER
24867-HP5-600
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-HARNESS, ENGINE
32101-HR3-A20
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH ASSY., CHANGE
35759-HR3-A41
|
$48.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY., SPEED (TDK-EPC)
37700-HP5-601
Superseded by 37700-KZR-601
|
$53.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY., SPEED (TDK-EPC)
37700-KZR-601
|
$53.38 | ||
|
Unavailable |
|||
|
#14
BOLT, SPECIAL FLANGE (8X24.5)
90009-HP5-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (6X12) (Honda Code 2551760)
90021-MM5-000
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP (14MM)
90084-KY2-000
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (12MM)
90452-166-600
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SEALING (8MM)
90495-MN5-000
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP (INNER) (42MM)
90602-GFZ-000
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6806)
91015-HR0-F21
|
$20.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (12X22X5)
91201-965-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL (14X24X6) (ARAI)
91202-444-013
Superseded by 91202-444-023
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL (14X24X6) (ARAI)
91202-444-015
Superseded by 91202-444-023
|
$4.47 | ||
|
Unavailable |
|||
|
#24
OIL SEAL (14X24X6) (ARAI)
91202-444-023
|
$4.47 | ||
|
Unavailable |
|||
|
#26
O-RING (58X3)
91301-HR3-A40
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (13.8X2.5)
91303-377-000
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (7.8X1.9) (NOK)
91313-MN5-004
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP (2X70)
91413-679-000
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)
95701-06040-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
