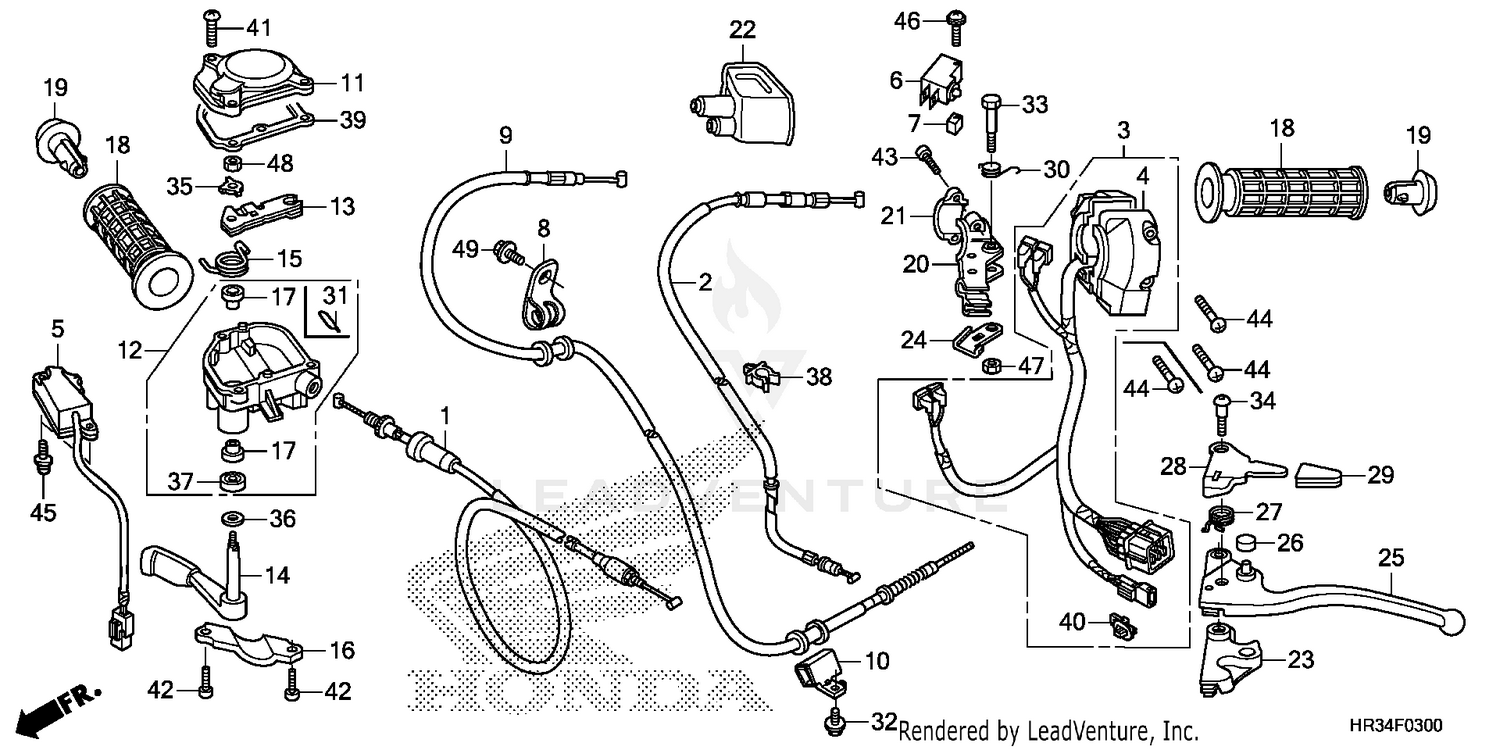

2014 Honda FOURTRAX RANCHER 4X4 AUTOMATIC DCT SWITCH@CABLE OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, THROTTLE
17910-HR3-A21
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE, REVERSE ASSIST
22880-HR3-A21
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., LIGHTING & ENGINE STARTER
35150-HR3-A21
|
$53.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SWITCH
35201-HB7-671
|
$15.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., FR. STOP (COO)
35340-HR0-305
|
$21.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., FR. STOP (COO)
35340-ML4-005
Superseded by 35340-HR0-305
|
$21.85 | ||
|
Unavailable |
|||
|
#7
COLLAR, STOP SWITCH
35345-HF1-830
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, BRAKE CABLE
43452-HR3-A20
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, HAND BRAKE
43460-HR3-A21
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, BRAKE CABLE
50352-HR3-A20
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, THROTTLE CASE
53141-HP5-L00
|
$78.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE ASSY., THROTTLE LEVER
53143-HP5-L00
|
$123.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, THROTTLE
53144-HA0-010
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER, THROTTLE
53145-HA0-305
Superseded by 53145-HA0-770
|
$27.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, THROTTLE RETURN
53146-HM8-000
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, THROTTLE CASE
53147-HM5-850
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSH, THROTTLE PIVOT
53148-HA0-000
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
GRIP, HANDLE
53165-HP5-600
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUARD, HANDLE END
53167-HP5-600
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, BRAKE LEVER
53172-HN5-M40
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER, LEVER BRACKET
53173-376-000
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, L. HANDLE
53177-HN5-M40
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
ARM, REVERSE ASSISTANT
53179-HA6-000
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, STOP SWITCH SUB CORD
53179-HN5-M40
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
LEVER, RR. BRAKE
53180-HA8-770
|
$33.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP, REVERSE PIN
53187-VM6-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, PARKING BRAKE LEVER
53191-961-010
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
LEVER, PARKING BRAKE LOCK
53192-HN0-A00
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#29
CAP, PARKING LEVER
53193-HA0-770
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, LEVER RETURN
53193-HF1-830
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, SPECIAL (6MM)
90107-HR3-A20
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HANDLE LEVER PIVOT
90114-HM8-000
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PARKING LEVER PIVOT
90115-HA6-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, LOCK (6MM)
90501-HA0-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER (9X20)
90504-HA0-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#37
DUST SEAL (9X16X5) (NOK)
91210-HA0-003
Superseded by 91210-HA0-004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#37
DUST SEAL (9X16X5) (NOK)
91210-HA0-004
|
$4.64 | ||
|
Unavailable |
|||
|
#38
CLIP, TUBE (3.5)
91531-SZ5-003
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET, THROTTLE CASE
91532-HA0-020
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, PAN (4X16)
93500-04016-0G
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, PAN (5X14)
93500-05014-0G
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, PAN (5X18)
93500-05018-0G
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW, PAN (5X28)
93500-05028-0G
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW-WASHER (4X20)
93893-04020-07
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT, HEX. (6MM)
94001-06070-0S
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, HEX. (6MM)
94002-06000-0S
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
