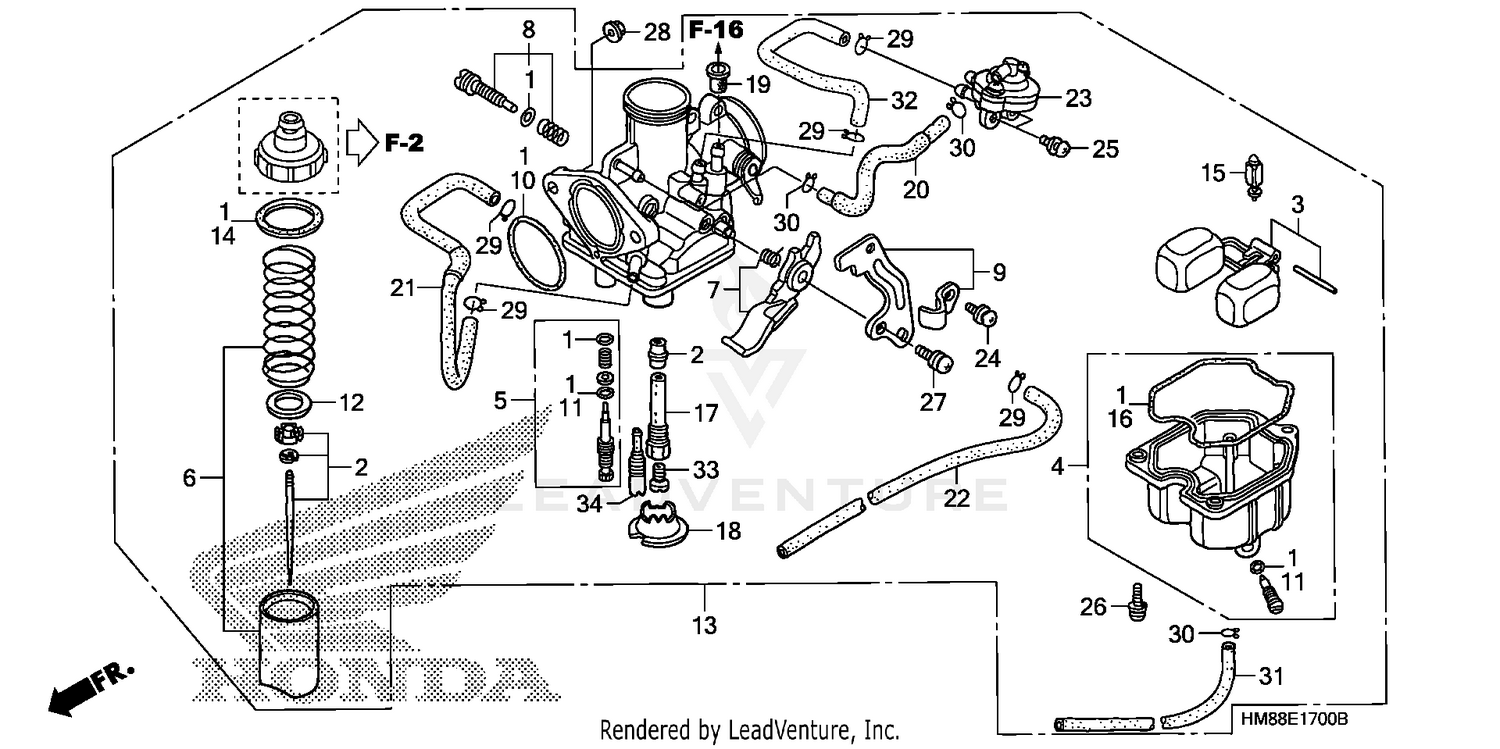

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-HM8-000
|
$25.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEEDLE SET, JET
16012-HM8-B01
|
$28.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT SET
16013-KRP-981
|
$10.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAMBER SET, FLOAT
16015-HN6-003
|
$134.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW SET A
16016-HM8-B01
|
$23.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE SET, THROTTLE
16022-HM8-B01
|
$45.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER SET, CHOKE
16025-HM8-B01
|
$24.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET B
16028-KEB-G01
|
$14.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET B
16028-KEH-900
Superseded by 16028-KEB-G01
|
$14.41 | ||
|
Unavailable |
|||
|
#9
PLATE SET, STAY
16035-HM8-000
|
$45.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (2.4X29)
16075-GHB-B70
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (1.3X4.3)
16075-GHB-640
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE B, VALVE
16092-HM8-A01
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
CARBURETOR ASSY. (PDC1F A)
16100-HM8-B01
|
$429.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, TOP
16110-KN4-651
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE, FLOAT
16155-KFR-701
|
$31.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, FLOAT CHAMBER
16163-KCS-920
|
$13.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, NEEDLE JET
16165-HM8-000
|
$40.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER, JET
16168-382-014
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREEN, FUEL STRAINER
16176-HM8-B01
|
$34.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE
16197-HM8-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE
16198-HM8-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE
16199-HM8-000
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
VALVE ASSY., AIR CUT
16510-HM8-B01
|
$92.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X8)
93892-04008-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X8)
93892-04008-18
Superseded by 93892-04008-08
|
$1.15 | ||
|
Unavailable |
|||
|
#25
SCREW-WASHER (4X14)
93892-04014-08
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (4X14)
93892-04014-18
Superseded by 93892-04014-08
|
$1.10 | ||
|
Unavailable |
|||
|
#26
SCREW-WASHER (4X16)
93892-04016-08
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (4X16)
93892-04016-18
Superseded by 93892-04016-08
|
$0.73 | ||
|
Unavailable |
|||
|
#27
SCREW-WASHER (5X12)
93892-05012-08
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-WASHER (5X12)
93892-05012-18
Superseded by 93892-05012-08
|
$1.15 | ||
|
Unavailable |
|||
|
#28
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, TUBE (B8)
95002-02089
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, TUBE (B6.5)
95002-02659
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
BULK HOSE, VACUUM (3.5X1000) (3.5X290)
95005-35001-50M
|
$15.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
BULK HOSE, VACUUM (4.5X1000) (4.5X140)
95005-45001-20M
|
$39.57 | ||
|
Available to order. Add to View Price |
|||
|
#33
JET, MAIN (#92)
99101-GHB-0920
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#33
JET, MAIN (#98)
99101-GHB-0980
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
JET, SLOW (#38)
99103-MT2-0380
|
$25.63 | ||
|
Available to order. Add to View Price |
|||
