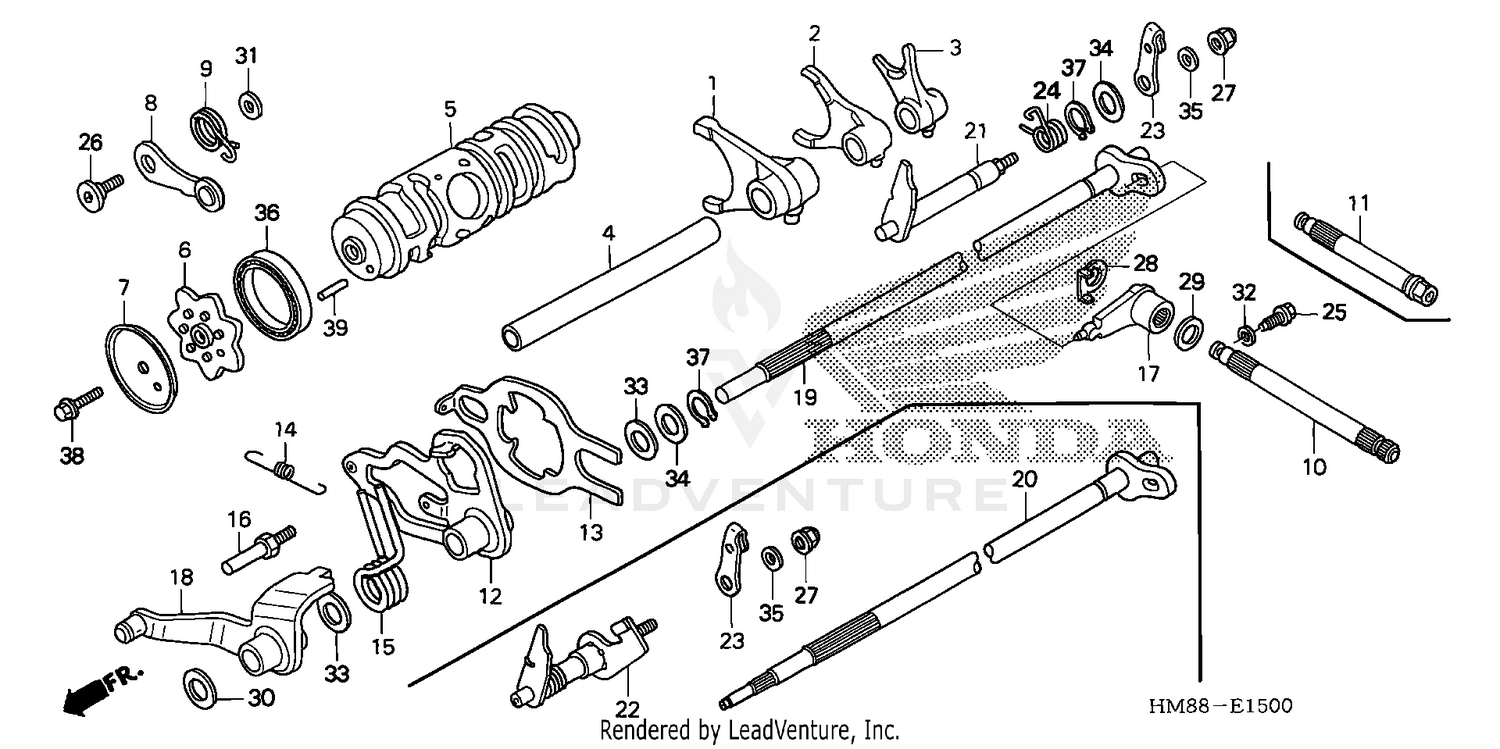

Gearshift Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, FR. GEARSHIFT
24211-HN6-000
|
$64.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, CENTER GEARSHIFT
24212-HM8-A40
|
$58.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWINGARM, GEARSHIFT
24213-HM8-A40
|
$58.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, GEARSHIFT FORK GUIDE
24241-HF1-670
|
$22.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRUM, GEARSHIFT
24301-HM8-A40
|
$98.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIFTER, DRUM
24321-HB3-030
|
$27.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, SHIFT GUIDE
24328-HB3-000
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOPPER, GEARSHIFT DRUM
24430-HM8-A40
|
$13.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SHIFT DRUM STOPPER
24435-HM8-A40
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPINDLE, SECONDARY GEARSHIFT
24611-HM8-A50
|
$50.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM, GEARSHIFT MASTER
24620-HF1-670
|
$48.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, GEARSHIFT
24631-HM8-A40
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, SHIFT ARM
24641-HB3-004
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, GEARSHIFT RETURN
24651-HN6-000
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, RETURN SPRING
24652-KY4-900
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM A, GEARSHIFT
24661-HM8-A40
|
$32.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
ARM, SUB-GEARSHIFT SPINDLE
24670-HM8-A40
|
$37.52 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPINDLE, GEARSHIFT
24680-HM8-A50
|
$78.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHAFT, REVERSE STOPPER
24860-HM8-A50
|
$45.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
LEVER, REVERSE STOPPER
24865-HN5-670
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SPECIAL FLANGE (6X15.2)
90009-HN5-670
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIVOT, SHIFT DRUM STOPPER ARM
90022-HM8-A40
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, U (6MM)
90301-473-003
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER (10X21.5)
90413-GE0-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, DRUM STOPPER
90417-360-000
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SEALING (6MM)
90442-397-000
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, THRUST (12MM)
90451-GF6-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, THRUST (12MM)
90452-166-600
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, CRANK ARM
90545-044-000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, RADIAL BALL (6807) (KOYO)
91010-HB7-003
|
$65.31 | ||
|
Available to order. Add to View Price |
|||
|
#37
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#39
ROLLER (4X13.8)
96220-40138
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
