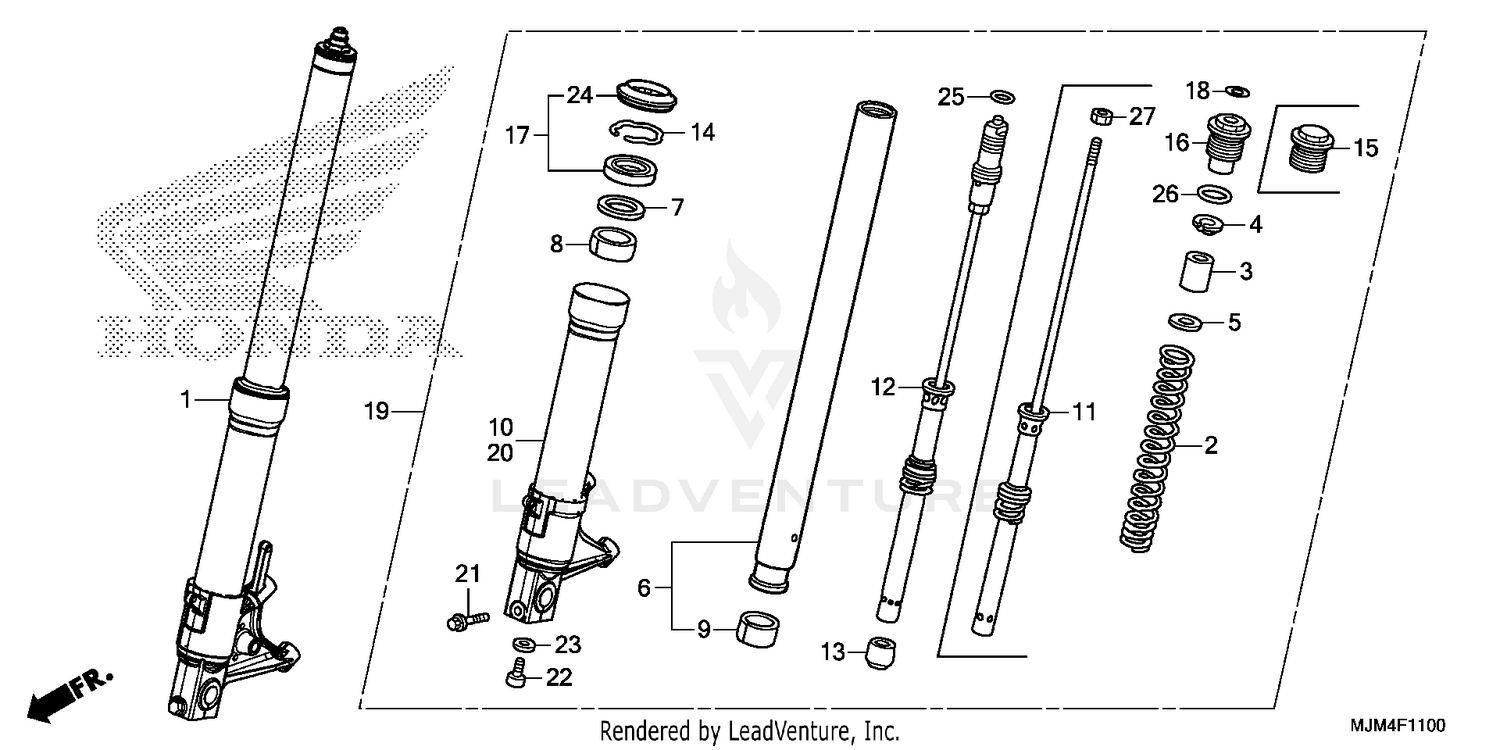

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK ASSY., R. FR. (COO)
51400-MJM-306
|
$1,005.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, FR. FORK
51401-MJM-D11
|
$80.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, SPRING
51402-MS2-003
|
$19.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT, SPRING
51404-MR7-003
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT, SPRING
51405-KA4-711
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, FR. FORK
51410-MJM-D01
|
$392.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, BACK-UP
51412-KA4-711
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, GUIDE
51414-MCF-003
|
$12.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SLIDER
51415-MBW-E11
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, R. (LOWER)
51420-MJM-D11
|
$488.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, FR.
51430-MJM-D11
|
$334.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIECE, OIL LOCK
51432-MS2-003
|
$34.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, OIL SEAL STOPPER (SHOWA)
51447-KA4-711
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FR. FORK
51454-MJM-D11
|
$66.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL SET, FR. FORK
51490-MFL-003
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
LABEL
51496-MR7-003
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK ASSY., L. FR. (COO)
51500-MJM-306
|
$1,048.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
CASE, L. (LOWER)
51520-MJM-D01
|
$510.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X45)
90109-MR7-000
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (8X27)
90116-383-721
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPECIAL (8MM) (SHOWA)
90544-283-000
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL
91254-MEJ-003
Superseded by 91254-MEJ-013
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (13.8X2.4) (NOK)
91311-MR7-003
Superseded by 91311-PH7-003
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (13.8X2.4) (NOK)
91311-PH7-003
|
$2.42 | ||
|
Unavailable |
|||
|
#26
O-RING (35.2X2.4)
91356-KA4-711
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
