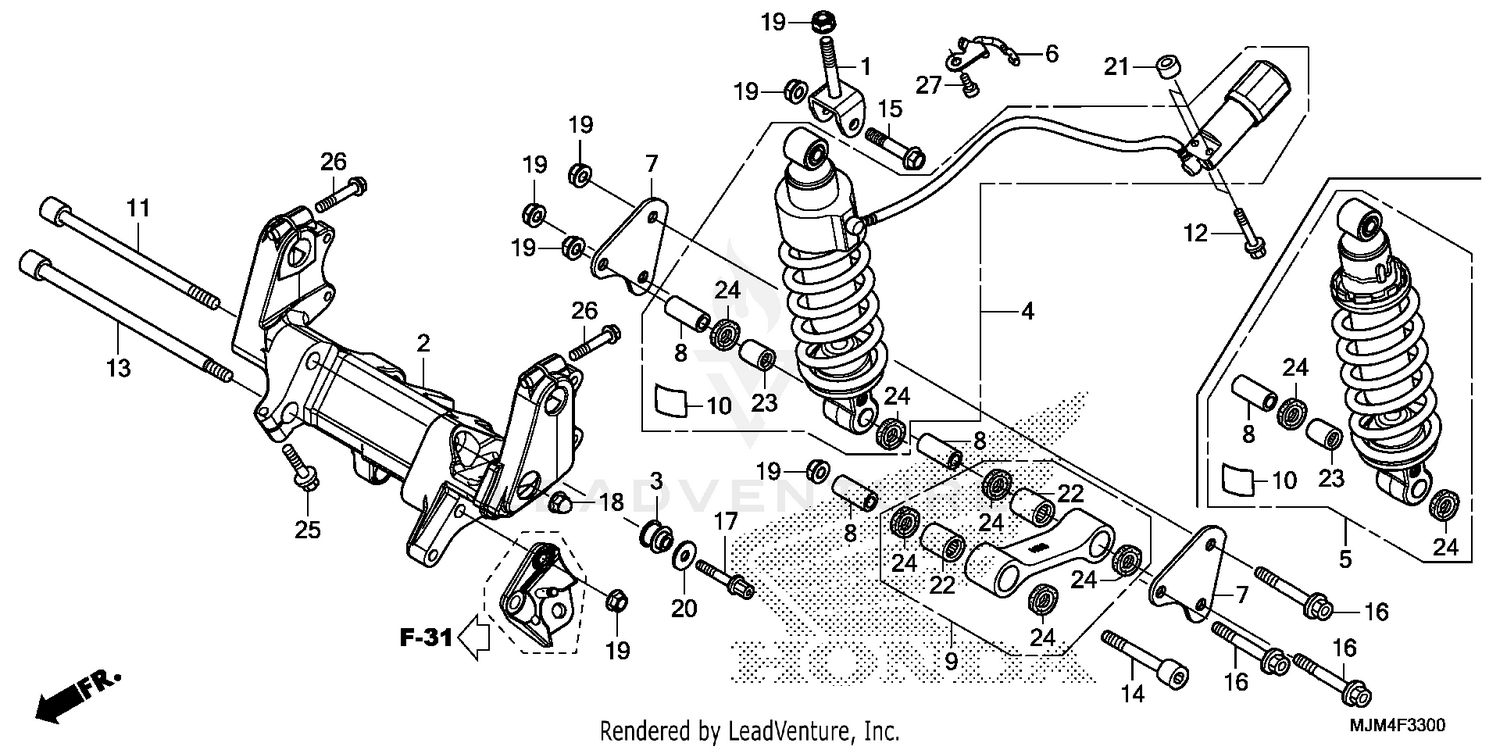

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, RR. CUSHION
50233-MZ7-000
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, RR. CUSHION (LOWER)
50475-MCW-D00
|
$417.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION ASSY., RR. (COO)
52400-MJM-306
|
$984.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE, RR. SHOCK ABSORBER HOSE
52409-MJM-D10
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, RR. SHOCK ABSORBER LINK
52461-MJM-D01
|
$22.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, CUSHION CONNECTING ROD
52463-MAL-G00
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD SUB-ASSY., CUSHION CONNECTING
52475-MBG-000
|
$132.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
LABEL, RR. DAMPER (ENGLISH)
87516-KV6-610
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SOCKET (10X190)
90101-MCW-D00
|
$13.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SPECIAL (6X38)
90101-MJM-D10
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (10X230)
90102-MCW-D00
|
$21.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SOCKET (10X70)
90110-MR7-000
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (10X52)
90118-MFR-670
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (10X64)
90105-GE3-760
|
$13.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE CAP (10MM)
90202-MR1-000
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U (10MM) (FUSE RASHI)
90304-GE8-003
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR, DISTANCE
90502-MJM-D10
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$28.42 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (17X24X20) (NTN)
91072-KT7-003
|
$23.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (8X40)
96300-08040-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X45)
96300-08045-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SOCKET (6X12)
96600-06012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
