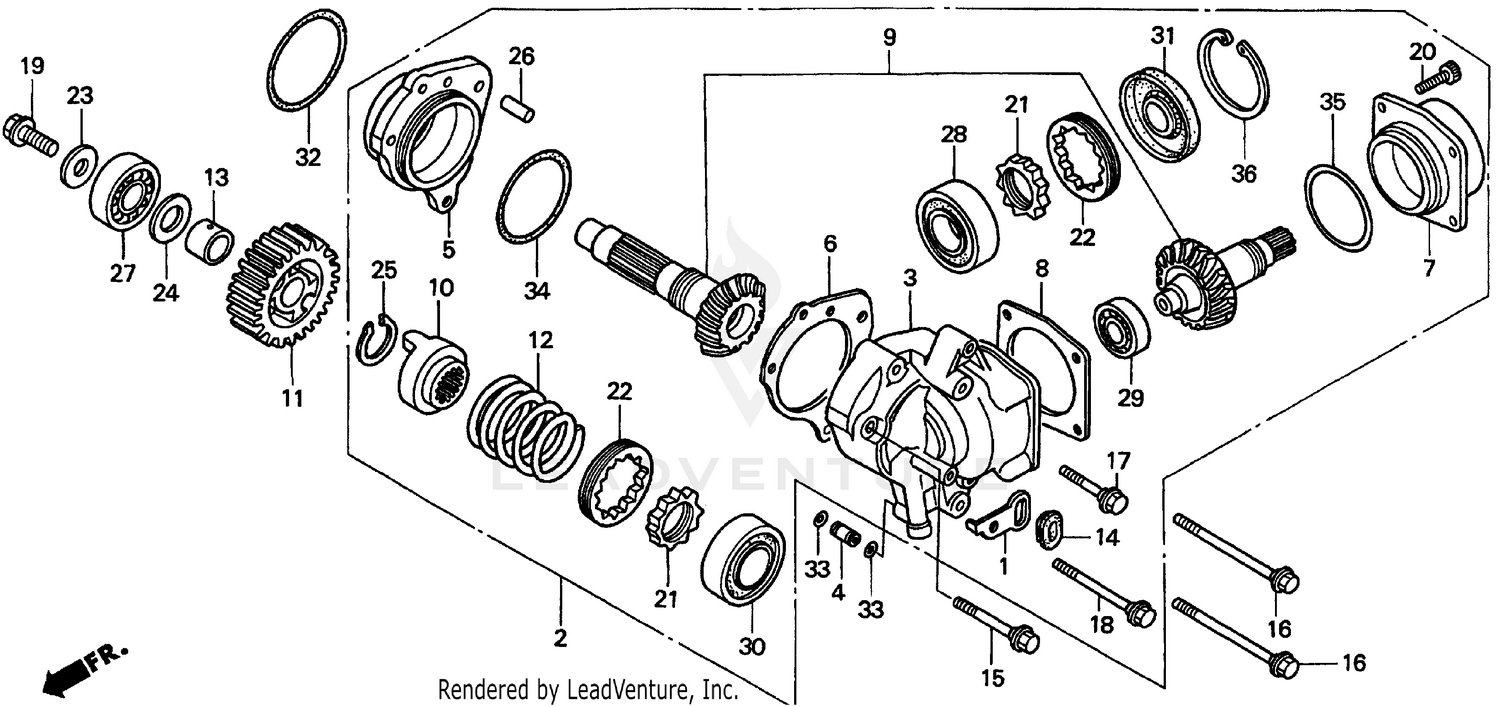

Cross Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, L. RR. COVER
11342-MAH-000
|
$12.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE ASSY., SIDE GEAR (NOT AVAILABLE)
21100-MAH-000
|
$1,373.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
CASE, SIDE GEAR
21200-MM8-000
|
$662.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
ORIFICE, SIDE GEAR CASE
21215-ME9-000
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, FINAL DRIVESHAFT BEARING
21281-MM8-000
|
$154.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, FINAL DRIVESHAFT (0.40)
21311-MG8-000
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, FINAL DRIVESHAFT (0.45)
21312-MG8-000
|
$16.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, FINAL DRIVESHAFT (0.50)
21313-MG8-000
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, FINAL DRIVESHAFT (0.55)
21314-MG8-000
|
$15.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM, FINAL DRIVESHAFT (0.60)
21315-MG8-000
|
$15.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, CROSS SHAFT BEARING
21371-MM8-680
|
$118.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CROSS SHAFT (0.20)
21377-MB0-770
|
$25.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CROSS SHAFT (0.25)
21378-MB0-770
|
$24.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CROSS SHAFT (0.30)
21379-MB0-770
|
$24.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CROSS SHAFT (0.35)
21380-MB0-770
|
$24.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CROSS SHAFT (0.40)
21381-MB0-770
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CROSS SHAFT (0.45)
21382-MB0-770
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CROSS SHAFT (0.50)
21383-MB0-770
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CROSS SHAFT (0.55)
21384-MB0-770
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIM, CROSS SHAFT (0.60)
21385-MB0-770
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT SET, CROSS
23200-MM8-000
|
$397.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
LIFTER, DAMPER
23721-MG8-000
|
$60.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, DAMPER SHAFT (31T)
23726-MBC-000
|
$165.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, DAMPER
23732-MAH-000
|
$44.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR (22X25X18.5)
23733-MG8-000
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET, AIR CLEANER HOUSING
83551-GE2-000
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, UBS (8X60)
90029-MG8-000
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, UBS (8X105)
90030-MG8-000
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, UBS (8X45) (SOURCE: VINTAGE PARTS INC.)
90031-MG8-000
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, UBS (8X85) (SOURCE: VINTAGE PARTS INC.)
90032-MG8-000
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SPECIAL (10MM)
90038-ME9-000
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (8X22)
90061-MB0-000
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, LOCK (30MM)
90241-MB0-000
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, LOCK (64MM)
90242-MB0-000
|
$37.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (10MM)
90404-MG8-000
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (20MM)
90451-426-000
|
$5.57 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP (OUTER) (28MM)
90602-463-000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, DOWEL (10X24)
90701-MG8-000
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (20X52X15) (TOYO)
91003-MG8-003
|
$43.79 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (5206)
91008-300-008
Superseded by 91012-MG7-003
|
$104.01 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (5206)
91012-MG7-003
|
$104.01 | ||
|
Unavailable |
|||
|
#29
BEARING, BALL (6303) (KOYO)
91011-MB0-003
|
$33.48 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, BALL (6303) (KOYO)
91011-MB0-004
Superseded by 91011-MB0-003
|
$33.48 | ||
|
Unavailable |
|||
|
#30
BEARING, SPECIAL (30X62X25.8) (TOYO)
91012-MG8-003
|
$96.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (25X66X8.5) (ARAI)
91205-MG7-003
|
$21.76 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (69.5X2.25) (ARAI)
91300-MG7-003
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)
91307-422-000
Superseded by 91313-MA6-005
|
$2.86 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (4.8X1.9) (NOK)
91313-MA6-005
|
$2.86 | ||
|
Unavailable |
|||
|
#34
O-RING (64.5X3) (ARAI)
91310-MG7-003
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (69.5X3) (ARAI)
91314-MG7-003
|
$10.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP (INNER) (65MM)
94520-65120
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
