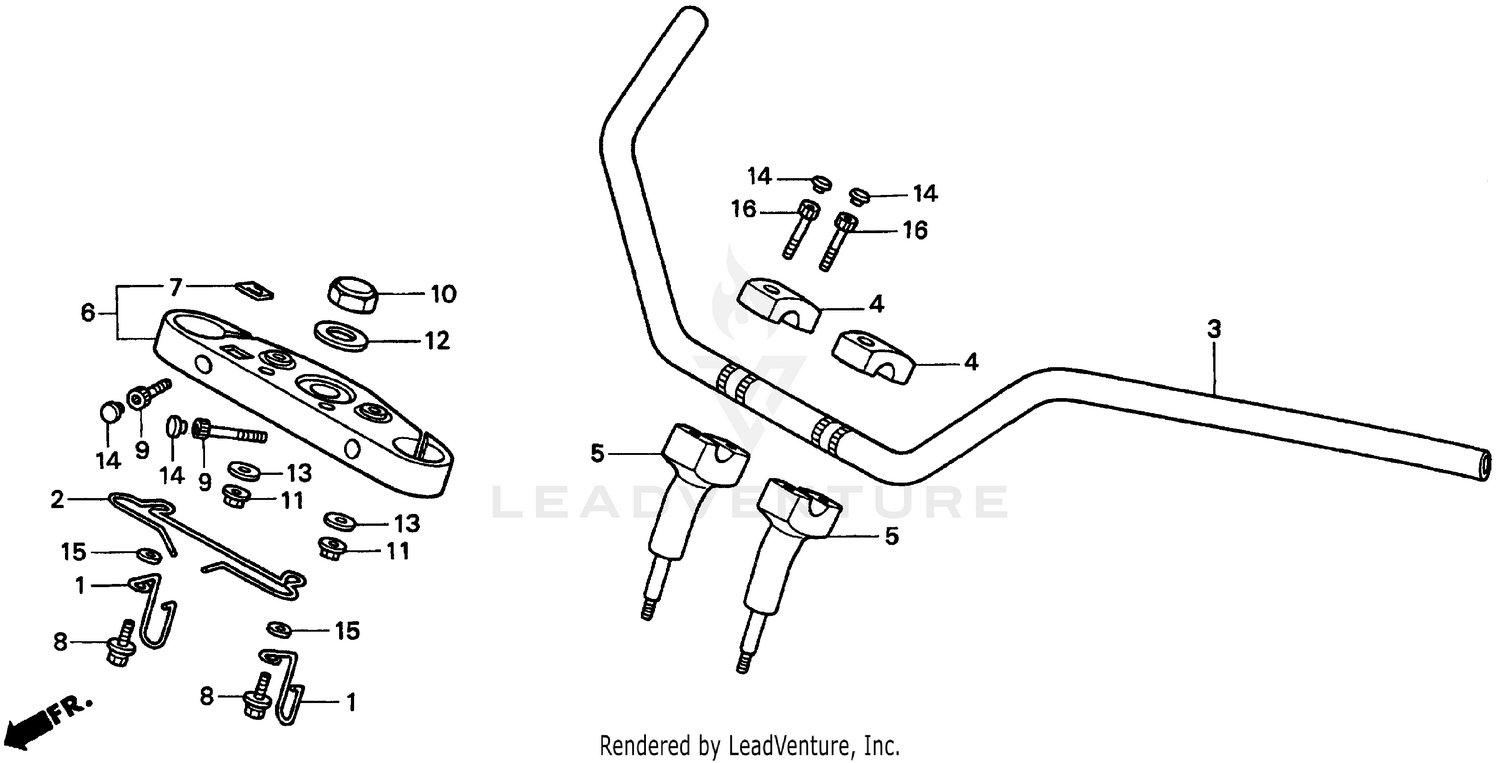

Handlebar + Top Bridge Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, HARNESS
38128-MM8-000
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CABLE
50337-MM8-000
|
$24.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
HANDLEBAR
53100-MAH-A40
|
$316.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, HANDLE (UPPER)
53131-MM8-000
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, HANDLE (LOWER)
53231-MM8-000
|
$43.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRIDGE, FORK TOP
53300-MM8-880
Superseded by 53300-MM8-881
|
$201.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRIDGE, FORK TOP
53300-MM8-881
|
$201.05 | ||
|
Unavailable |
|||
|
#7
EMBLEM, WING MARK
86150-MR1-760
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-WASHER (6X20)
90103-MBC-000
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SOCKET (7X55)
90167-MM8-000
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, STEERING STEM
90304-415-000
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-KF0-003
Superseded by 90309-428-731
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.02 | ||
|
Unavailable |
|||
|
#12
WASHER, STEERING STEM
90503-283-000
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, HANDLE CUSHION
90535-KB9-000
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, SOCKET BOLT (8MM)
91455-MB0-010
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#15
WASHER, PLAIN (6MM)
94101-06800
|
$0.64 | ||
|
Unavailable |
|||
|
#16
BOLT, SOCKET (8X32)
96700-08032-10
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
