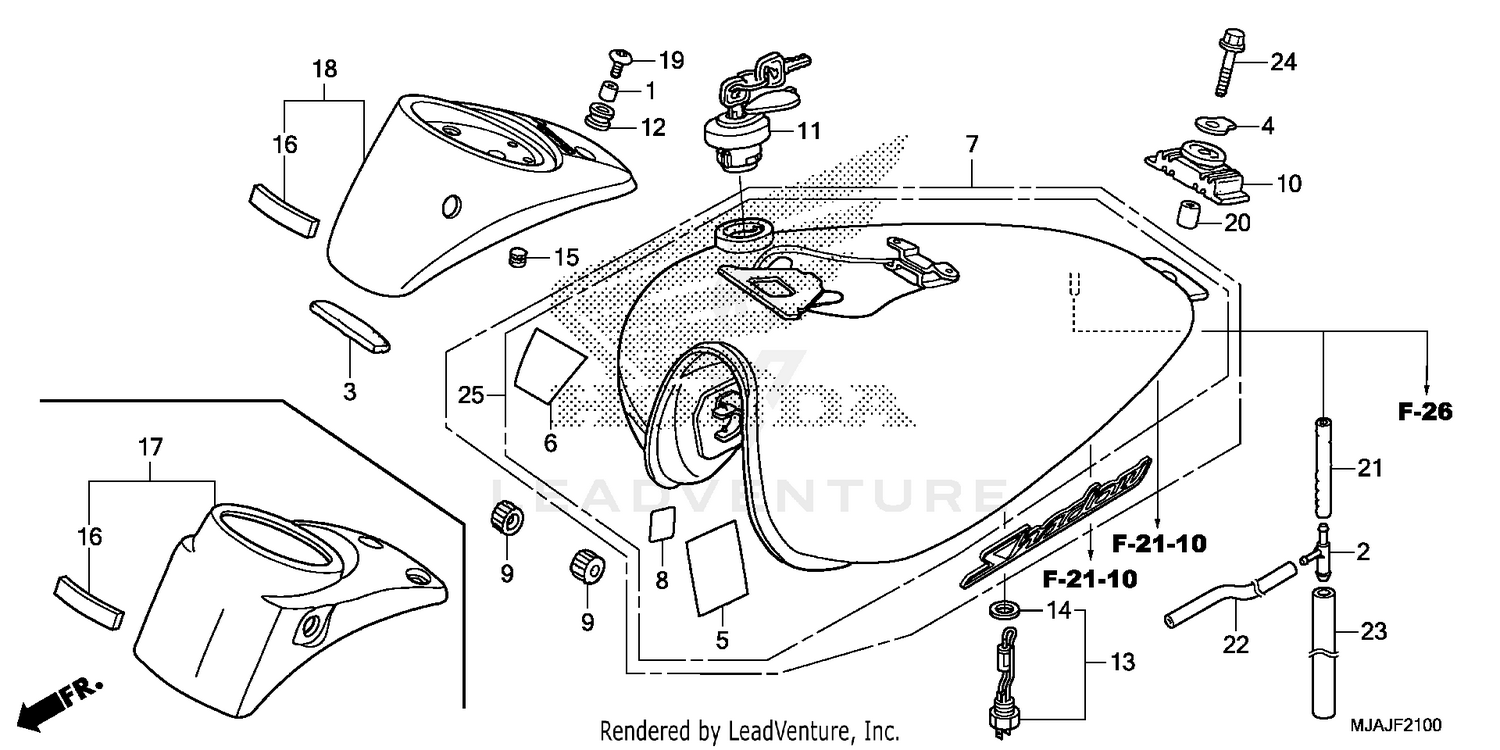

2019 Honda SHADOW AERO 750 VT750CS ABS FUEL TANK OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, ADJUSTING COVER WASHER, CHAIN CASE SETTING
11346-371-300
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, FR. FUEL TANK
17511-KGB-610
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, FUEL TANK SETTING
17511-MEG-000
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
TAPE, TANK PROTECTOR
17515-MEG-300
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILM, PROTECTOR
17516-MFE-670
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
TANK SET, FUEL *NHB01* (WL) (GRAPHITE BLACK)
17520-MFE-U00ZA
|
$1,304.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
TAPE, TANK GUARD
17528-MR4-900
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, FR. FUEL TANK
17611-MEG-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION, RR. FUEL TANK
17613-KY1-000
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, FUEL FILLER
17620-KR3-751
Superseded by 17620-KR3-753
|
$81.00 | ||
|
Unavailable |
|||
|
#11
CAP, FUEL FILLER
17620-KR3-752
Superseded by 17620-KR3-753
|
$81.00 | ||
|
Unavailable |
|||
|
#11
CAP, FUEL FILLER
17620-KR3-753
|
$81.00 | ||
|
Unavailable |
|||
|
#12
RUBBER, PROTECTOR GASKET
18293-GN2-000
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR, FUEL RESERVE
37810-MFE-641
|
$66.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FUEL RESERVE SENSOR
37811-MB1-008
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, HOLE
61110-388-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
MAT, METER COVER
83511-MFE-670
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER ASSY., METER
83515-MEG-A40
|
$144.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SPECIAL (6X14)
90118-MCL-000
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR (8X20)
90513-MAT-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X35)
95701-08035-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
