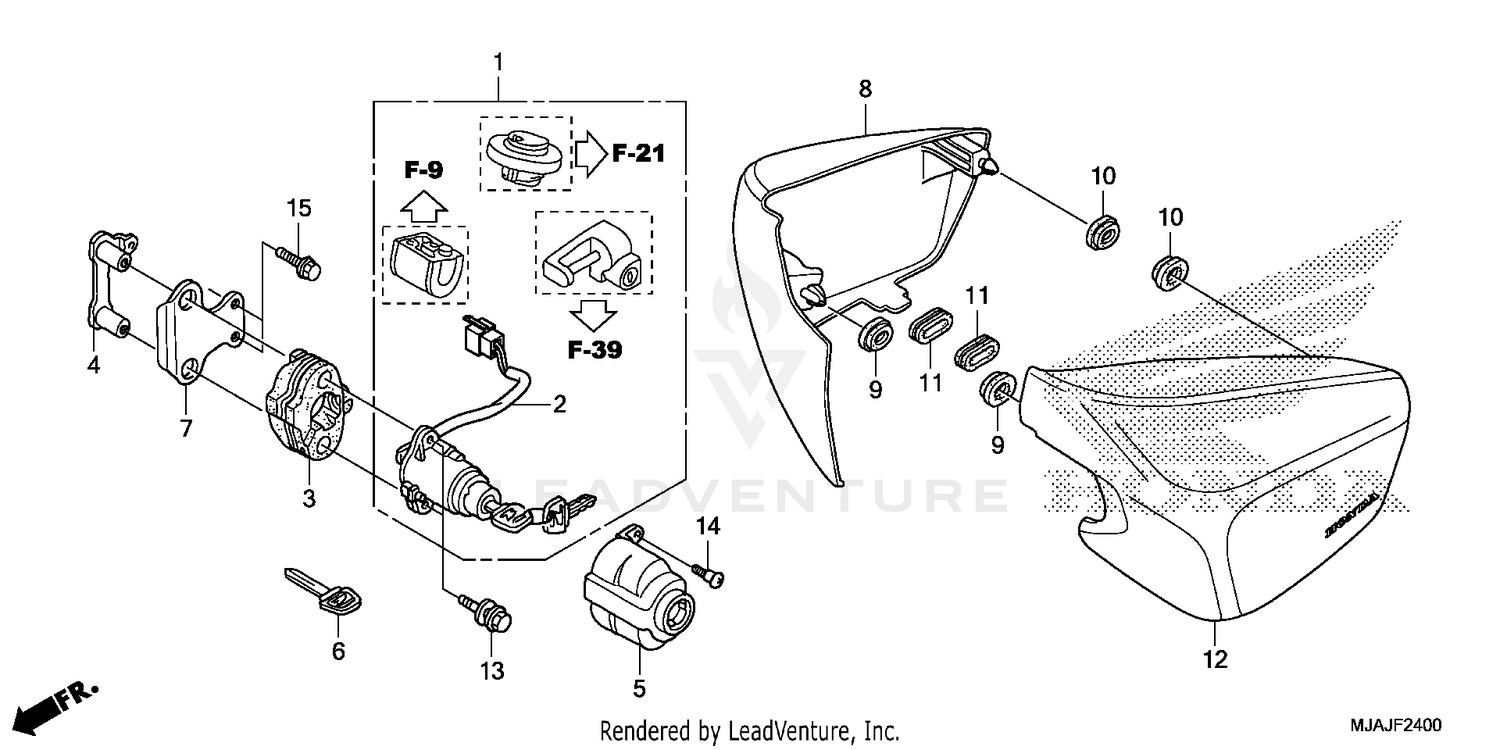

2019 Honda SHADOW AERO 750 VT750CS ABS SIDE COVER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LOCK SET
35010-MEG-H10
|
$486.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
SWITCH ASSY., COMBINATION
35100-MEG-H11
|
$203.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
BASE, COMBINATION SWITCH
35102-MR1-000
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, COMBINATION SWITCH
35103-MBA-000
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, COMBINATION SWITCH
35110-MR1-000
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
KEY, BLANK (TYPE1) (KEY NO. AXX / BXX)
35121-MR1-770
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
KEY, BLANK (TYPE2) (KEY NO. CXX / DXX)
35122-MR1-770
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, IGNITION SWITCH
50177-MBA-000
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER SET, R. SIDE *NHB01* (WL) (GRAPHITE BLACK)
83510-MJA-L90ZB
|
$127.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET, AIR CLEANER HOUSING
83551-GE2-000
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET A, SIDE COVER
83601-MB0-000
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER SET, L. SIDE *NHB01* (WL) (GRAPHITE BLACK)
83610-MJA-L90ZB
|
$127.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BREAK OFF (6MM)
90107-KR3-630
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, RR. COVER
90114-GB6-920
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X16)
95701-06016-07
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
