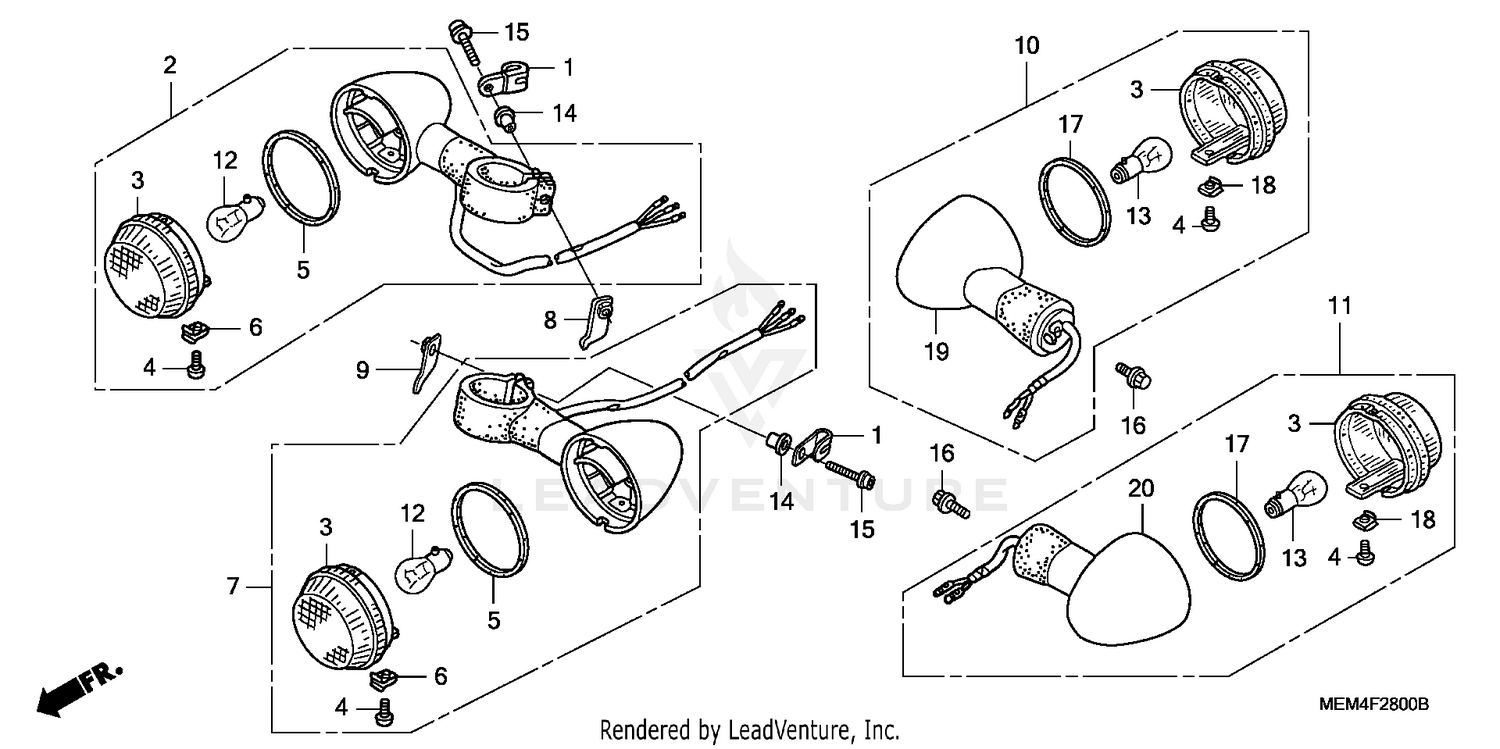

Front + Rear Turn Signal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, PULSER WIRE
32925-958-000
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
TURN SIGNAL ASSY., R. FR. (12V 21/5W) (STANLEY)
33400-MZ8-K02
|
$61.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, TURN SIGNAL (COO)
33401-MBA-612
Superseded by 33401-MFR-305
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, SPECIAL (4X8)
33403-MBA-611
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, LENS
33407-MBA-611
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, CLIP
33408-MBA-611
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
TURN SIGNAL ASSY., L. FR. (12V 21/5W) (STANLEY)
33450-MZ8-K02
|
$61.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, R. FR. TURN SIGNAL
33510-MEM-670
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, L. FR. TURN SIGNAL
33520-MEM-670
|
$8.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
TURN SIGNAL ASSY.
33600-MCH-003
Superseded by 33600-MCH-013
|
$81.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
WINKER ASSY,L RR
33650-MCH-003
Superseded by 33650-MCH-013
|
$79.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB, TAILLIGHT (12V 21/5W) (STANLEY)
34906-447-711
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULB (12V 21W) (ECE) (STANLEY)
34908-634-611
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, COVER MOUNTING
83505-MN0-000
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE SOCKET (6X28)
90098-KF0-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12)
90130-ML0-730
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
