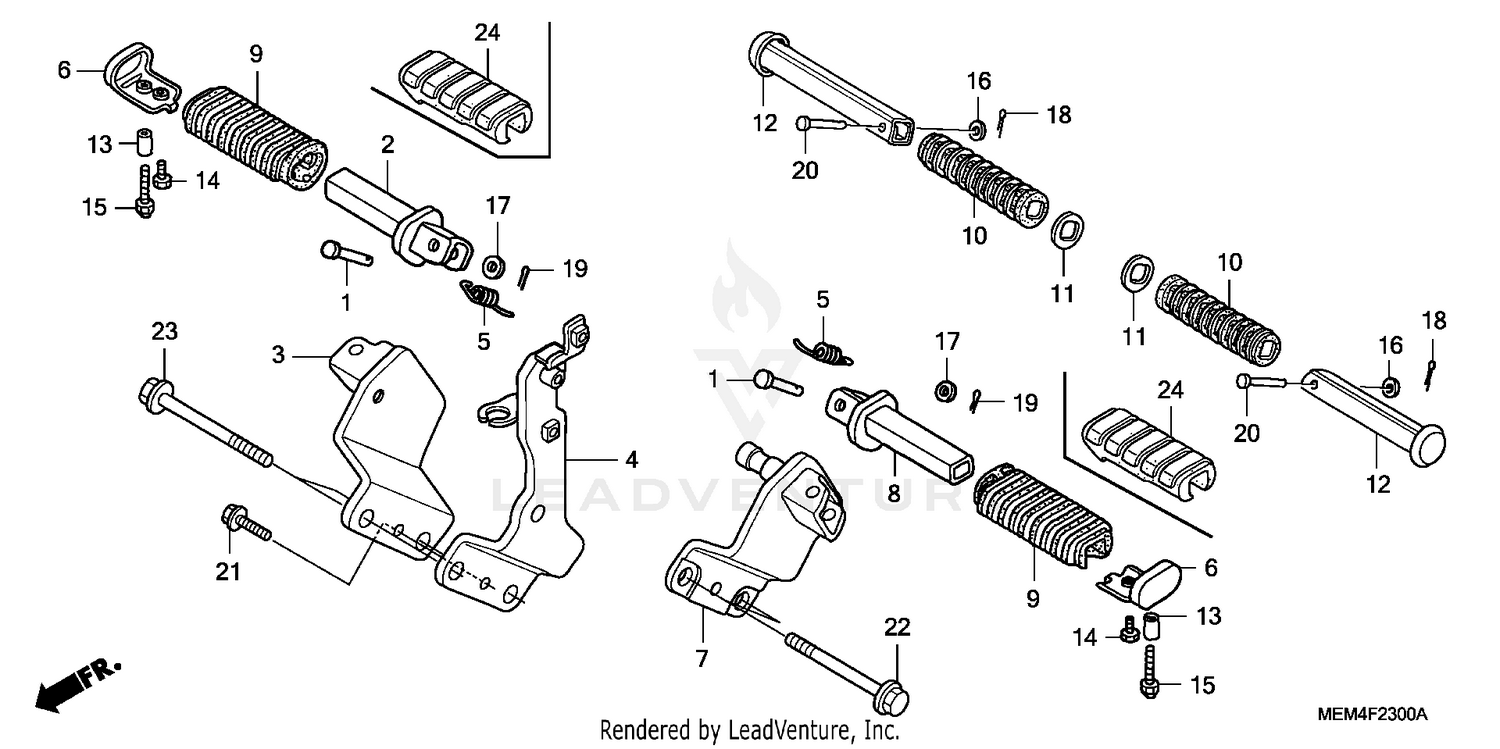

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, STEP BAR JOINT
50603-033-010
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, R. STEP
50612-MR1-000
|
$35.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, R. STEP
50615-MEM-670
|
$450.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, RR. BRAKE
50616-MEM-670
|
$62.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, STEP RETURN
50617-MB1-700
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER, STEP RUBBER
50619-MN0-000
|
$19.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, L. STEP
50625-MEM-670
|
$73.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, L. STEP
50642-MR1-000
|
$35.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, MAIN STEP
50661-MN0-000
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, PILLION FOOTPEG
50710-377-000
Superseded by 50716-371-660
|
$16.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, PILLION FOOTPEG
50716-371-660
|
$16.24 | ||
|
Unavailable |
|||
|
#11
WASHER, PILLION STEP
50712-413-000
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAR, PILLION STEP (COO)
50715-MN0-000
Superseded by 50715-MFR-305
|
$24.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, STEP
90100-MEM-670
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP (6X28)
92501-06028-0A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.63 | ||
|
Unavailable |
|||
|
#16
WASHER, PLAIN (6MM)
94101-06800
|
$0.63 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (8MM)
94101-08000
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, SPLIT (1.6X12)
94201-16120
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, SPLIT (2.0X15)
94201-20150
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN A, PILLION STEP
95015-81000
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X20)
95701-06020-07
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X50)
95701-10050-07
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (10X60)
95701-10060-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
