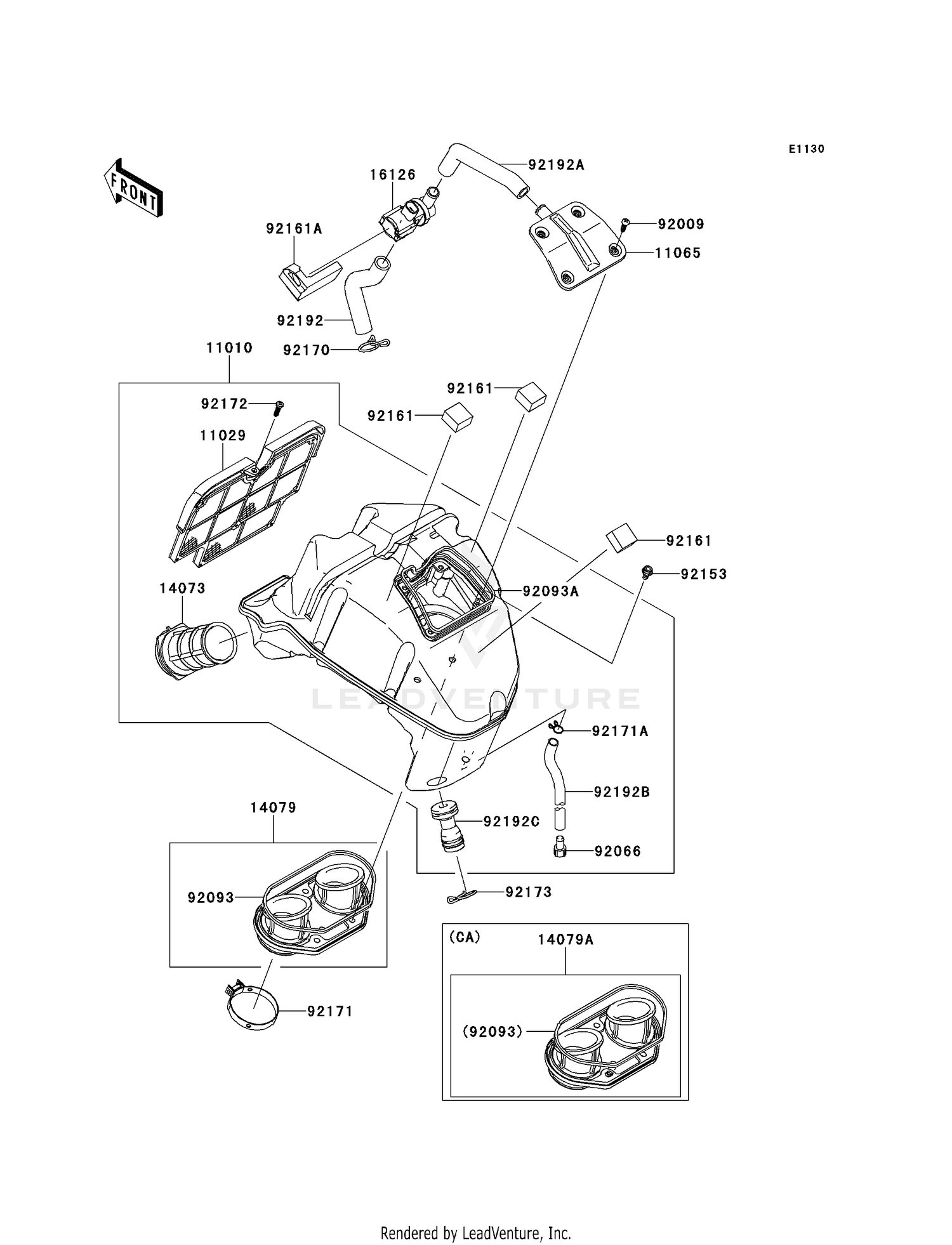

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11010
FILTER-ASSY-AIR
11010-0156
|
$342.05 | ||
|
Available to order. Add to View Price |
|||
|
#11029
ELEMENT-ASSY-AIR FILT
11029-0011
|
$52.11 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP,UPPER CASE
11065-0120
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#14073
DUCT,INLET
14073-0210
|
$28.95 | ||
|
Available to order. Add to View Price |
|||
|
#14079
HOLDER-ASSY
14079-0064
|
$55.80 | ||
|
Available to order. Add to View Price |
|||
|
#14079A
HOLDER-ASSY
14079-0066
|
$55.80 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,AIR SWITCHING
16126-0019
Superseded by 16126-0743
|
$85.23 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,5X16
92009-1984
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DRAIN,8.5X15
92066-0127
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-0046
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,CAP
92093-0142
|
$7.61 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X12
92153-0759
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,T=15
92161-0302
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-0309
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1017
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0314
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP,DRAIN
92171-1584
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING,5X20
92172-0298
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP,22X2
92173-0001
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,HEAD-ASV
92192-0232
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE,A/C-ASV
92192-0680
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#92192B
TUBE,8X12X245
92192-0709
|
$11.34 | ||
|
Available to order. Add to View Price |
|||
|
#92192C
TUBE,BREATHER
92192-0818
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
