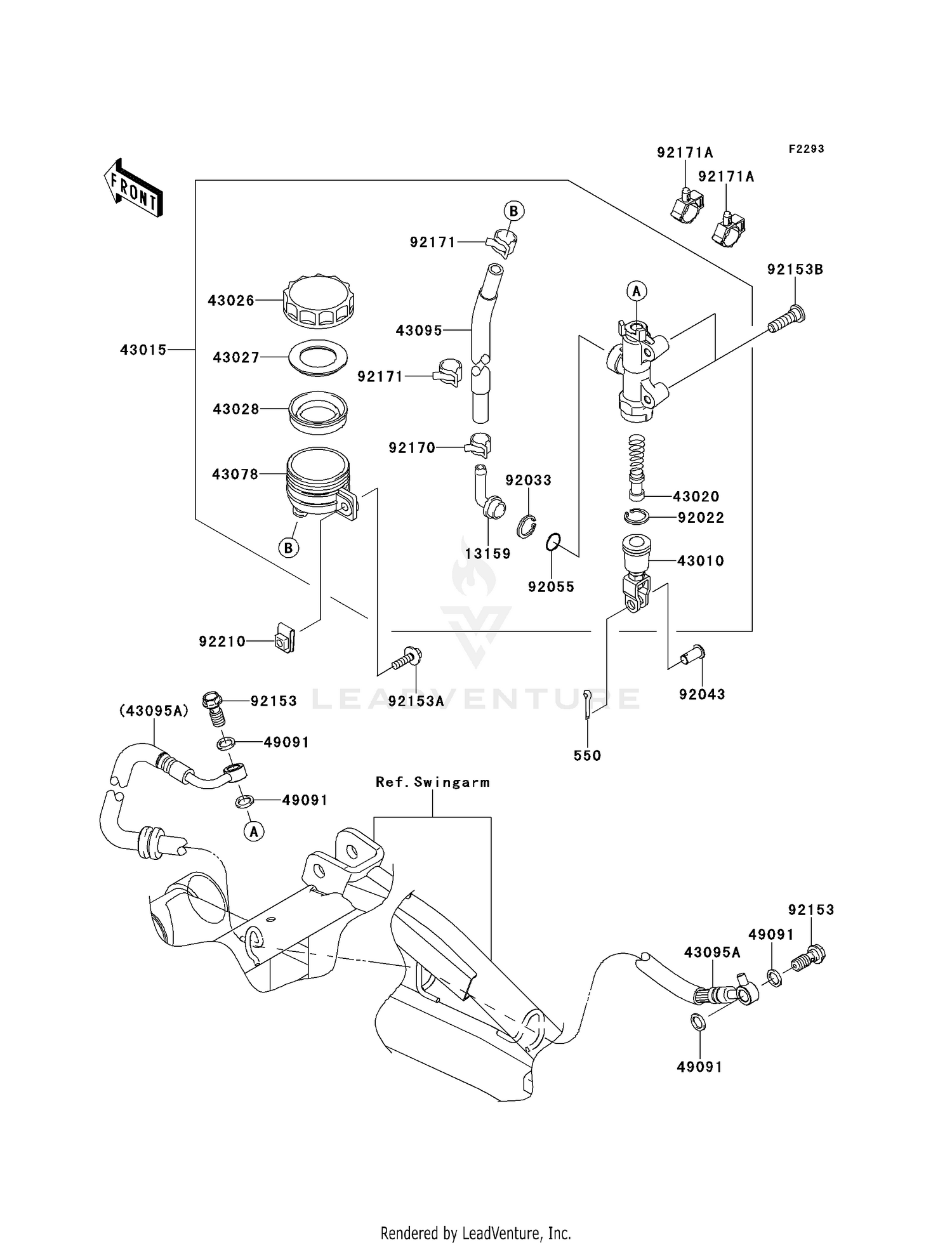

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#550
PIN-COTTER,2.0X15
550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR
13159-1056
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-1062
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-0122
|
$259.72 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1094
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1051
|
$32.90 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1051
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR,RR MASTER CYLINDER
43078-1082
|
$27.16 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,RR MASTER CYLI
43095-0193
|
$19.06 | ||
|
Available to order. Add to View Price |
|||
|
#43095A
HOSE-BRAKE,RR,L=712
43095-0413
|
$78.75 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
RING-SNAP,20.9X24.6X1.2
92022-1601
Superseded by 92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.5MM
92033-1186
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN
92043-0182
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-1251
Superseded by 92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,OIL,L=23
92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,6X22
92153-0725
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT,SOCKET,8X30
92153-1624
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,HOSE
92170-1091
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,HOSE
92171-0463
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-0955
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,6MM
92210-0474
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
