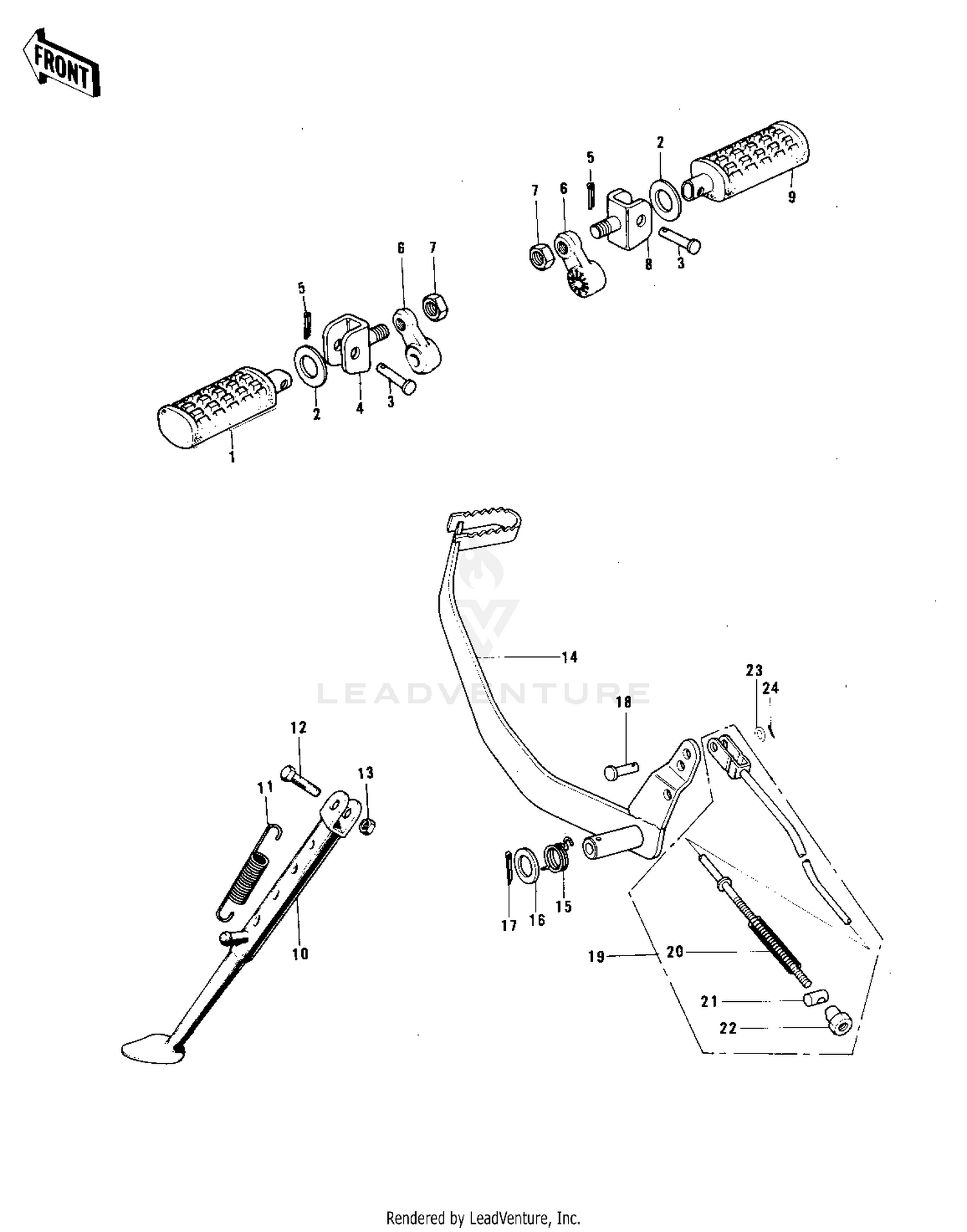

Footrests/stand/brake/pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEP-ASSY,FR,LH
34027-1114
|
$34.07 | ||
|
Unavailable |
|||
|
#2
WASHER PL 22.5X36X2.3
92022-204
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN,8X31
92043-080
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER,FOTRST BAR,LH
34021-001-10
|
$19.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN-COTTER,2.5X15
550D2515
Superseded by 550AA2515
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET-FOOTREST BAR
34007-009
|
$30.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,LOCK,12MM
92019-009
Superseded by 92210-1373
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER-FOTRST BAR,RH
34021-003-10
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
STEP-ASSY,FR,RH
34027-1115
|
$40.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAND-SIDE
34024-028
|
$47.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING MAIN STAND
34023-005
|
$10.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,10X28
113G1028
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-HEX-FINE,10MM
315B1000
Superseded by 315AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
PEDAL-BRAKE
43001-046
|
$37.96 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING,BRAKE PEDAL
43005-033
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER BRAKE PEDAL
92022-085
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN-COTTER,3.0X30
550D3030
Superseded by 550AA3030
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN,6X17
92043-064
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD ASSY-BRAKE
43010-013
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING,BRAKE ROD
43012-001
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN,BRAKE ROD
92043-039
Superseded by 92043-0147
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT,BRAKE ROD
92015-042
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
