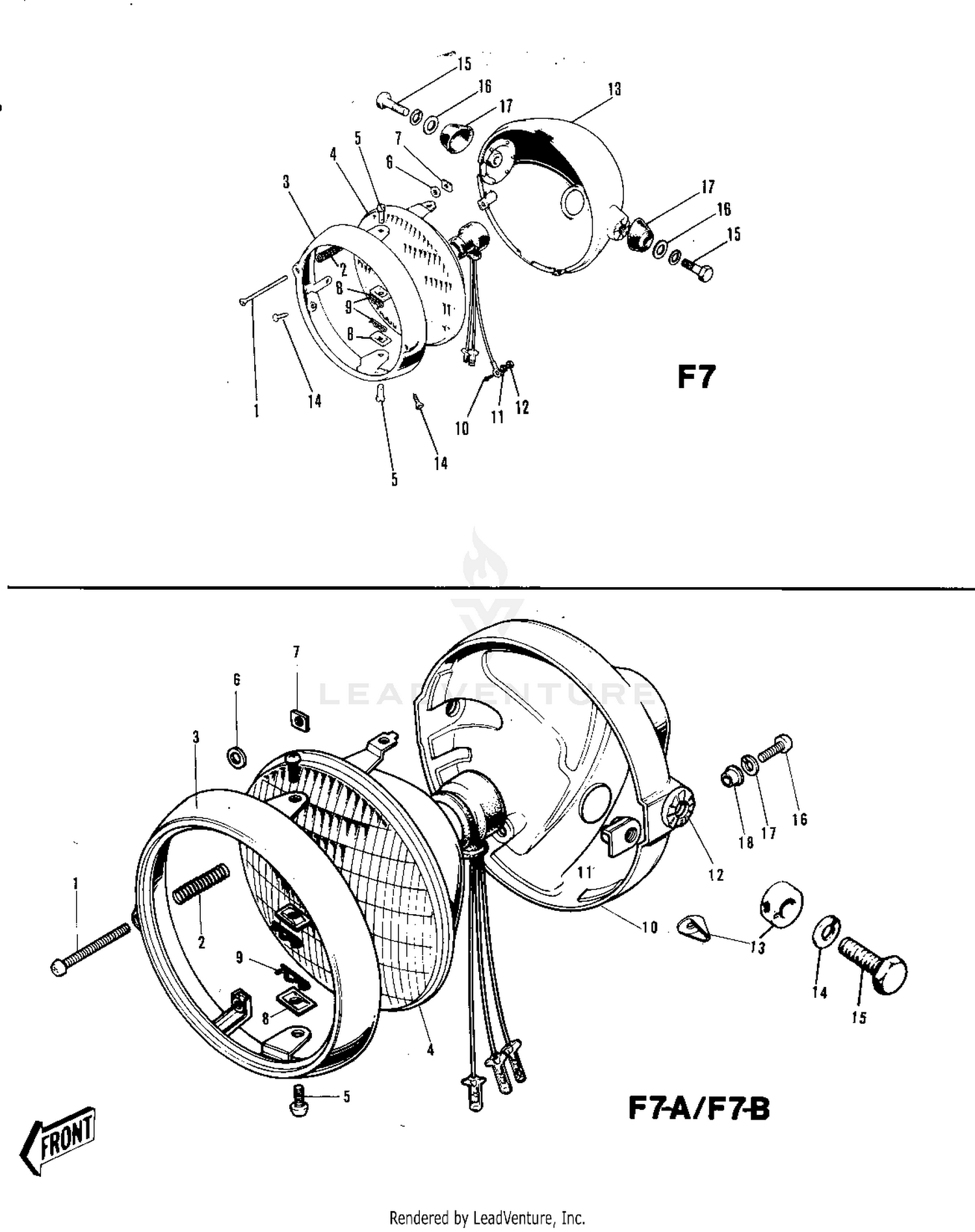

Headlight ('71-'73 F7/f7-a/f7-b) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
LAMP UNIT-HEAD
23003-008
|
$63.88 | ||
|
Available to order. Add to View Price |
|||
|
#1
SCREW FORCUS ADJUST
23019-021
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING FOCUS ADJUST
23014-005
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
RIM HEAD LAMP
23006-014
|
$23.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEALED BEAM UNIT
23007-022
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW LENS UNIT FITT
23019-018
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
23021-004
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
23020-016
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT LENS UNIT FITTING
23020-009
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN LENS UNIT FITTING
23022-001
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-PAN-CROS,3X6
220B0306
Superseded by 220AA0306
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER-SPRING
461F0300
Superseded by 461DA0300
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-HEX
311B0300
Superseded by 311AA0300
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
BODY-HEAD LAMP,BLACK
23005-022-21
|
$89.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW OVL CNTSNK 5X10
222E0510
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,HEX HEAD,10X25
92007-045
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-PLAIN,10MM
411B1000
Superseded by 411AA1000
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER RUBBER
92075-058
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#
LAMP UNIT-HEAD
23003-015
|
$161.17 | ||
|
Available to order. Add to View Price |
|||
|
#1
SCREW FORCUS ADJUST
23019-021
|
$4.54 | ||
|
Unavailable |
|||
|
#2
SPRING FOCUS ADJUST
23014-005
|
$3.50 | ||
|
Unavailable |
|||
|
#3
RIM-HEAD LAMP
23006-028
|
$60.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS UNIT-HEAD LAMP
23007-032
|
$102.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW LENS UNIT FITT
23019-018
|
$3.34 | ||
|
Unavailable |
|||
|
#6
WASHER
23021-004
|
$2.83 | ||
|
Unavailable |
|||
|
#7
NUT
23020-016
|
$2.16 | ||
|
Unavailable |
|||
|
#8
NUT LENS UNIT FITTING
23020-009
|
$4.60 | ||
|
Unavailable |
|||
|
#9
PIN LENS UNIT FITTING
23022-001
|
$3.85 | ||
|
Unavailable |
|||
|
#10
BODY-HEAD LAMP,BLACK
23005-034-10
|
$51.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
23020-017
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER-LOCK
23021-011
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER RUBBER
92075-079
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER RUBBER
92075-134
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,10MM
92007-024
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,5MM
92011-024
Superseded by 92009-1947
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
23021-010
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
