1974 Kawasaki F7 Frame/frame Fittings ('74-'75 F7-c/f6-d) OEM Parts

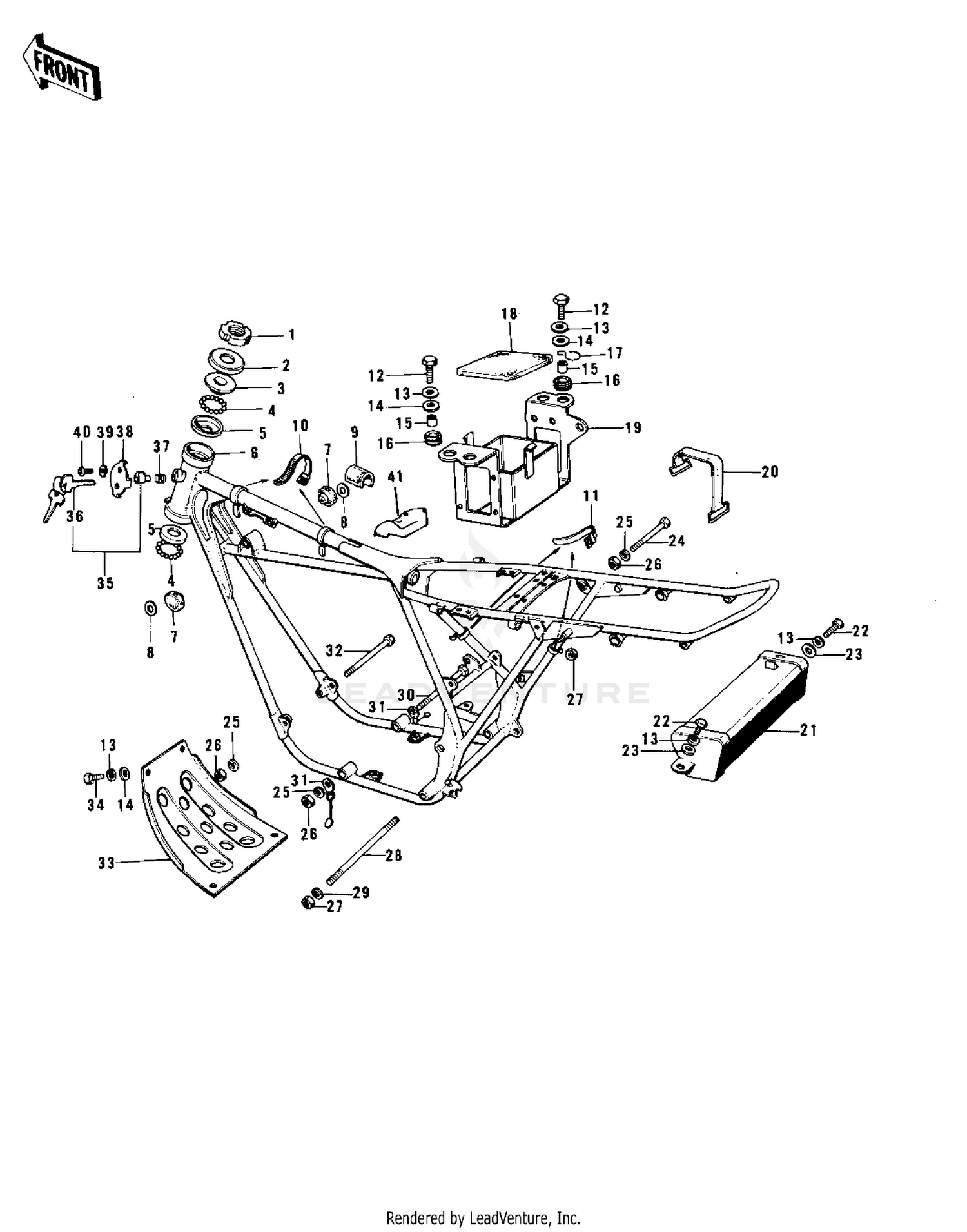

Frame/frame Fittings ('74-'75 F7-c/f6-d) Diagram

Item	MSRP	Qty
#1 NUT STEERING STEM LCK 92090-006	$14.50
Available to order. Add to View Price
#2 CAP STEERING STEM 46098-004	$5.96
Available to order. Add to View Price
#3 CONE UPPER BEARING 92047-005	$11.69
Available to order. Add to View Price
#4 BALL-STEEL,3/16 600A0600	$1.04
Available to order. Add to View Price
#5 RACE BEARING 92048-004	$11.10
Available to order. Add to View Price
#6 FRAME 32002-075	$487.87
Available to order. Add to View Price
#7 DAMPER RUBB FUEL TANK 92075-050	$6.40
Available to order. Add to View Price
#8 WASHER,10.5X26X2.3 92022-044	$3.80
Available to order. Add to View Price
#9 MAT FUEL TANK 51067-002	$16.76
Available to order. Add to View Price
#10 BAND,L=218 92072-032	$4.84
Available to order. Add to View Price
#11 BAND,L=123 92072-030	$4.84
Available to order. Add to View Price
#12 BOLT-UPSET 112G0620 Superseded by 112BA0620	$2.22
Available to order. Add to View Price
#13 WASHER-SPRING,6MM 461F0600 Superseded by 461DA0600	$0.69
Available to order. Add to View Price
#14 WASHER,6.5X20X1.6 92022-125 Superseded by 92200-0283	$1.36
Available to order. Add to View Price
#15 COLLAR 92027-103	$3.51
Available to order. Add to View Price
#16 DAMPER 92075-051	$3.80
Available to order. Add to View Price
#17 CLAMP CABLE 92037-026	$1.14
Available to order. Add to View Price
#18 MAT-BATTERY 32103-019	$1.80
Available to order. Add to View Price
#19 CASE-BATTERY 32097-018	$28.34
Available to order. Add to View Price
#20 BAND 92072-012	$7.09
Available to order. Add to View Price
#21 BOX-TOOL 32098-013	$49.98
Available to order. Add to View Price
#22 BOLT-UPSET 112G0612 Superseded by 112BA0612	$1.45
Available to order. Add to View Price
#23 WASHER-PLAIN-SMALL 410B0600 Superseded by 410AA0600	$1.28
Available to order. Add to View Price
#24 BOLT,FLANGED,10X115 92001-1603	$10.28
Available to order. Add to View Price
#25 WASHER-SPRING,10MM 461F1000 Superseded by 461DA1000	$0.67
Available to order. Add to View Price
#26 NUT-HEX-FINE 314B1000 Superseded by 314AA1000	$0.67
Available to order. Add to View Price
#27 NUT,12MM 314B1200 Superseded by 92015-1381	$2.61
Available to order. Add to View Price
#28 STUD,12X290 92006-003	$15.51
Available to order. Add to View Price
#29 WASHER-SPRING,12MM 461F1200 Superseded by 461DA1200	$1.00
Available to order. Add to View Price
#30 BOLT,HEX HEAD,10X215 113B10215	$14.80
Available to order. Add to View Price
#31 CHAIN 58041-012	$5.21
Available to order. Add to View Price
#32 BOLT,HEX HEAD,10X150 92001-1251	$5.98
Available to order. Add to View Price
#33 GUARD-ENGINE 55011-012	$17.78
Available to order. Add to View Price
#34 BOLT-UPSET 112B0614 Superseded by 112AA0614	$0.48
Available to order. Add to View Price
#35 LOCK ASSY,STEERING 27016-042	$43.91
Available to order. Add to View Price
#36 KEY SET,#401 27008-063-01	$28.83
Available to order. Add to View Price
#36 KEY SET,#402 27008-063-02	$25.10
Available to order. Add to View Price
#36 KEY SET,#403 27008-063-03	$17.03
Available to order. Add to View Price
#36 KEY SET,#404 27008-063-04	$21.96
Available to order. Add to View Price
#36 KEY SET,#405 27008-063-05	$21.96
Available to order. Add to View Price
#36 KEY SET,#406 27008-063-06	$21.96
Available to order. Add to View Price
#36 KEY SET,#407 27008-063-07	$9.28
Available to order. Add to View Price
#36 KEY SET,#408 27008-063-08	$21.96
Available to order. Add to View Price
#36 KEY SET,#409 27008-063-09	$21.96
Available to order. Add to View Price
#36 KEY SET,#410 27008-063-10	$20.90
Available to order. Add to View Price
#36 KEY SET,#411 27008-063-11	$21.15
Available to order. Add to View Price
#36 KEY SET,#412 27008-063-12	$21.11
Available to order. Add to View Price
#36 KEY SET,#413 27008-063-13	$21.15
Available to order. Add to View Price
#36 KEY SET,#414 27008-063-14	$8.98
Available to order. Add to View Price
#36 KEY SET,#415 27008-063-15	$21.15
Available to order. Add to View Price
#36 KEY SET,#416 27008-063-16	$21.11
Available to order. Add to View Price
#36 KEY SET,#417 27008-063-17	$21.15
Available to order. Add to View Price
#36 KEY SET,#418 27008-063-18	$9.02
Available to order. Add to View Price
#36 KEY SET,#419 27008-063-19	$21.11
Available to order. Add to View Price
#36 KEY SET,#420 27008-063-20	$21.15
Available to order. Add to View Price
#36 KEY SET,#421 27008-063-21	$8.98
Available to order. Add to View Price
#36 KEY SET,#422 27008-063-22	$21.11
Available to order. Add to View Price
#36 KEY SET,#423 27008-063-23	$21.11
Available to order. Add to View Price
#36 KEY SET,#424 27008-063-24	$21.15
Available to order. Add to View Price
#36 KEY SET,#425 27008-063-25	$14.50
Available to order. Add to View Price
#36 KEY SET,#426 27008-063-26	$21.11
Available to order. Add to View Price
#36 KEY SET,#427 27008-063-27	$20.08
Available to order. Add to View Price
#36 KEY SET,#428 27008-063-28	$14.50
Available to order. Add to View Price
#36 KEY SET,#429 27008-063-29	$18.52
Available to order. Add to View Price
#36 KEY SET,#430 27008-063-30	$8.98
Available to order. Add to View Price
#37 SPRING-STEERING LOCK 27032-001	$5.08
Available to order. Add to View Price
#38 CAP,STEERING LOCK 11012-1134	$6.65
Available to order. Add to View Price
#39 WASHER,WAVE 92097-003	$4.36
Available to order. Add to View Price
#40 SCREW,3.51MM 92008-007	$3.98
Available to order. Add to View Price
#41 DAMPER RUBBER,FL TNK 92075-236	$15.40
Available to order. Add to View Price
