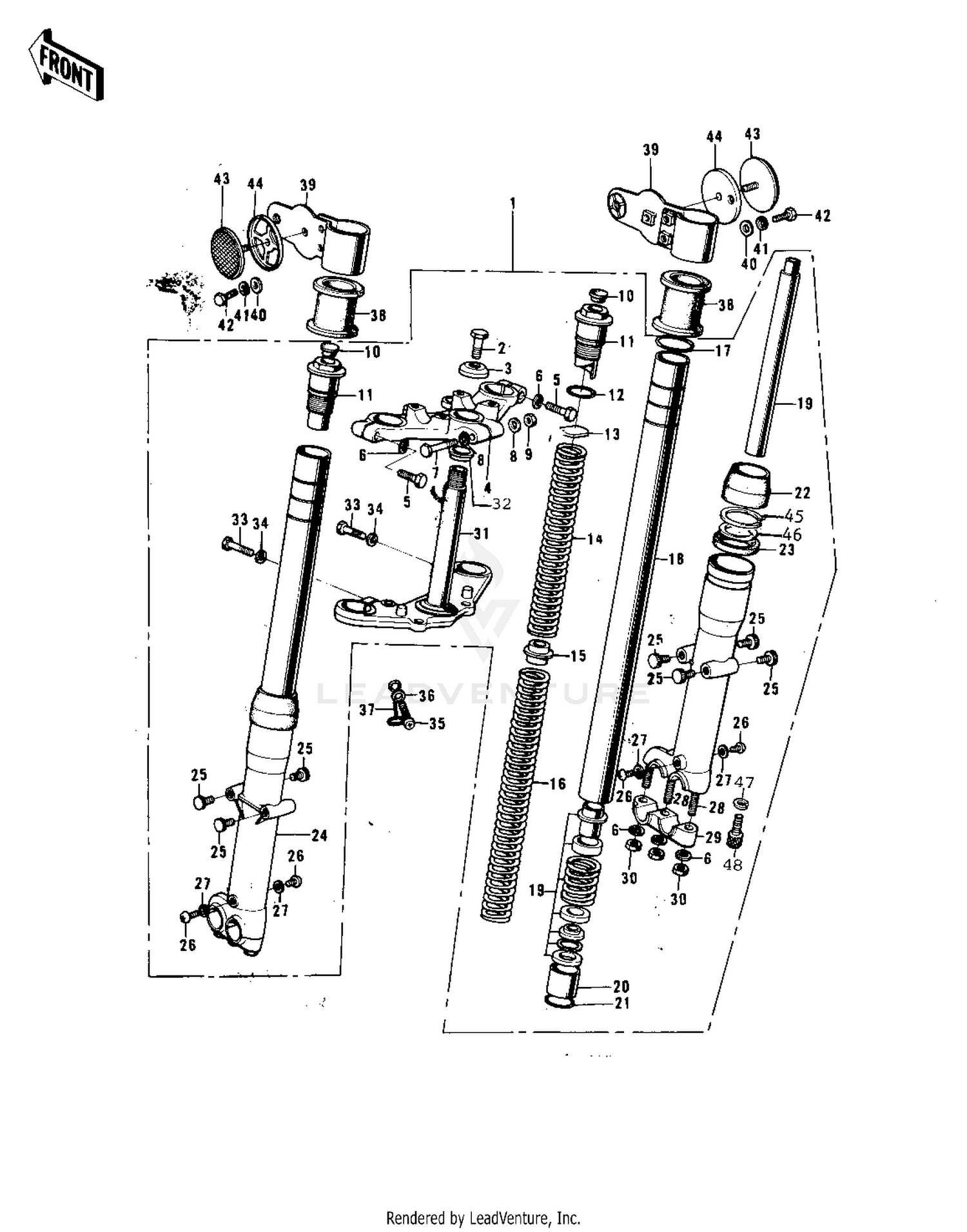

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK-FRONT
44001-102
|
$724.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT STRNG STEM HEAD
44041-007
|
$15.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER STRNG STEM HD
44043-016
|
$10.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
HEAD-STEERING STEM
44039-049
|
$133.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT-STEERING STEM HD
44041-044
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-STEERING STEM HD
44041-042
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP-FORK TOP BOLT
44062-004
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-FORK TOP
44041-046
|
$41.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
'O' RING INNER TUBE
44046-014
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-FORK SPRG SEAT
44029-016
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING-FORK,SHORT
44026-035
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE-FORK SPRING
44028-019
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING-FORK,LONG
44026-034
|
$23.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
44044-011
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE-FORK INNER
44013-027
|
$138.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
CYLINDER-FORK
44022-005
|
$112.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
PISTON-FORK
44018-004
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP
44044-010
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SHIELD FORK
44010-006
|
$42.24 | ||
|
Unavailable |
|||
|
#23
OIL SEAL
92049-1049
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUBE,LH,FORK OUTER
44005-034-80
|
$241.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP
44062-002
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET,FORK DRAIN PLUG
44045-002
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT-STUD,8X30
172G0830
Superseded by 172BA0830
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER-FRONT AXLE
44063-002
|
$22.17 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT-HEX-SMALL,8MM
311B0800
Superseded by 317AA0800
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#31
STEM-STEERING
44037-054
|
$154.18 | ||
|
Available to order. Add to View Price |
|||
|
#32
CONE LOWER BEARING
92047-004
|
$16.37 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT HEX HEAD 10X32
113B1032
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT-UPSET,6X10
112G0610
Superseded by 112BA0610
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP-CABLE
92037-046
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER RUBBER
92075-064
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET-HEAD LAMP,BLK
23064-011-21
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Unavailable |
|||
|
#41
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#43
REFLECTOR-REFLEX,FRNT
28012-006
|
$23.00 | ||
|
Available to order. Add to View Price |
|||
|
#44
DAMPER RUBBER
92075-137
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#45
CIRCLIP-OIL SEAL FIT
44044-014
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER-OIL SEAL FIT
44043-045
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#47
GASKET FORK CYL BOLT
44045-030
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT FORK CYLINDER
44041-027
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
