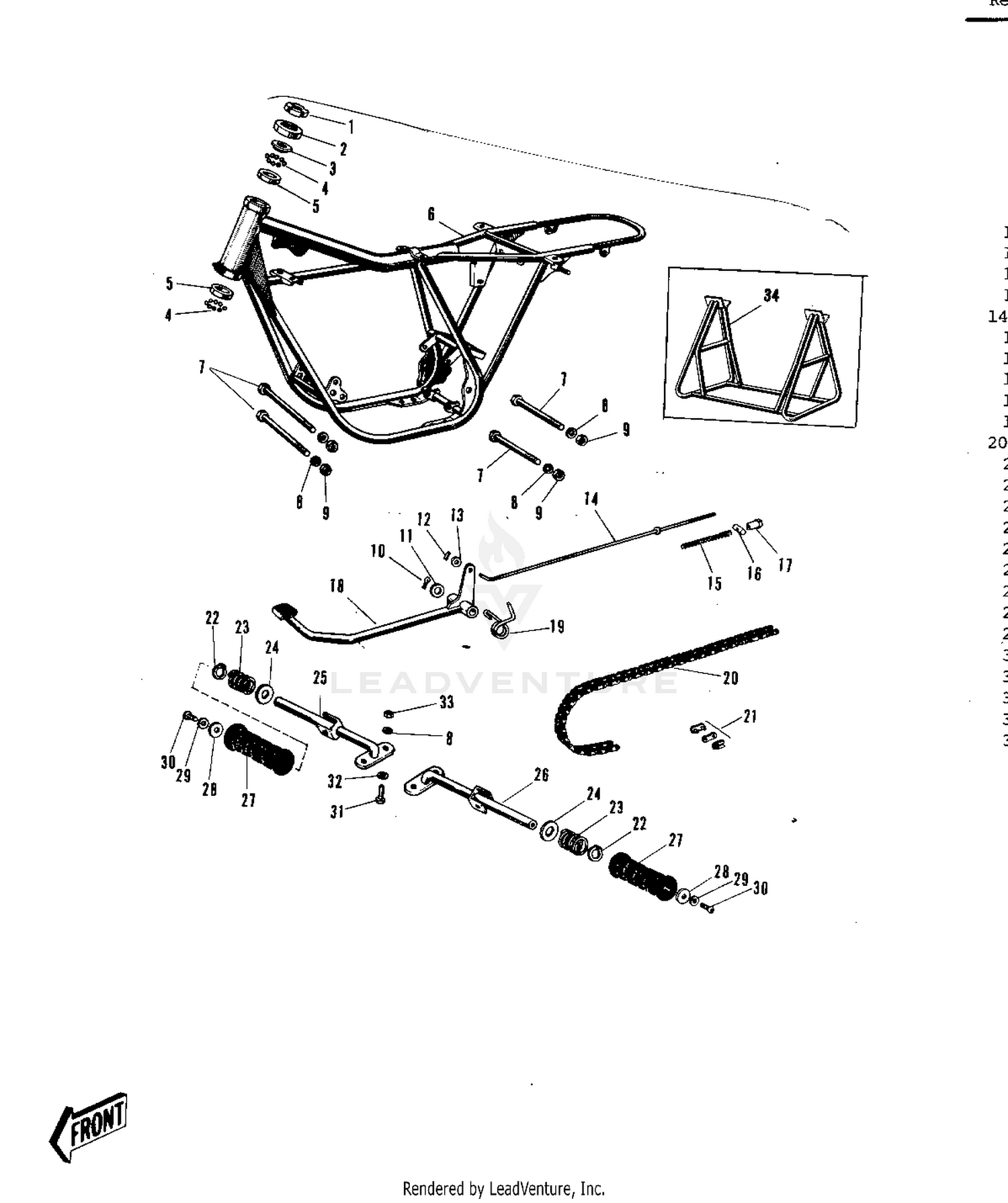

Frame/frame Fittings Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT STEERING STEM LCK
92090-006
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP STEERING STEM
46098-004
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONE UPPER BEARING
92047-005
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALL-STEEL,3/16
600A0600
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#5
RACE BEARING
92048-004
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
FRAME
32002-030
|
$319.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT,FLANGED,10X115
92001-1603
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-HEX-FINE
314B1000
Superseded by 314AA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN-COTTER,3.0X30
550D3030
Superseded by 550AA3030
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER BRAKE PEDAL
92022-085
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#
BRAKE ROD ASSY
43010-5003
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING,BRAKE ROD
43012-001
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN,BRAKE ROD
92043-039
Superseded by 92043-0147
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT,BRAKE ROD
92015-042
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
PEDAL-BRAKE
43001-045
|
$23.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING BRAKE PEDAL
43005-007
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#
CHAIN,DRIVE,EK428SH-R
695Z43118
Superseded by 92057-1341
|
$95.86 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT-CHAIN
92058-1015
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP-TYPE-C,16MM
480J1600
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING FOOTREST PEG
34006-002
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER FOLDING PEG
92022-049
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAR FOOTREST R.H
34003-019
|
$26.71 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAR FOOTREST L.H
34003-018
|
$25.43 | ||
|
Available to order. Add to View Price |
|||
|
#27
RUBBER FOOTREST
92076-006
|
$18.26 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER,7X16X1.2
92022-024
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-PAN-CROS,6X20
220B0620
Superseded by 220AA0620
|
$5.63 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT-UPSET,10X20
112B1020
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER-PLAIN-SMALL,10MM
410B1000
Superseded by 410AA1000
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT 10MM
312B1000
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#34
STAND PORTABLE
34033-008
|
$48.48 | ||
|
Available to order. Add to View Price |
|||
